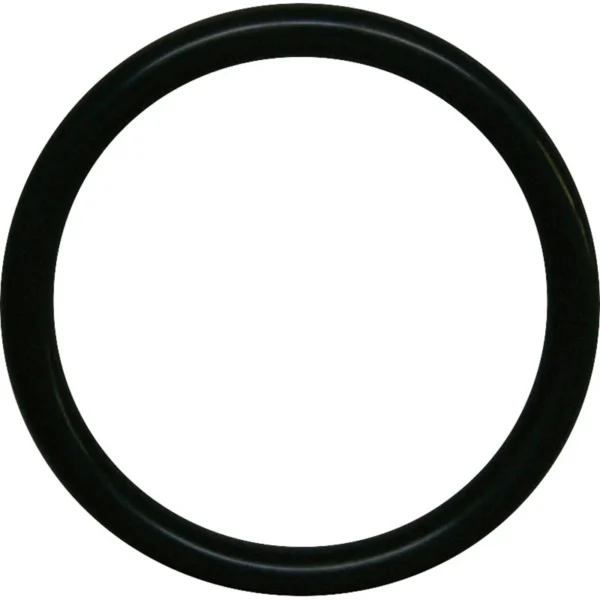

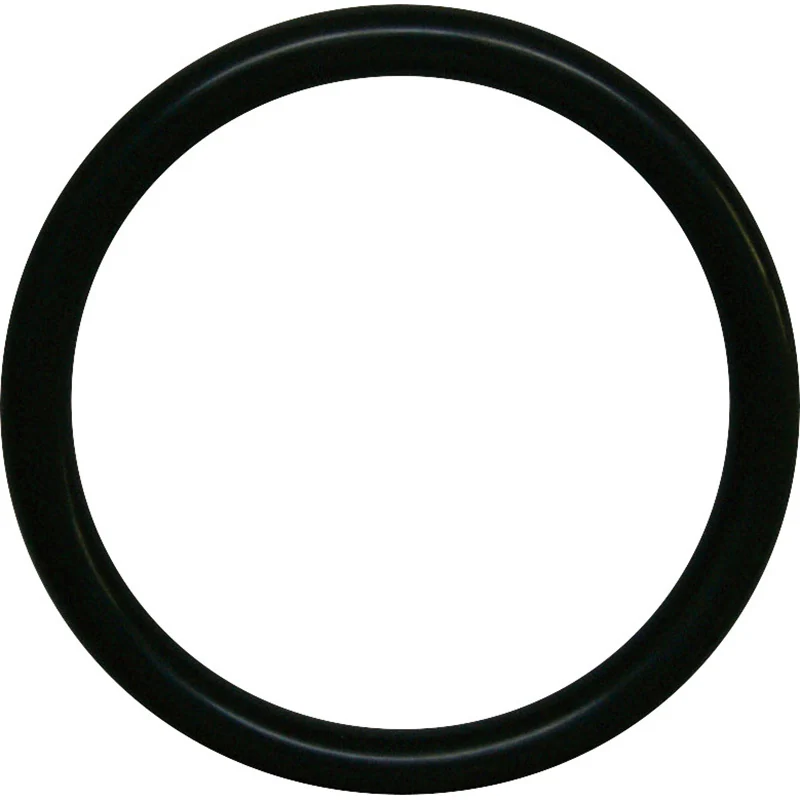

Description
Material: NBR (Nitrile Rubber)
Wire Diameter/Tolerance (mm): 5.7 (plus or minus 0.13)
Type: G Shape Fixed Type
Inner Diameter (mm): 269.3
Nominal Size: 270
Applications: Oil seals, gaskets, oil-resistant hoses, conveyor belts, printing rolls, spinning top rolls, and other oil-resistant products.
Hardness: 70
Outer Diameter (mm): 280.7
Pressure Resistance (MPa): 7
Functions: Oil resistance, abrasion resistance, aging resistance
Heat Resistance Temperature (Celsius degrees): 100
Compliance with RoHS Directive (10 substances): Yes
Inner Diameter Tolerance (mm): 2.01
Excellent oil resistance, abrasion resistance, and aging resistance.
