Description

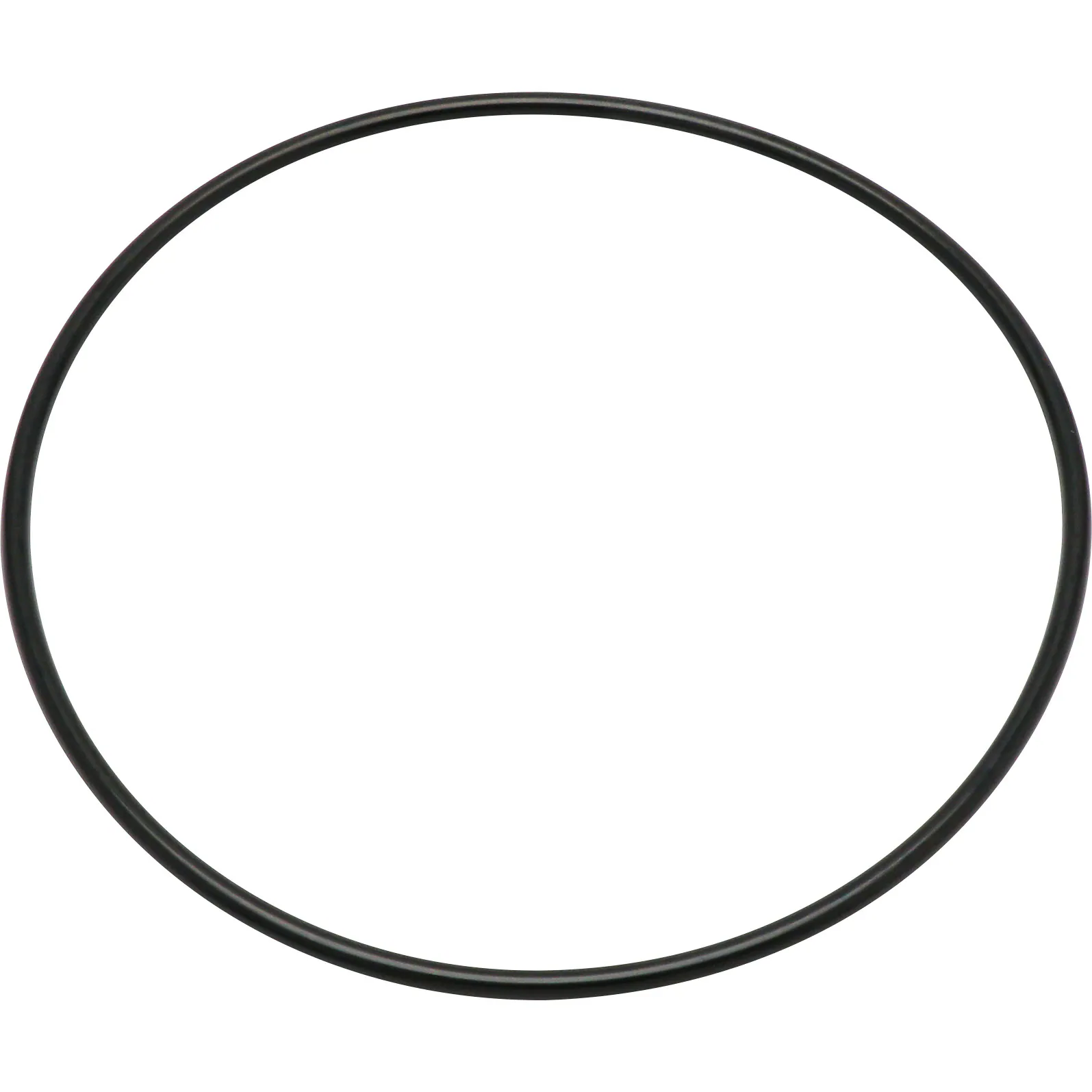

Material: NBR (Nitrile Rubber)
Wire Diameter/Tolerance (mm): 5.7 (plus or minus 0.13)
Type: G Shape Fixed Type
Inner Diameter (mm): 199.3
Nominal Size: 200
Applications: Oil seals, gaskets, oil-resistant hoses, conveyor belts, printing rolls, spinning top rolls, and other oil-resistant products.
Hardness: 70
Outer Diameter (mm): 210.7
Pressure Resistance (MPa): 7
Functions: Oil resistance, wear resistance, aging resistance
Heat Resistance Temperature (Celsius degrees): 100
RoHS Directive (Compliance with 10 Substances): Yes
Inner Diameter Tolerance (mm): 1.55
Excellent oil resistance, wear resistance, and aging resistance.
