Description
Usage: Ideal for drawers in desks, kitchens, storage furniture, etc.
Specification: Detachable type
Type: Slide

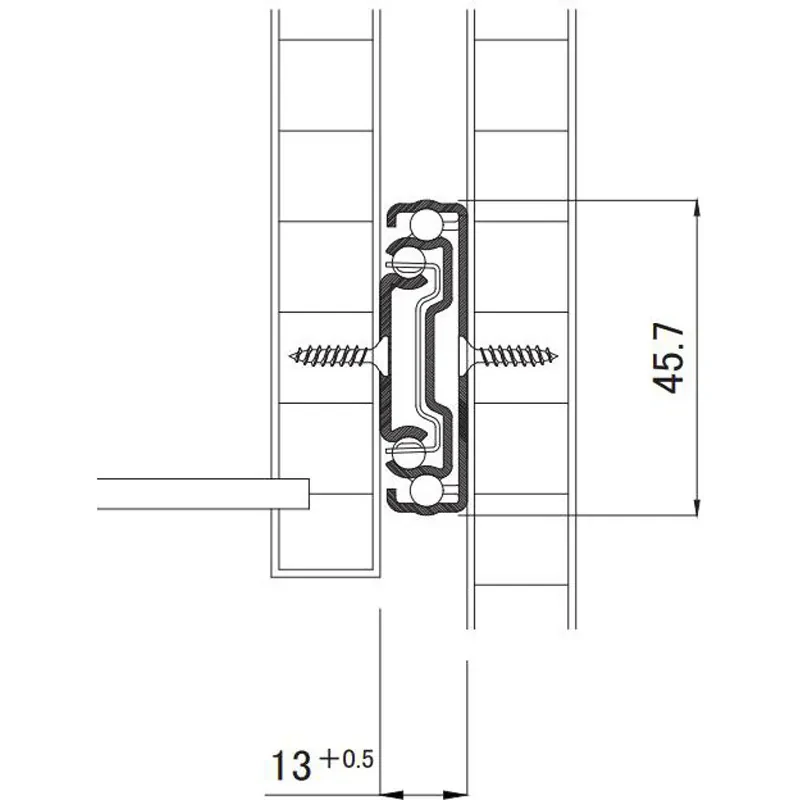

Mounting Method: Side-mounted, screw-fixed
Number of Steps: 3 steps

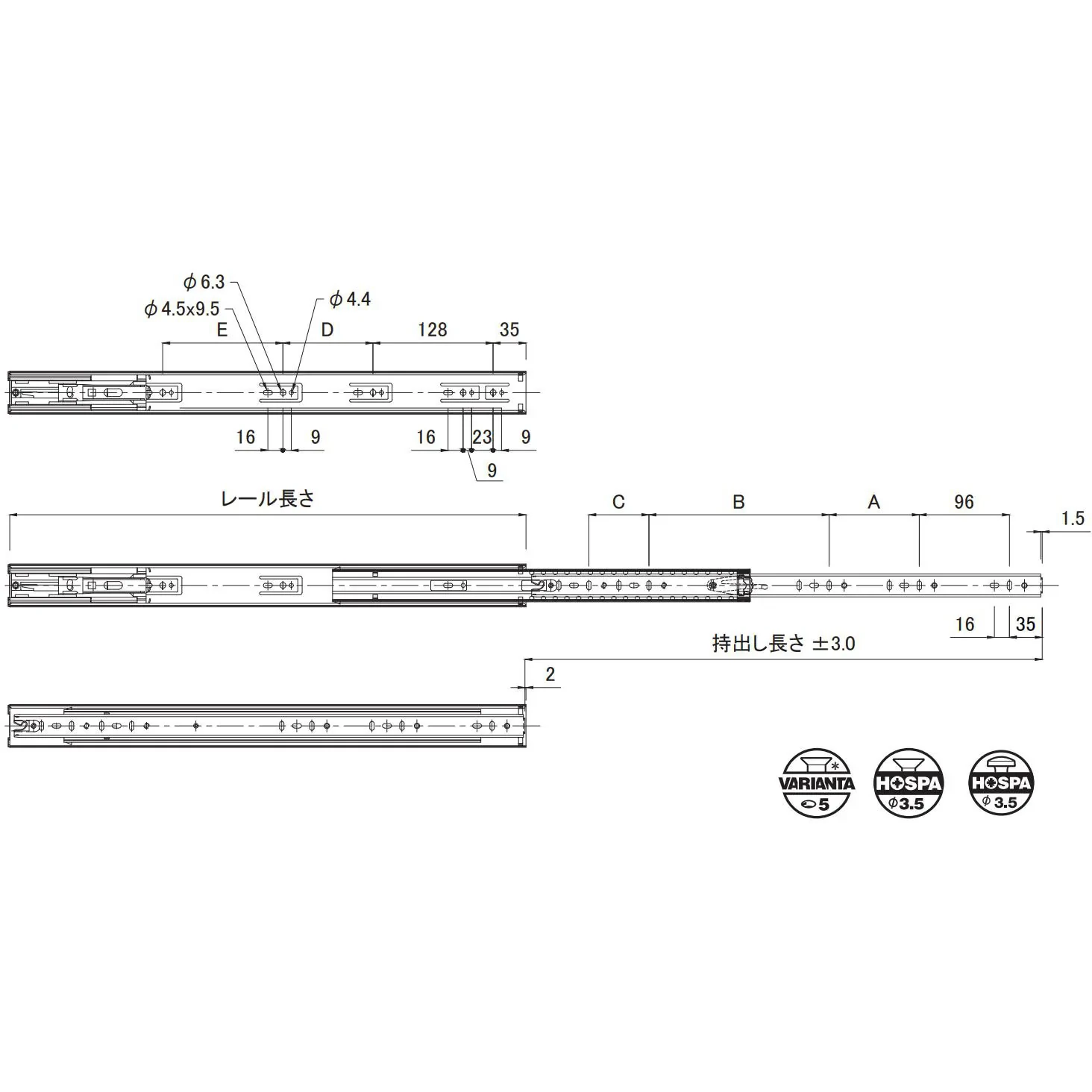

Dimension A (mm): 96
Load Capacity (kg): 30
Dimension D (mm): 96
Dimension E (mm): 96
Dimension B (mm): 128
Dimension C (mm): 96
Material (Rail): Steel
Rail Length (mm): 500
Mounting Screws: Not included
Extension Length (mm): 500

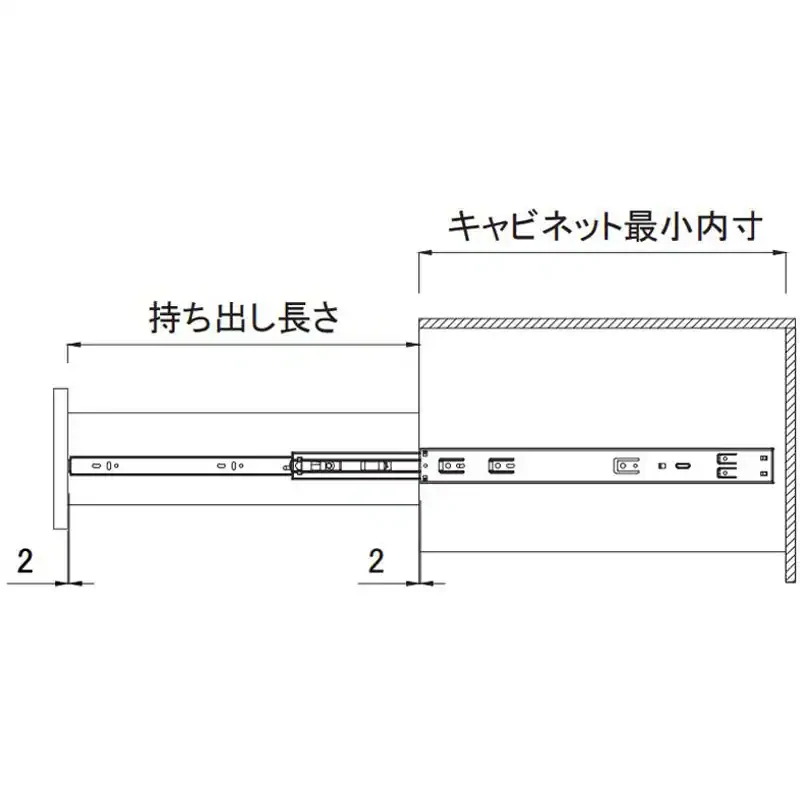

Mounting Depth (mm): [Minimum] Rail length + 4

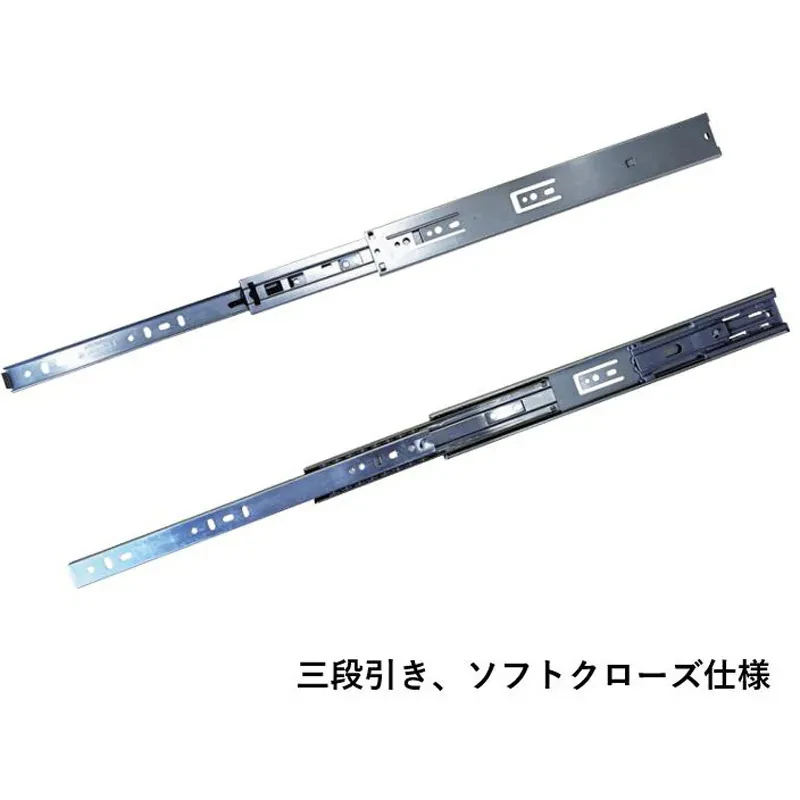

The Slide Rail (drawer rail) with a Soft Close damper allows the drawer to be fully pulled out 100%.

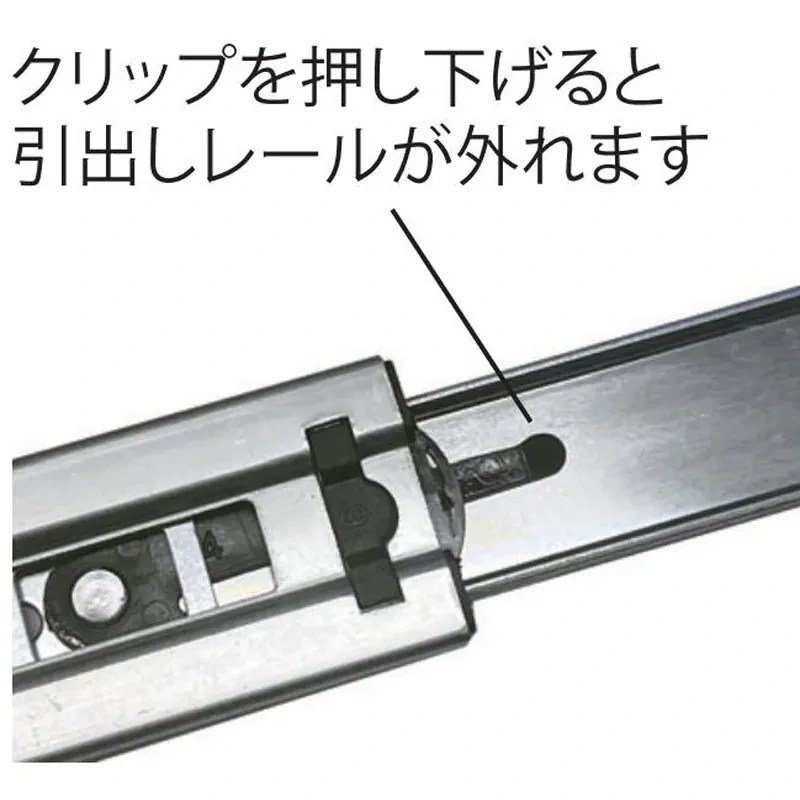

The drawer rail can be easily detached with a single touch! Pressing down the clip will release the drawer rail.
