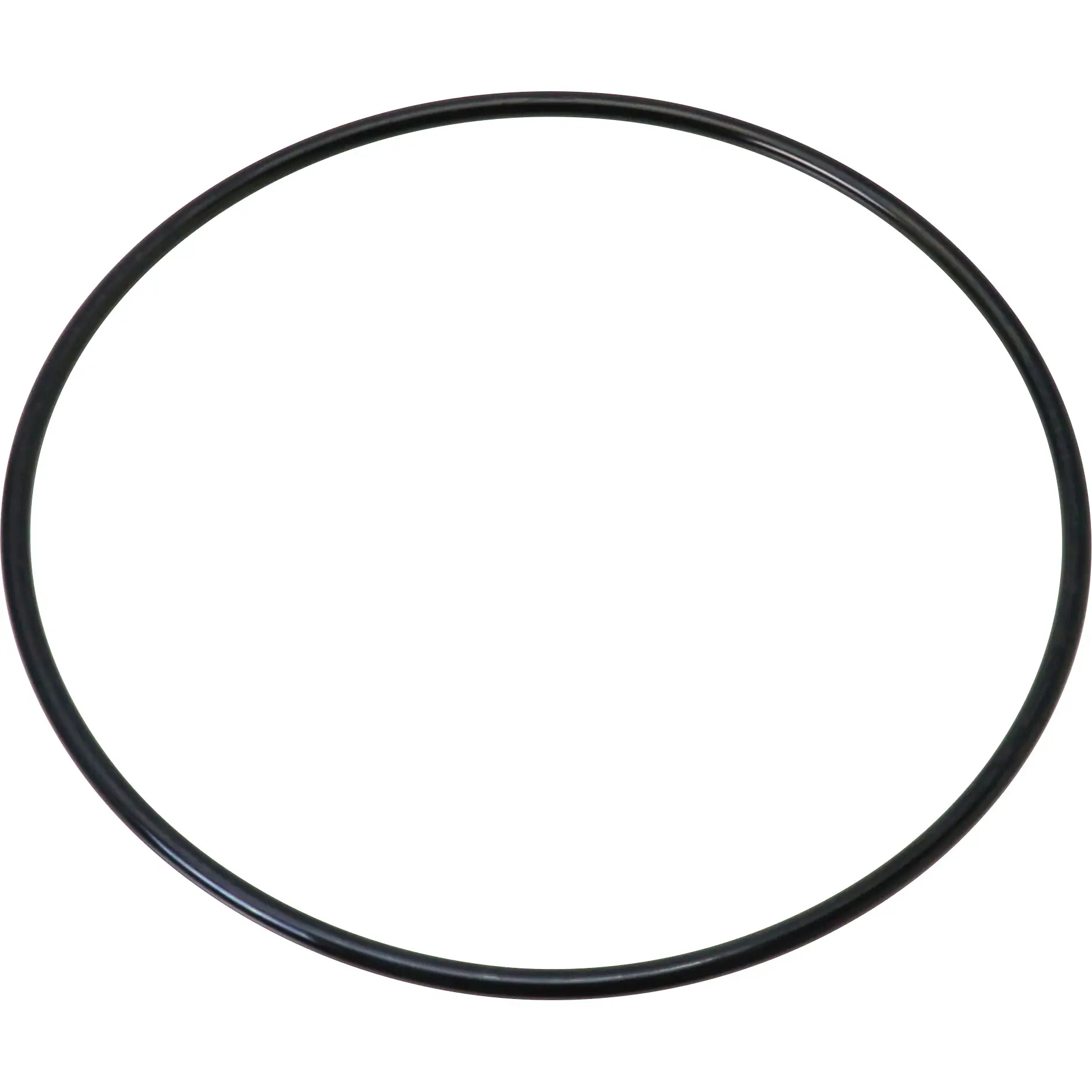

Description
Material: NBR (Nitrile Rubber)
Wire diameter/tolerance (mm): 5.7 (plus or minus 0.13)
Type: G shape fixed type
Inner diameter (mm): 189.3
Nominal size: 190
Application: Oil seals, gaskets, oil-resistant hoses, conveyor belts, printing rolls, spinning top rolls, and other oil-resistant products.
Hardness: 70
Outer diameter (mm): 200.7
Pressure resistance (MPa): 7
Functions: Oil resistance, wear resistance, aging resistance
Heat resistance temperature (Celsius degrees): 100
RoHS directive (compliance with 10 substances): Compliant
Inner diameter tolerance (mm): 1.47
Excellent oil resistance, wear resistance, and aging resistance.
