LAMP(Sugatsune) Slide Rail Soft Close FA15.30 3-Section(Ball Bearing Rail) > 432.02.433

¥1,678

999 in stock

SKU: r225454262237 Category:

Description

Usage: Ideal for drawers in desks, kitchens, storage furniture, etc.
Specifications: Detachable type
Type: Slide

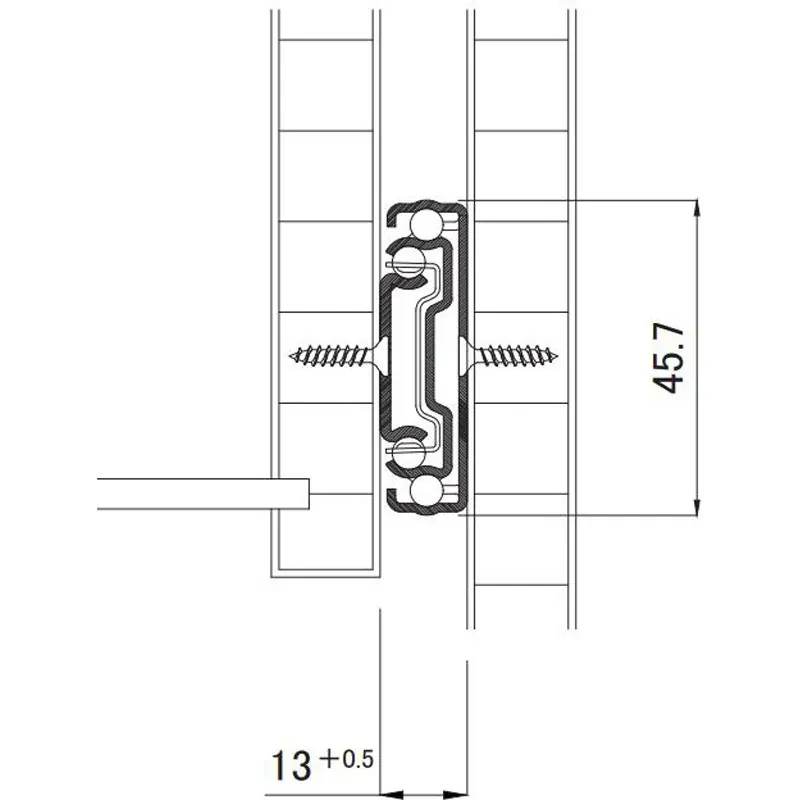

Mounting method: Side-mounted, screw-fixed
Number of levels: 3 levels

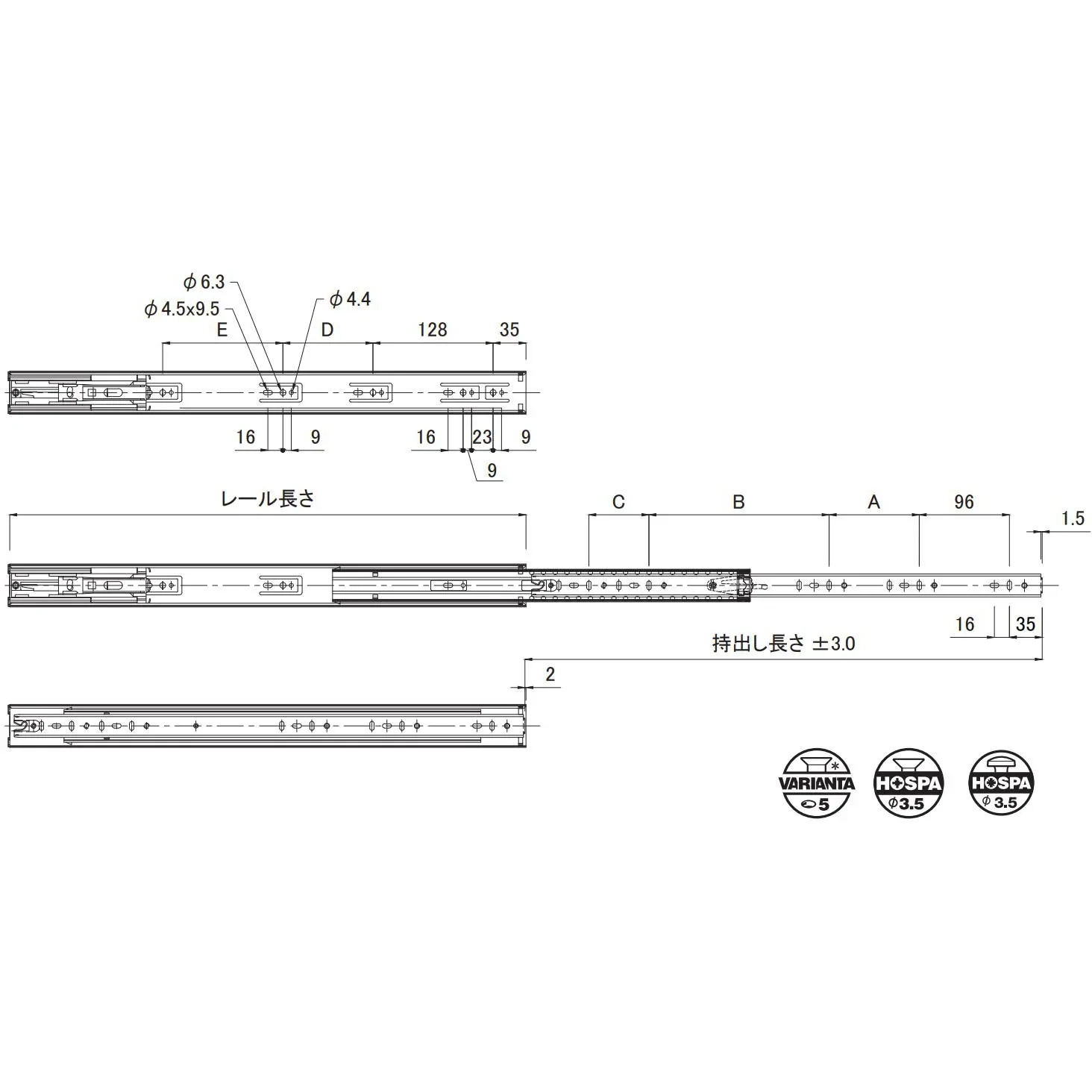

Dimension A (mm): 96
Weight capacity (kg): 25
Dimension D (mm): 96
Dimension E (mm): –
Dimension B (mm): 128
Dimension C (mm): –
Material (rail): Steel
Rail length (mm): 400
Mounting screws: Not included
Extension length (mm): 400

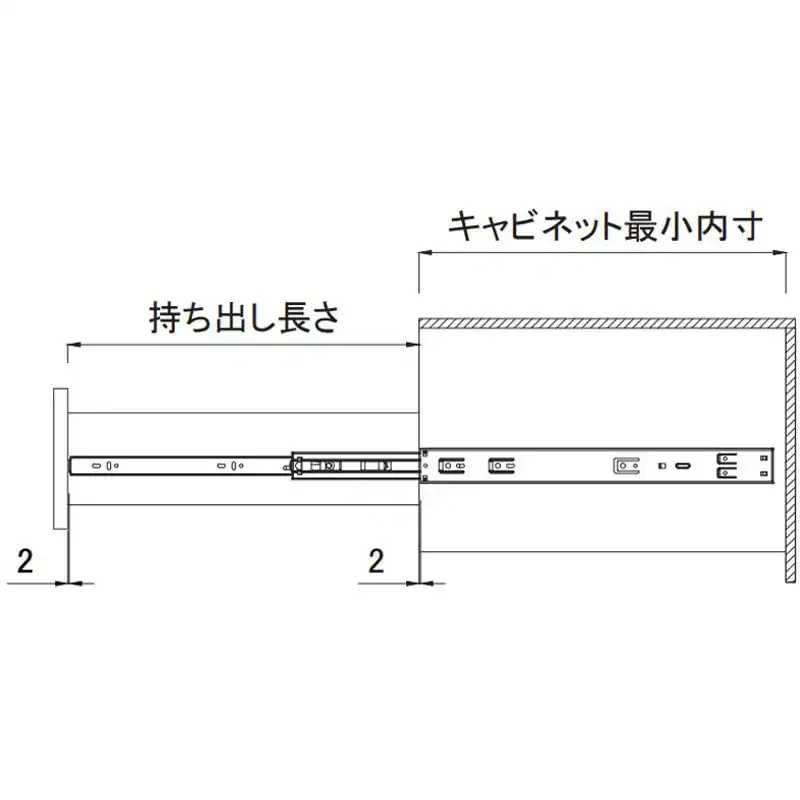

Mounting depth (mm): [Minimum] Rail length + 4

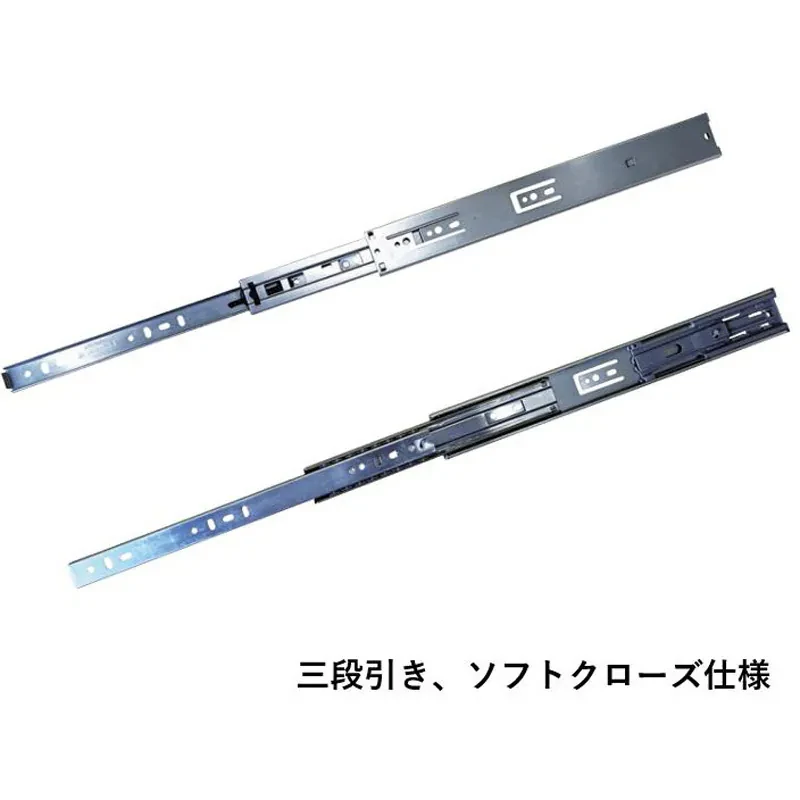

Drawer can be fully extended with a Soft Close damper built into the Slide Rail (drawer rail).

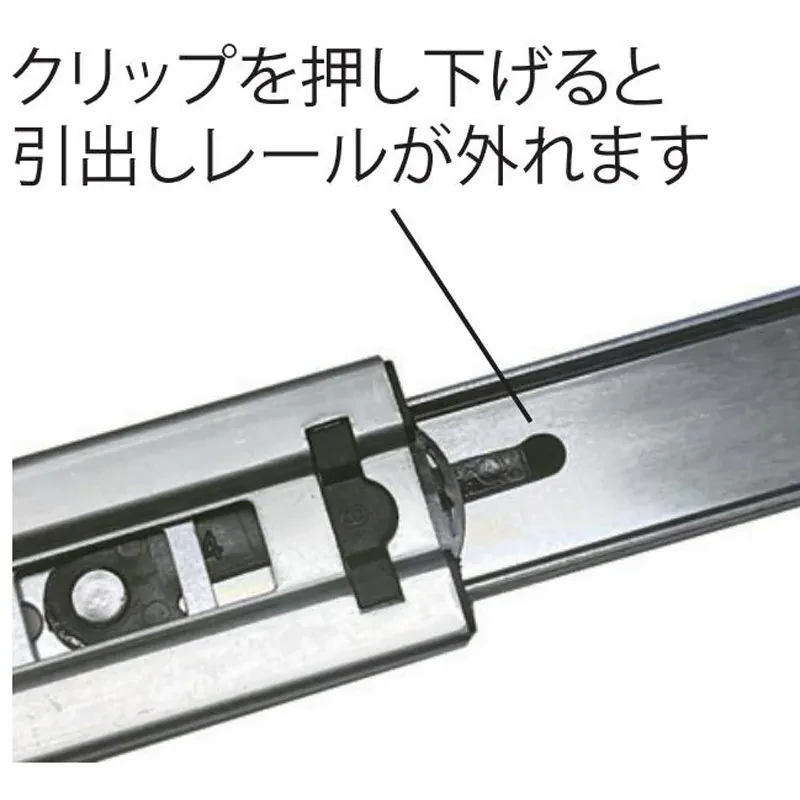

Drawer rails can be easily removed with a one-touch mechanism! Pressing down the clip allows the drawer rail to be detached.
