Description
Material: NBR (Nitrile Rubber)

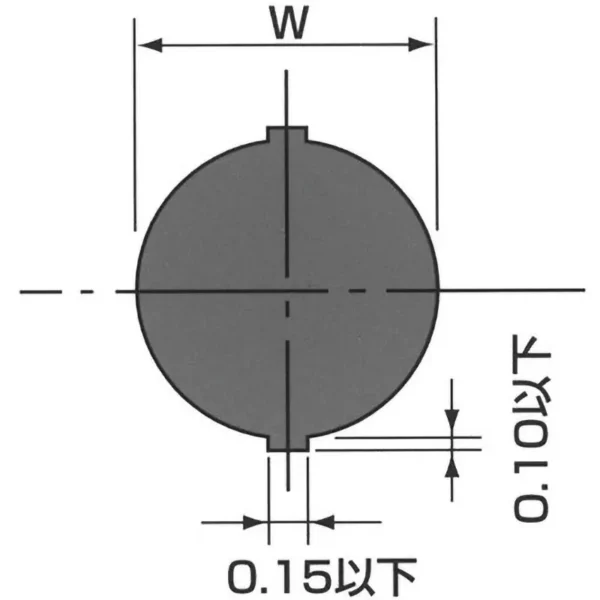

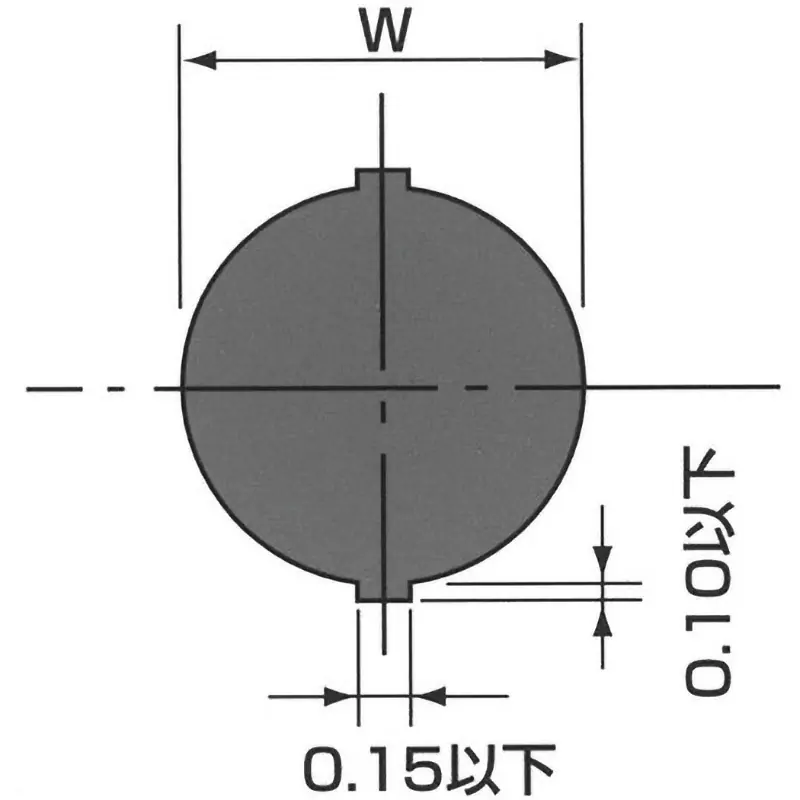

Wire diameter/tolerance (mm): 5.7 (plus or minus 0.13)
Type: G shape fixed type

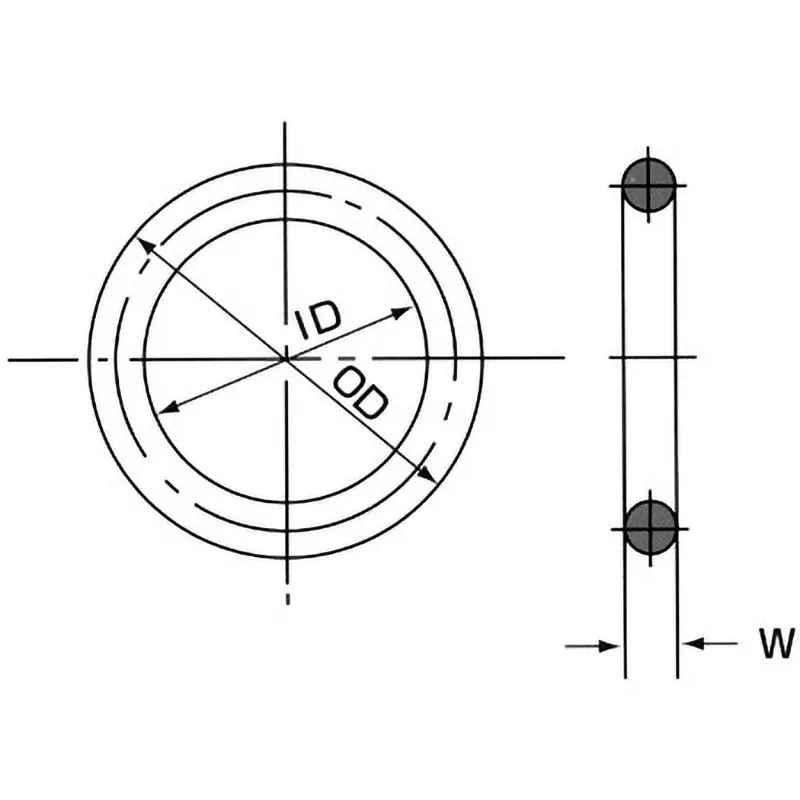

Inner diameter (mm): 154.3
Nominal size: 155
Applications: Oil seals, gaskets, oil-resistant hoses, conveyor belts, printing rolls, spinning top rolls, and other oil-resistant products.
Hardness: 70
Outer diameter (mm): 165.7
Pressure resistance (MPa): 7
Functions: Oil resistance, abrasion resistance, aging resistance
Heat resistance temperature (Celsius degrees): 100
Compliance with RoHS directive (10 substances): Yes
Inner diameter tolerance (mm): 1.23
Excellent oil resistance, abrasion resistance, and aging resistance.
