Description

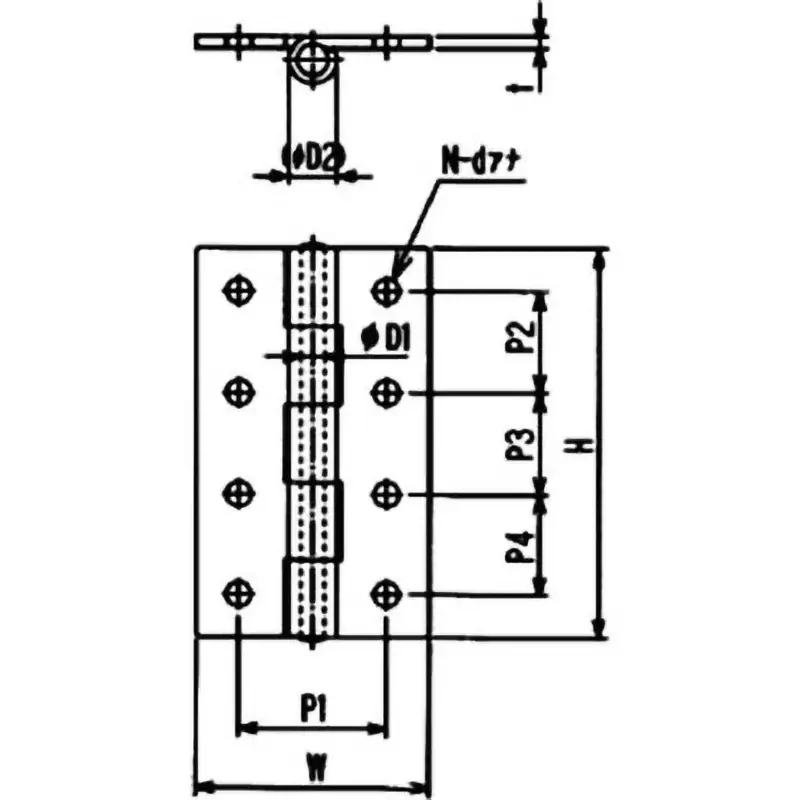

Length (mm): 100
Width (mm): 60
Dimension t (mm): 3.0
Dimension D2 (mm): 12.3
Number of screw holes: 8
Dimension d (mm): 6.4
Load capacity (kg): 30
Dimension P1 (mm): 38
Dimension P2 (mm): 26
Dimension P3 (mm): 26
Mass (g): 190
Applications: Measuring instruments, Communication devices, Machine tools, For small doors
TRUSCO product number: 279-5931
Material/Finish: Stainless Steel (SUS304) / Mirror Buff Polished
Dimension D1 (mm): 6
Mounting: with Holes
Number of pipes: 5
Dimension P4 (mm): 26
Stainless Steel material offers excellent corrosion resistance.
