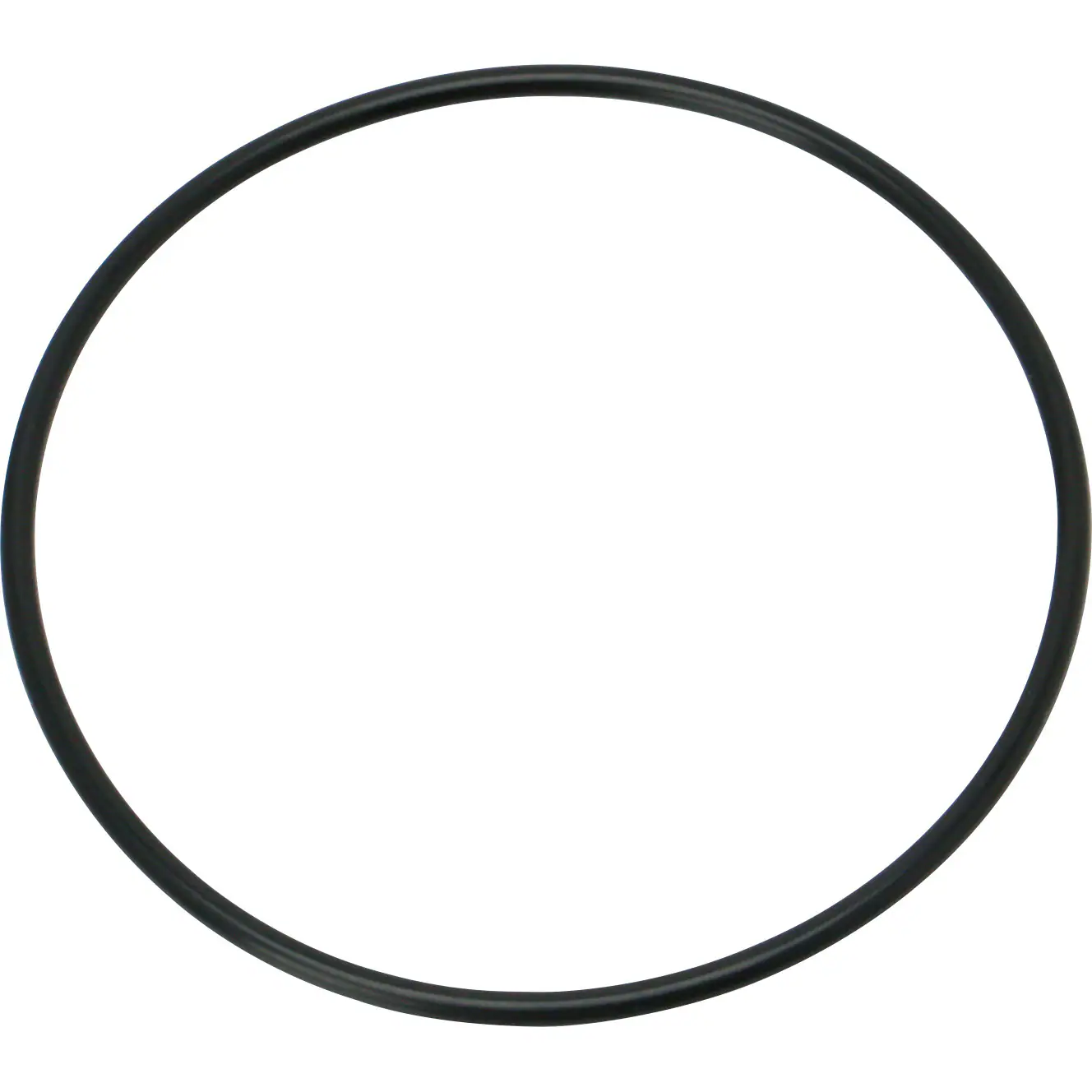

Description
Material: NBR (Nitrile Rubber)

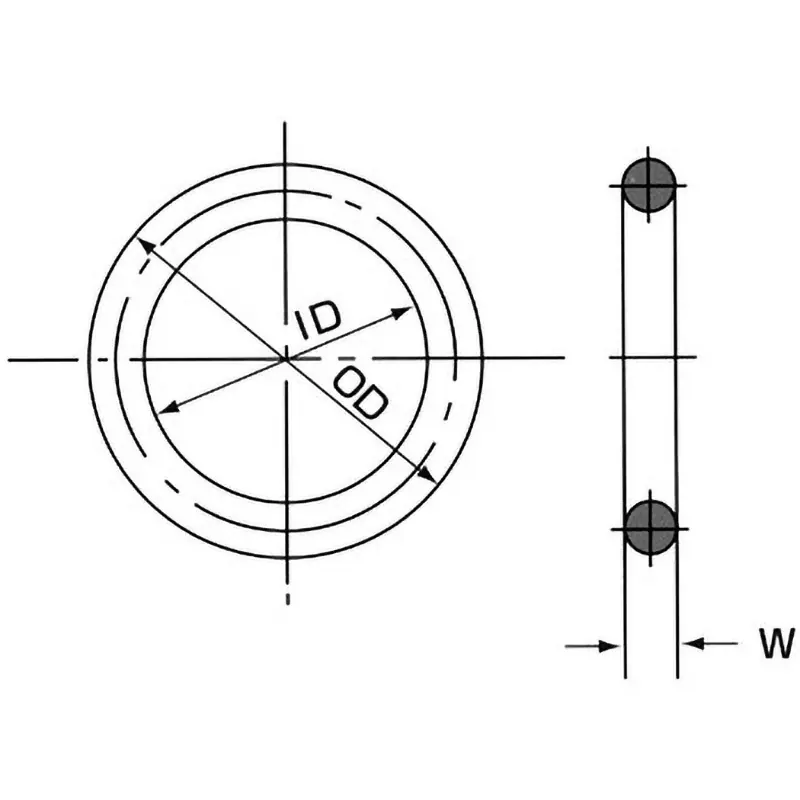

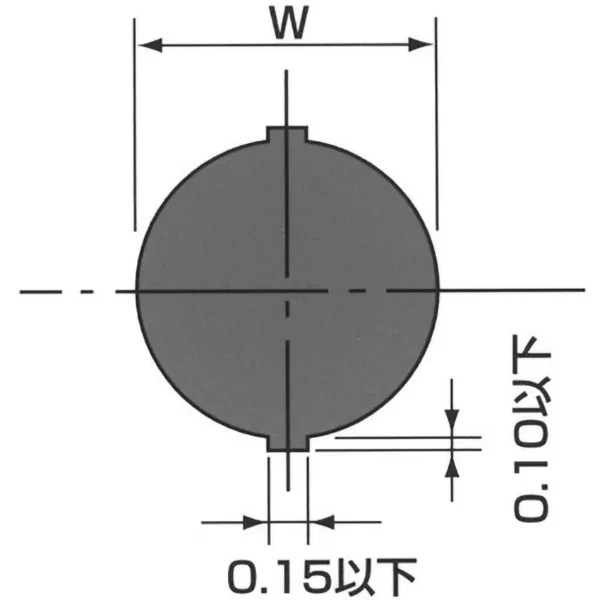

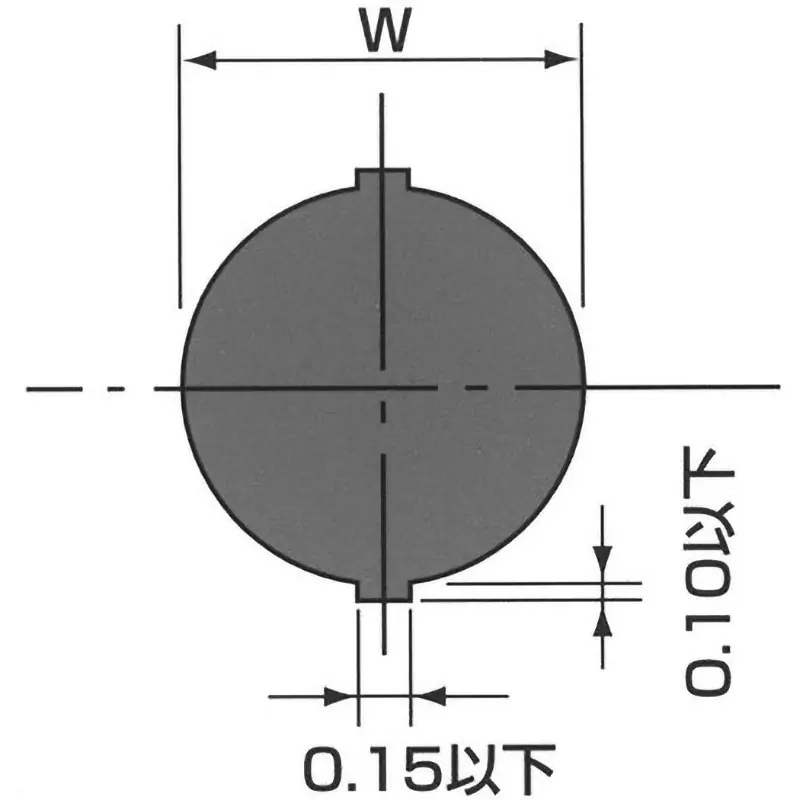

Wire diameter/Tolerance (mm): 3.1 (plus or minus 0.10)
Type: G shape fixed type
Inner diameter (mm): 89.4
Nominal size: 90
Applications: Oil seals, gaskets, oil-resistant hoses, conveyor belts, printing rolls, top rolls for spinning, and other oil-resistant products.
Hardness: 70
Outer diameter (mm): 95.6
Pressure resistance (MPa): 7
Functions: Oil resistance, wear resistance, aging resistance
Heat resistance temperature (Celsius degrees): 100
RoHS directive (10 substances compliance): Compliant
Inner diameter tolerance (mm): 0.77
Excellent oil resistance, wear resistance, and aging resistance.
