Description
Material: NBR (Nitrile Rubber)
Wire Diameter/Tolerance (mm): 3.1 (plus or minus 0.10)

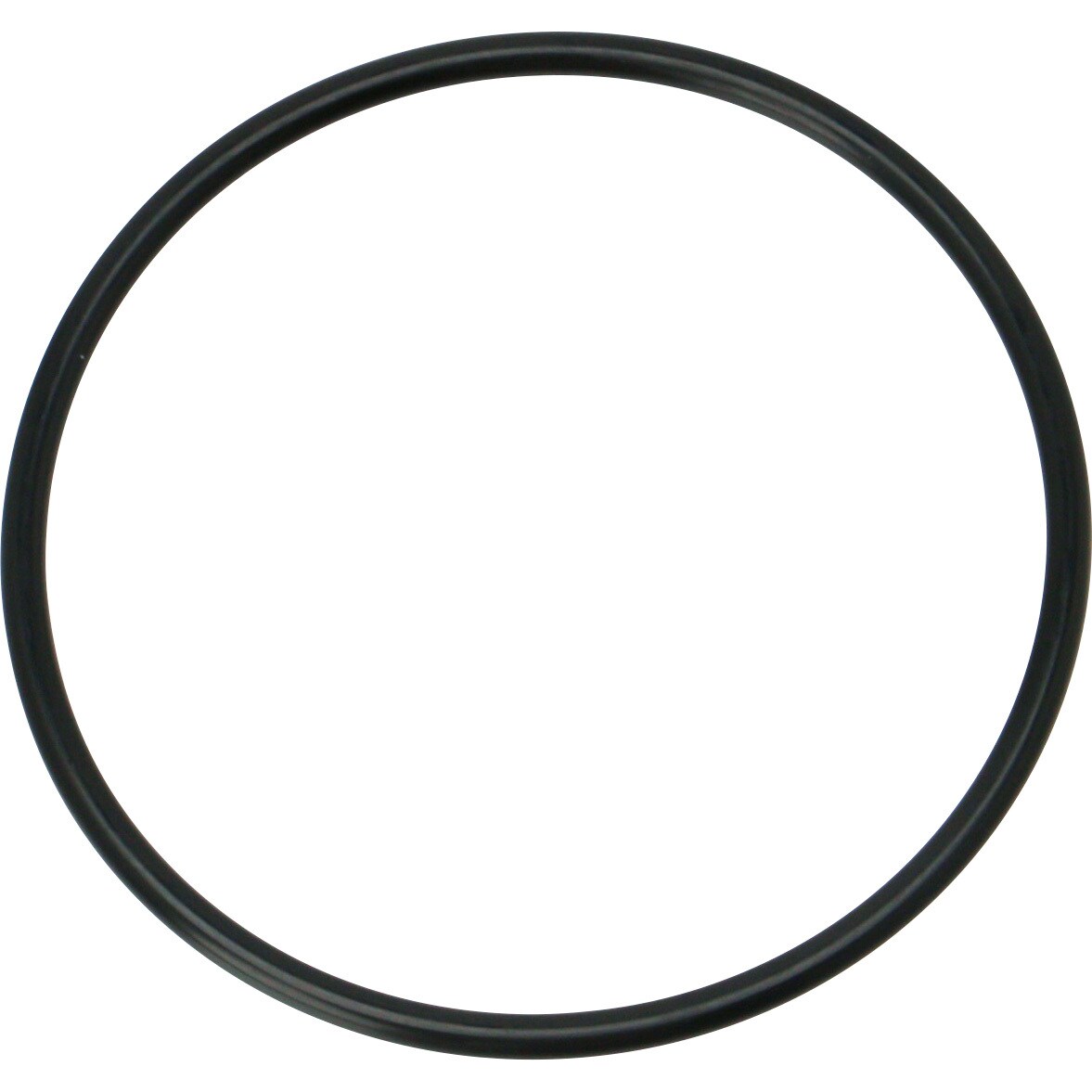

Type: G Shape Fixed Type
Inner Diameter (mm): 64.4
Nominal: 65
Applications: Oil seals, gaskets, oil-resistant hoses, conveyor belts, printing rolls, spinning top rolls, and other oil-resistant products.
Hardness: 70
Outer Diameter (mm): 70.6
Pressure Resistance (MPa): 7
Functions: Oil resistance, wear resistance, aging resistance
Heat Resistance Temperature (Celsius degrees): 100
RoHS Directive (Compliance with 10 substances): Compliant
Inner Diameter Tolerance (mm): 0.57
Excellent oil resistance, wear resistance, and aging resistance.
