Description
Quantity: 1 piece
Part Number: GANTE-TK Gray
Material: (Runner) Nylon, (Oil Damper) Silicone Oil
Color: Gray
Type: Oil Damper
Material: (Case) ABS
Cabinet Weight (kg): Recommended: ~30 (single-side use)
Compatible Width (mm): Recommended Cabinet: ~900 / single-side use
Stroke Amount (mm): Runner: 64.3
Recommended Screw: A Truss Tapping 3
Material (Spring): SWP-B
RoHS Directive (10 substances compliant): Compliant
Compatibility: Cabinet Width ~900 mm / single-side use, Weight ~30 kg (single-side use)

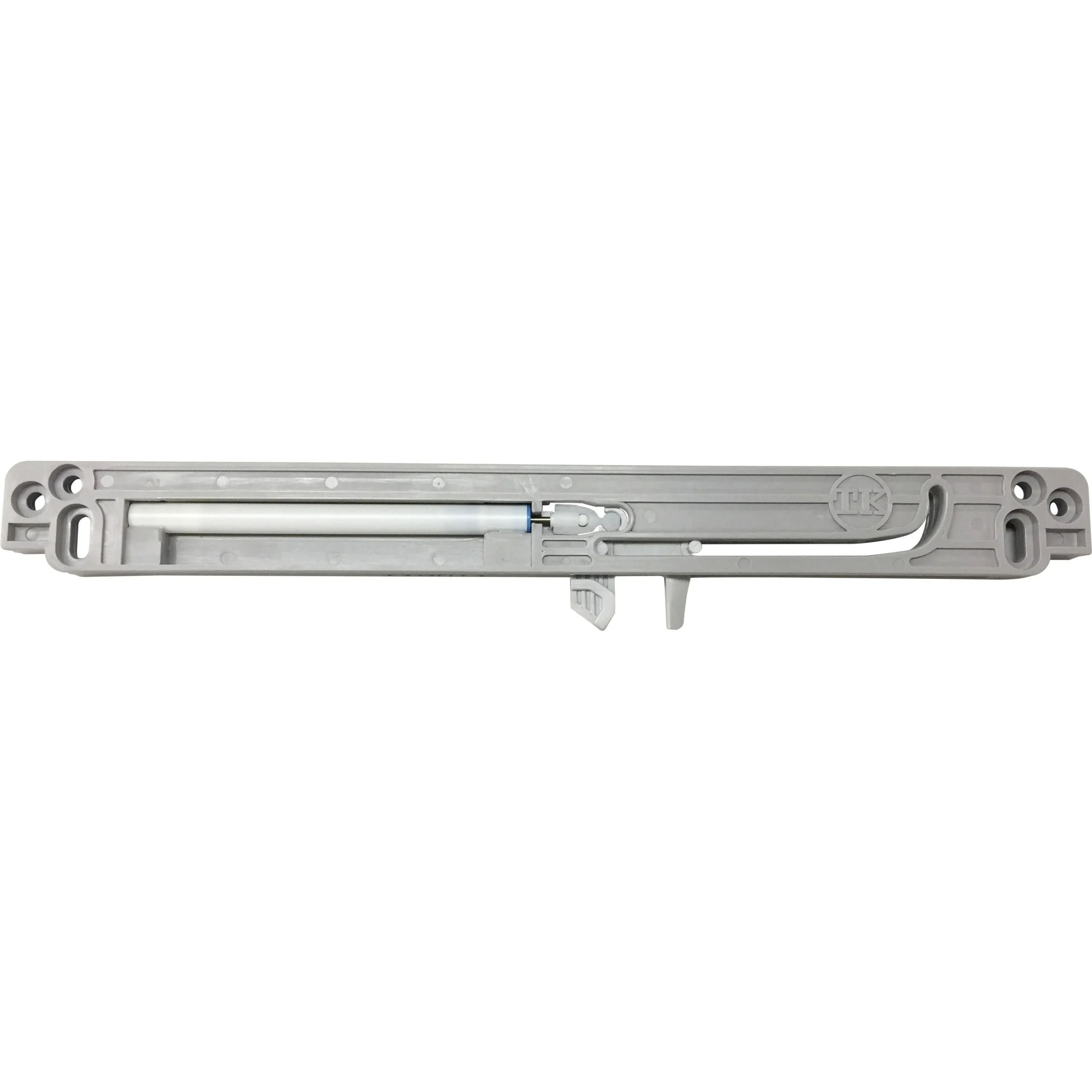

This is a damper unit that creates a soft-close mechanism by being added to drawers.
It can be easily used in combination with a damper unit and a strike, providing added value such as enhancing the feel and luxury of drawer operation.
This product is a standalone damper unit. Please use it in combination with a steel drawer strike or a wooden drawer strike.
As this product is intended for corporate customers, no instruction manual is included. Please be aware of this in advance.
It may not be usable for all drawers, so please check the installation dimensions and drawer (or cabinet) specifications before use.
For straight shapes (types without a drop at the end), there is a risk that it may not retract.
