Description

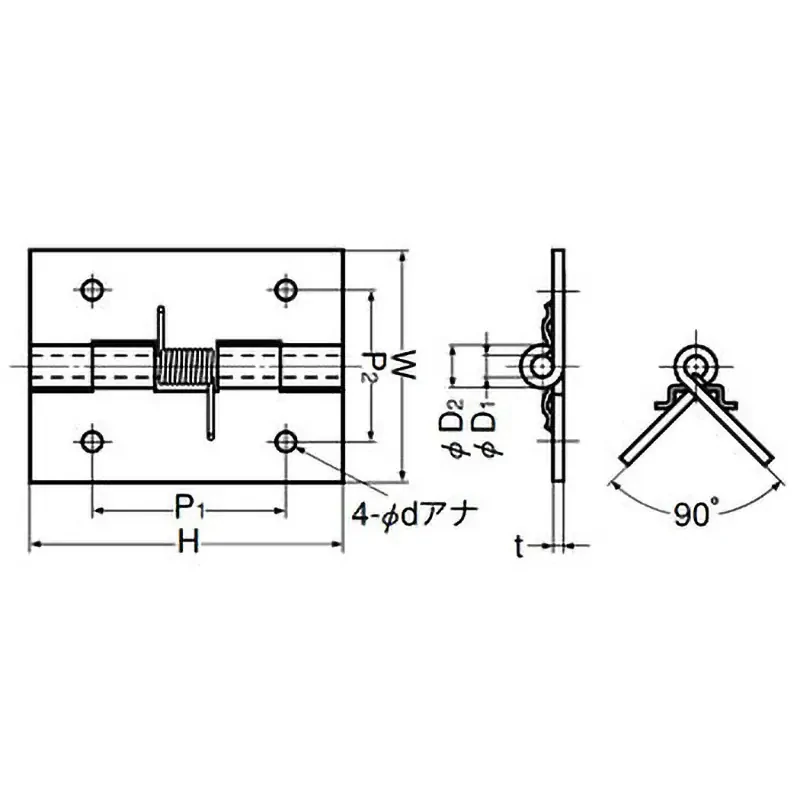

Dimension D2 (mm): 6.5
Dimension H (mm): 38
Dimension P1 (mm): 26
Dimension P2 (mm): 20
Dimension W (mm): 32
Dimension d (mm): 3.2
Dimension t (mm): 1.5
Material/Finish: Stainless Steel (SUS304) / Mirror Buff Polished
Specification: Reference Door Weight (kg): 4 (2-hinge suspension)
TRUSCO Part Number: 279-6066
Mass (g): 20
Hole Diameter (mm): 3.2
Load Capacity (per 2 pieces) (kg): 4
Spring Load (g): 1200
Number of Screw Holes: 4
