Description

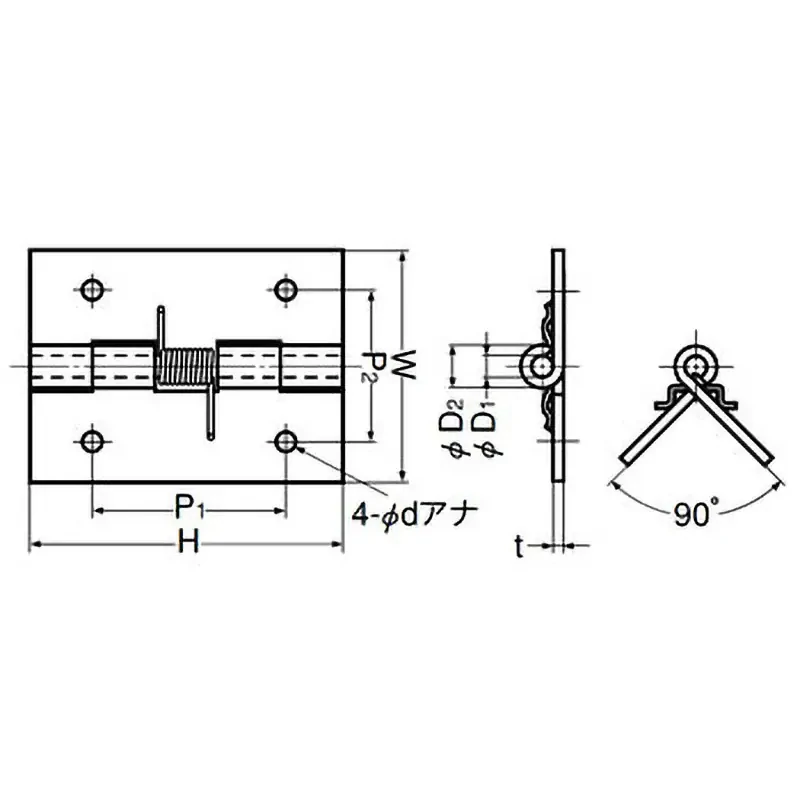

Dimension D2 (mm): 5.8
Dimension H (mm): 25
Dimension P1 (mm): 14
Dimension P2 (mm): 20
Dimension W (mm): 32
Dimension d (mm): 3.2
Dimension t (mm): 1.2
Material/Finish: Stainless Steel (SUS304)/Mirror Buff Polished
Specification: Reference Door Weight (kg): 2 (2 pieces hanging)
Trusco Part Number: 279-6058
Weight (g): 10
Hole Diameter (mm): 3.2
Load Capacity (per 2 pieces) (kg): 2
Spring Load (g): 550
Number of Screw Holes: 4
