Description

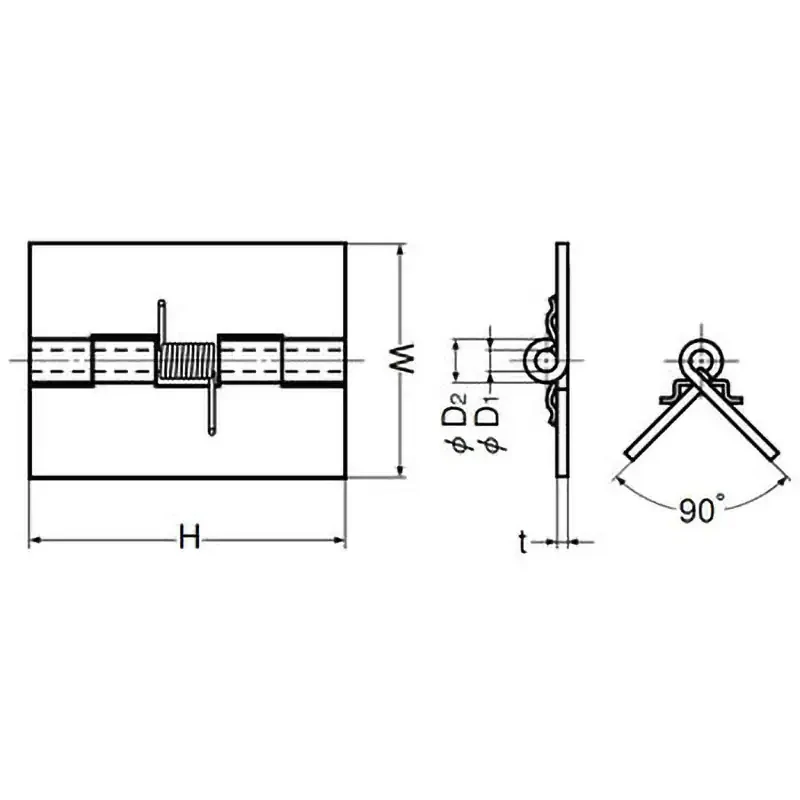

Dimension D2 (mm): 2.2
Dimension H (mm): 20
Dimension P1 (mm): –
Dimension P2 (mm): –
Dimension W (mm): 14
Dimension d (mm): –
Dimension t (mm): 0.5
Material/Finish: Stainless Steel (SUS304)/Mirror Buff Polished
Specification: Reference Door Weight (kg): 1 (for 2 panels)
Trusco Part Number: 279-6040
Weight (g): 5
Hole Diameter (mm): –
Load Capacity (per 2 units) (kg): 1
Spring Load (g): 500
Number of Screw Holes: –
