Description

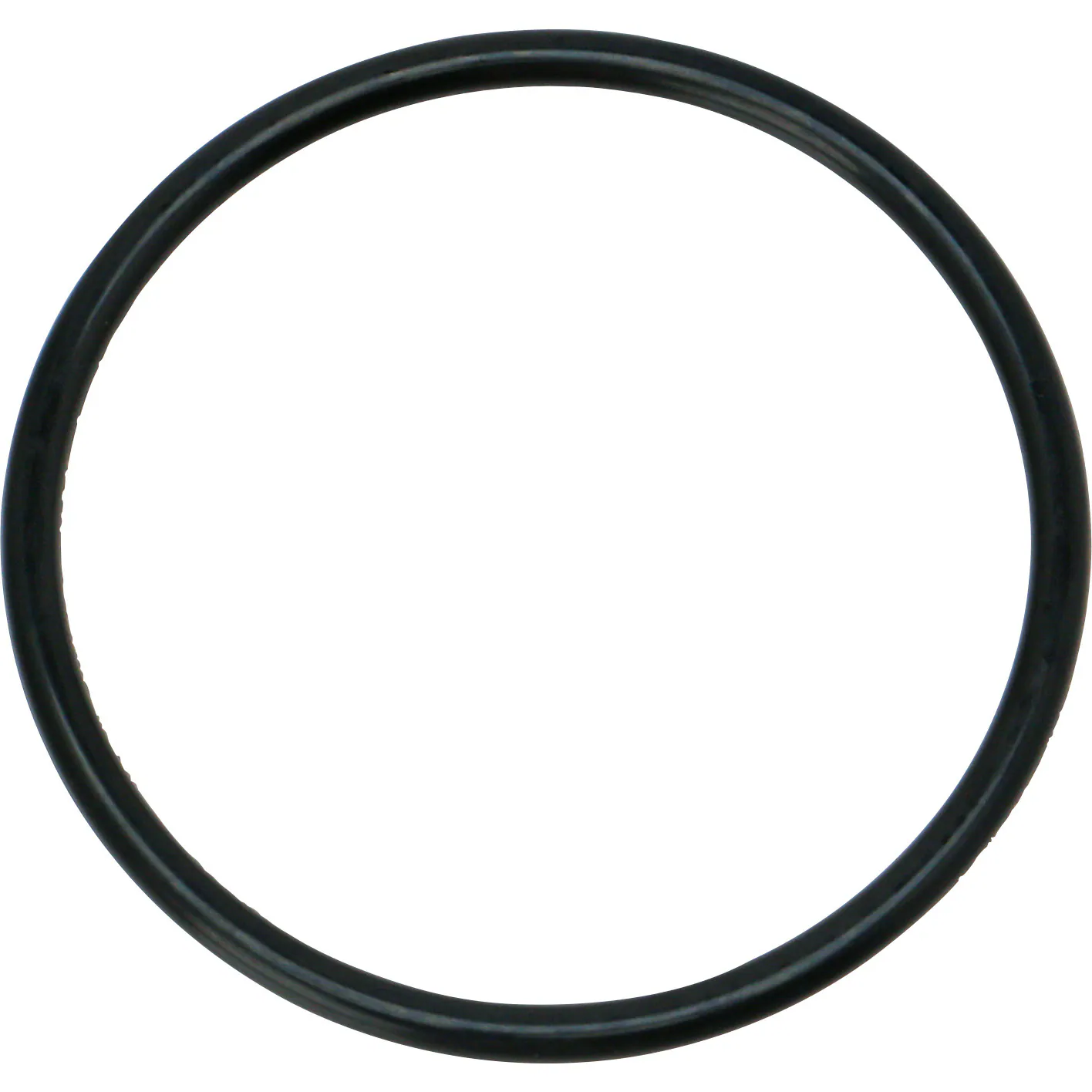

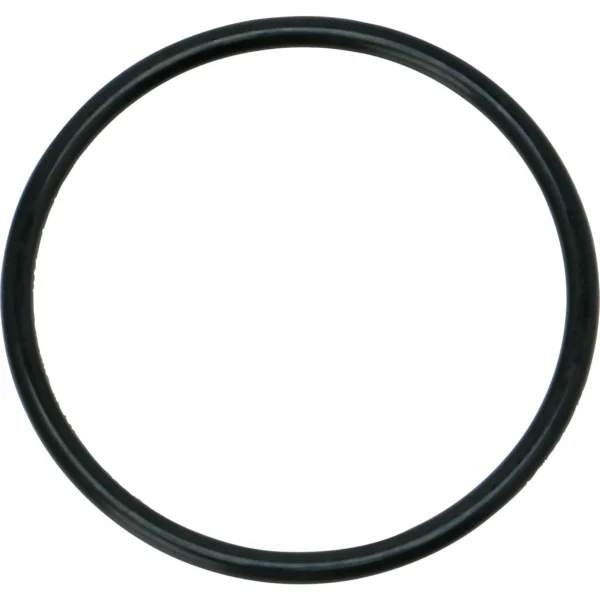

Material: NBR (Nitrile Rubber)
Wire diameter/Tolerance (mm): 3.1 (plus or minus 0.10)
Type: G shape for fixed use
Inner diameter (mm): 49.4
Nominal size: 50
Applications: Oil seals, gaskets, oil-resistant hoses, conveyor belts, printing rolls, spinning top rolls, and other oil-resistant products.
Hardness: 70
Outer diameter (mm): 55.6
Pressure resistance (MPa): 7
Functions: Oil resistance, abrasion resistance, aging resistance
Heat resistance temperature (Celsius degrees): 100
Compliance with RoHS directive (10 substances): Yes
Inner diameter tolerance (mm): 0.45
Excellent oil resistance, abrasion resistance, and aging resistance.
