Description

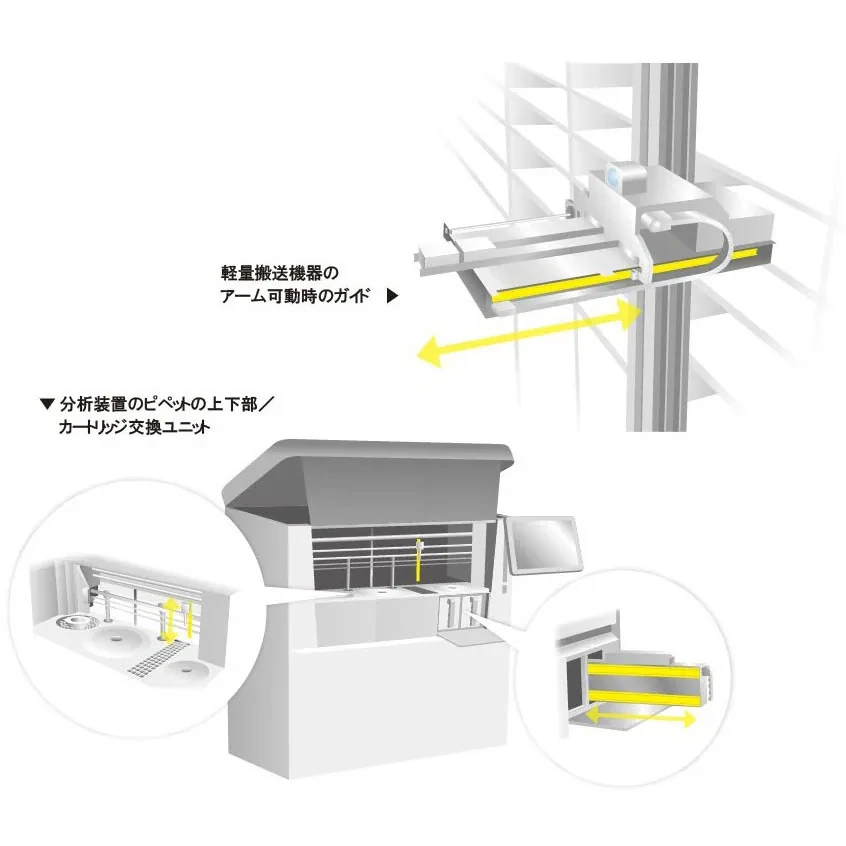

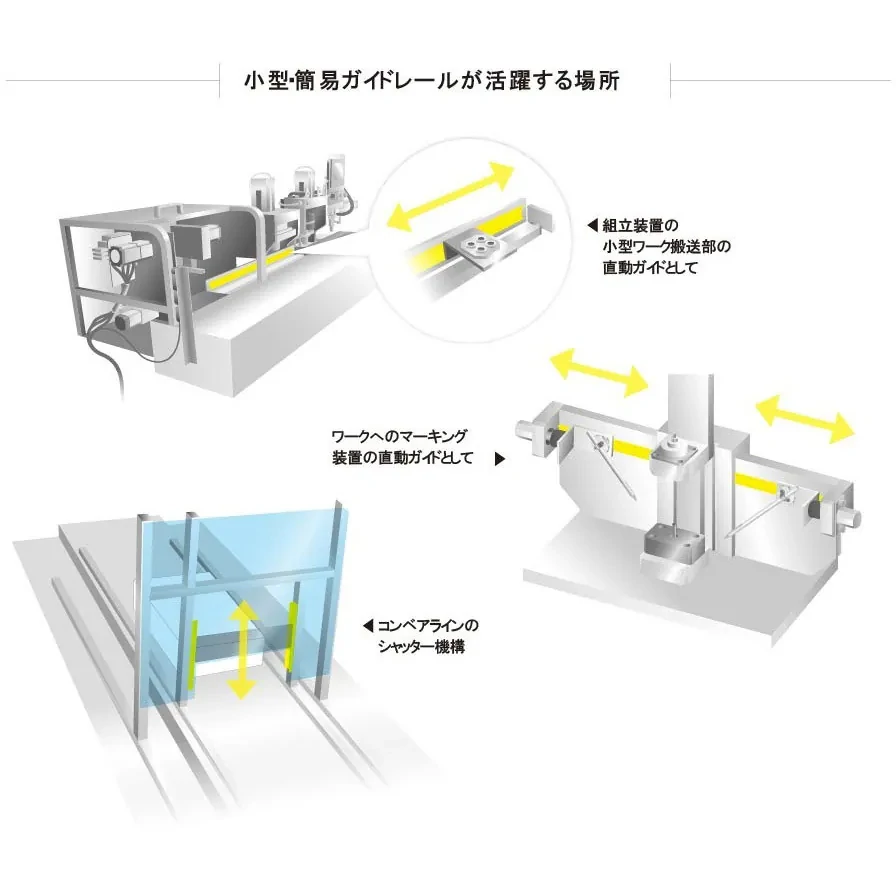

Application: Automatic machines, medical devices, analytical instruments, machine tools, etc.
Material: Stainless steel (SUS304)
Weight (g): 344

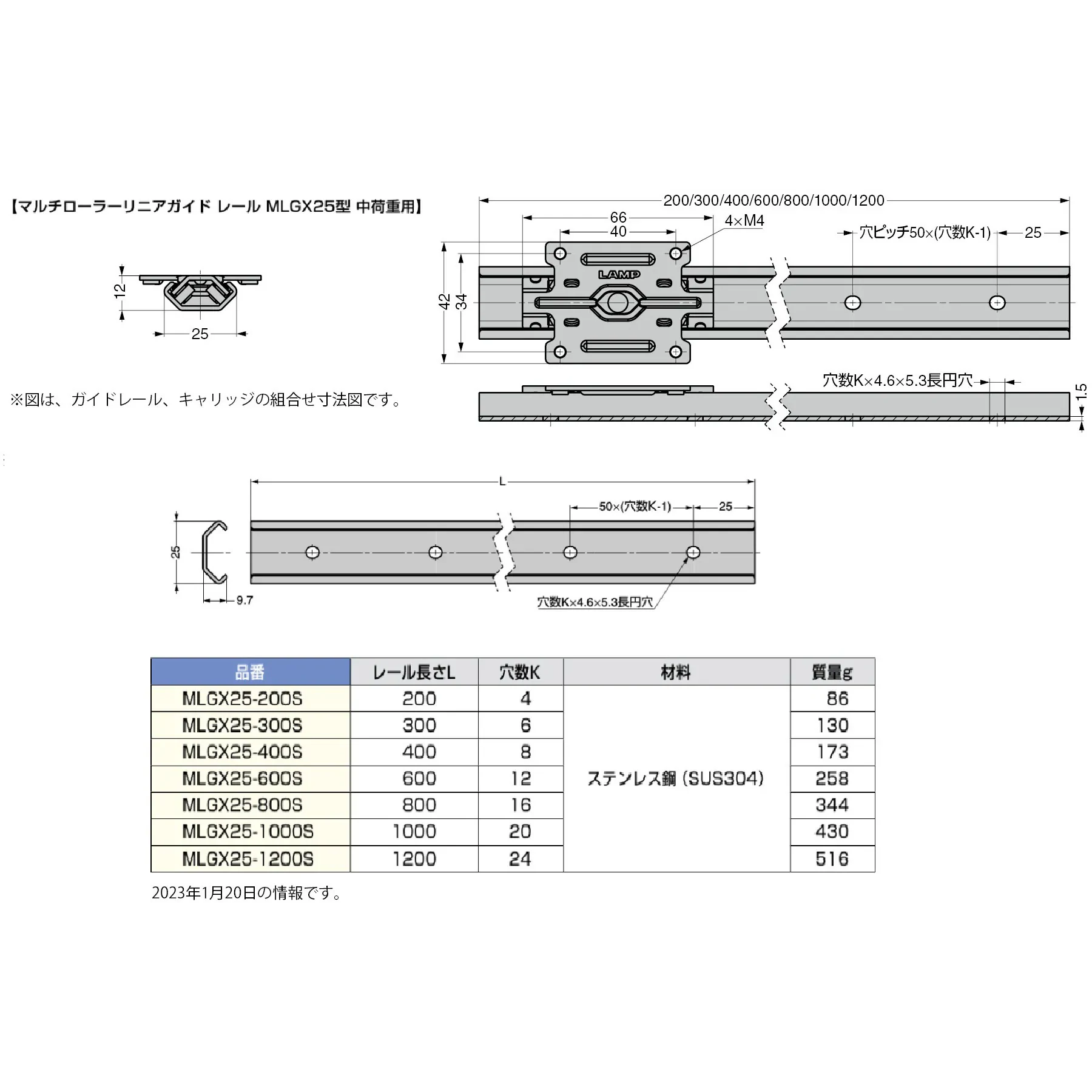

Number of holes: 16
Recommended screw: Hexagon socket button belt M4 (head diameter: less than 7.6mm, head height: less than 2.2mm)

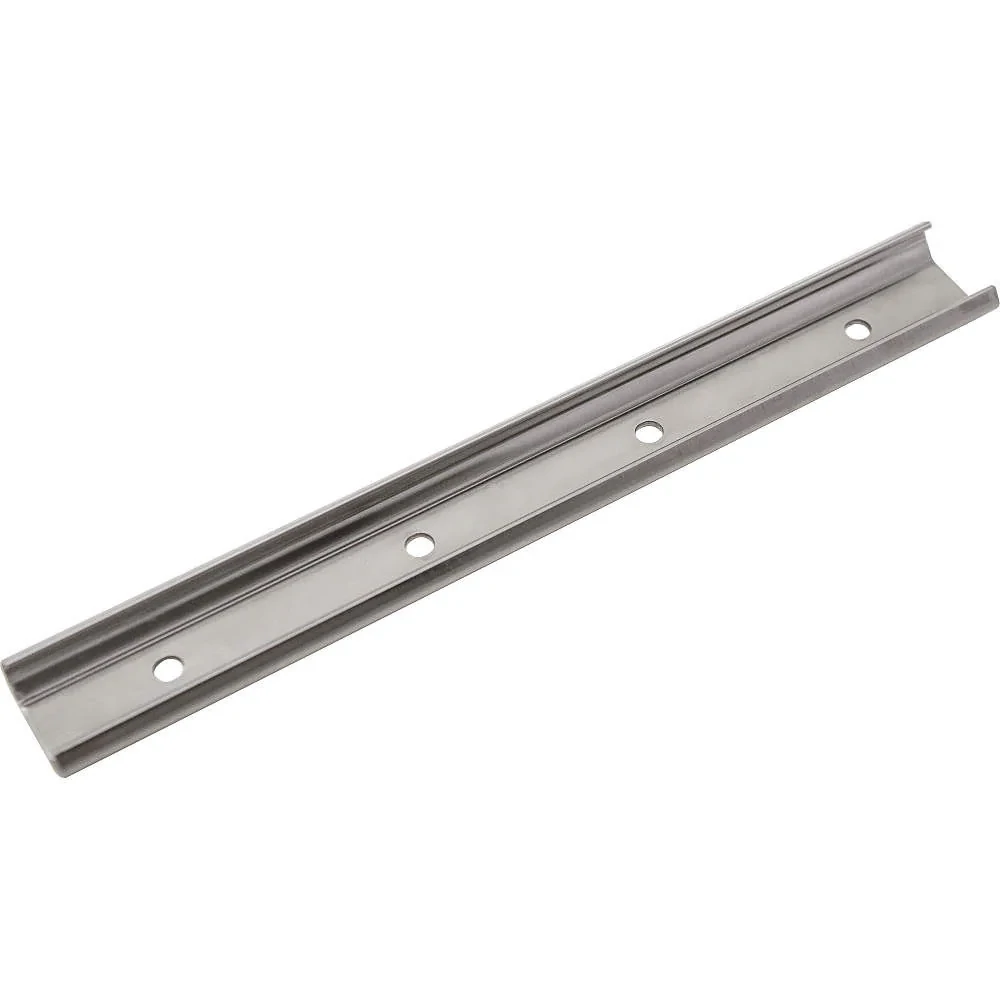

Rail length (mm): 800
RoHS directive (10 substances compliance): Compliance

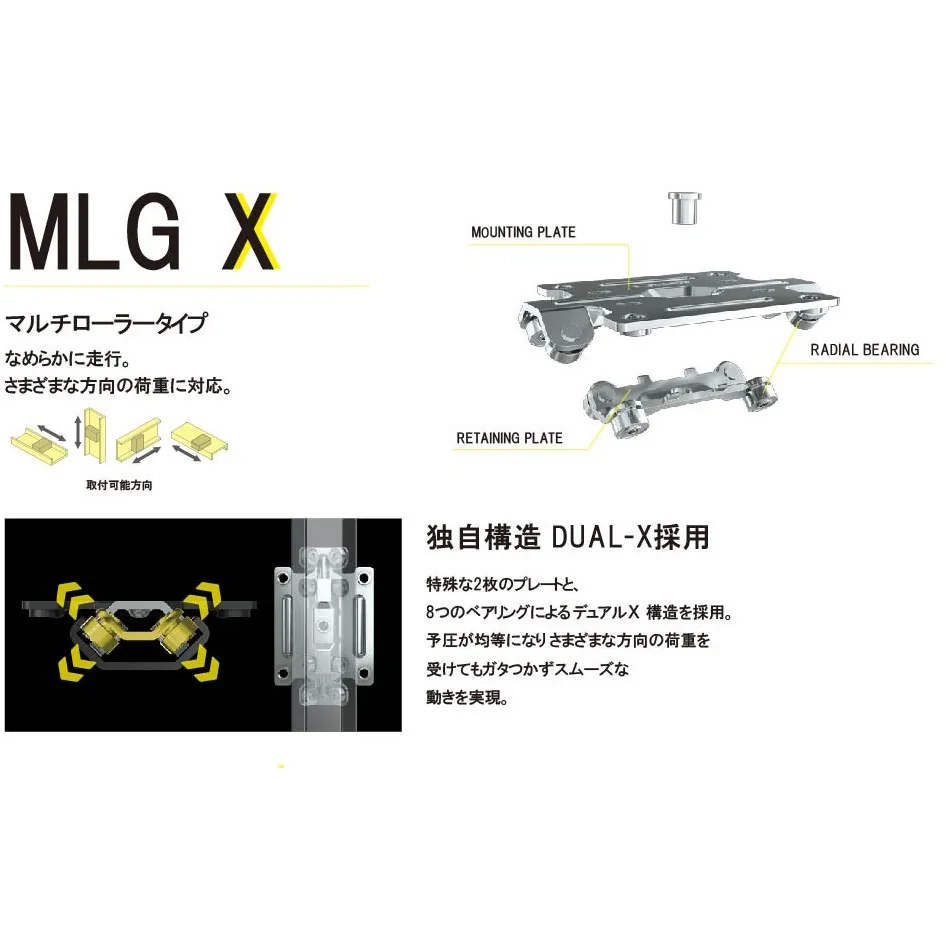

Thanks to the manufacturer’s unique “Dual X Structure,” movement is smooth regardless of whether the load is horizontal or vertical.

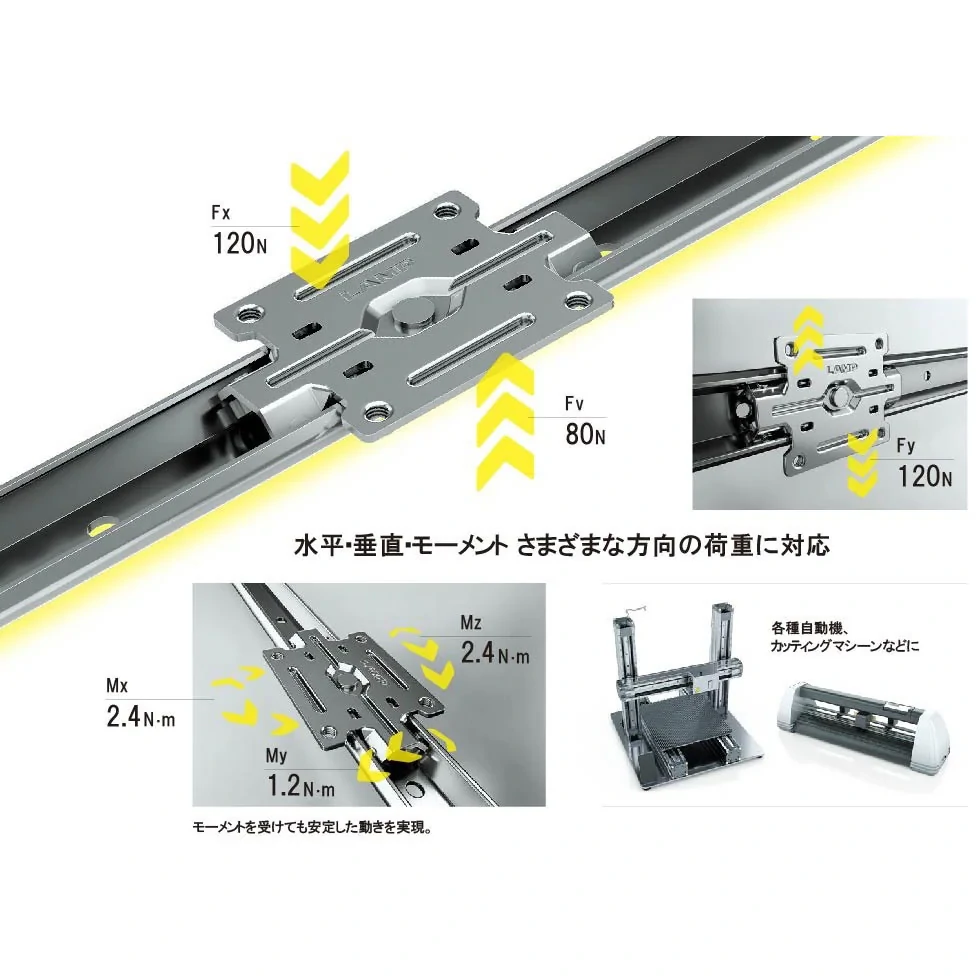

This is a medium load type that can handle operating loads of up to 120N in both horizontal and vertical directions.
Tests have been conducted at 200 mm/sec, with 100 mm being traversed back and forth 500,000 times (total travel distance of 100 km).
There is no ball creep phenomenon, allowing for use in conjunction with motor drive.
Stable movement is achieved with light operating force even when receiving moments.
The carriage is of a preloaded type with minimal play.
