Description

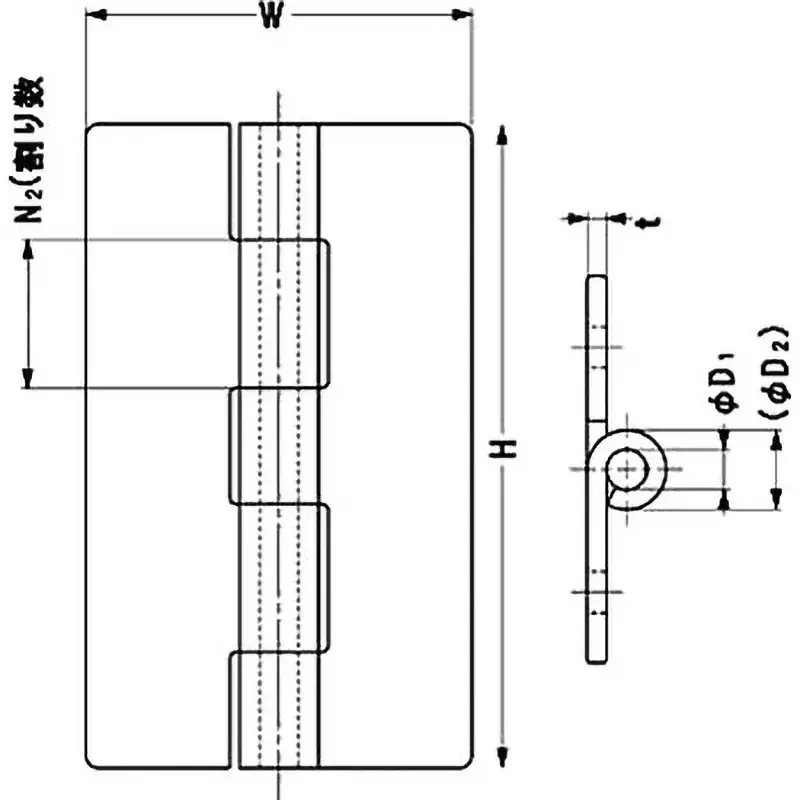

Dimension D1 (mm): 4
Dimension D2 (mm): 8.3
Dimension H (mm): 75
Dimension N1 (mm): 6
Dimension N2 (mm): 5
Dimension W (mm): 50
Thickness t (mm): 2
Material: Stainless Steel (SUS304)
Material/Finish: Stainless Steel (SUS304)/Mirror Buff Polishing
Weight (g): 76
Type: Flat
Category: Butt Hinge
Load Capacity (kg): 15 (for two-piece suspension)
No mounting holes
Finish: Mirror buff polishing
RoHS Directive (compliance for 10 substances): Compliant

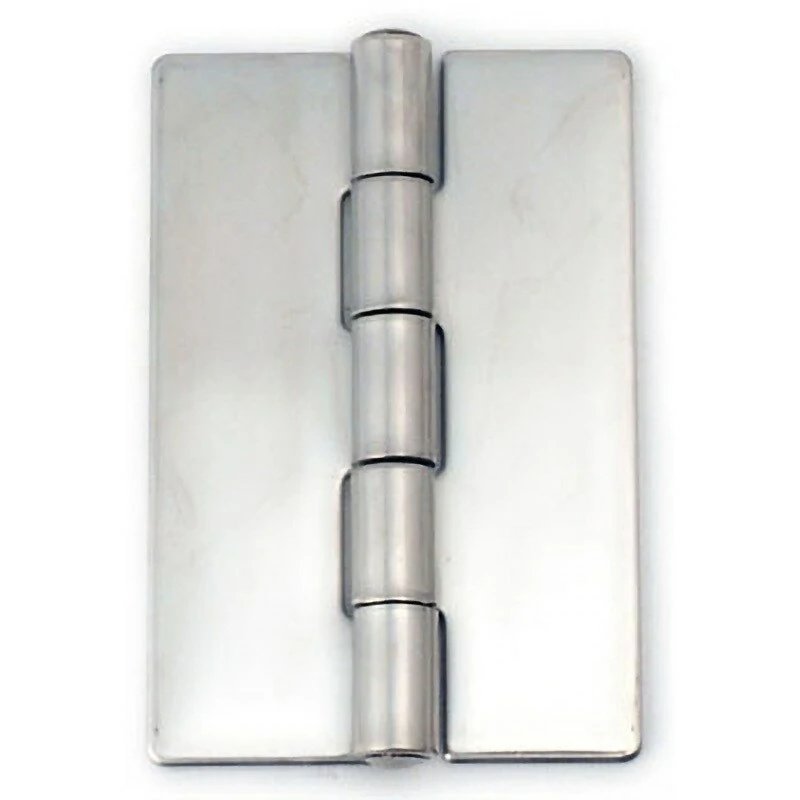

This is a flat stainless steel hinge with a polished finish.
Custom sizes and finishes are available by special order.
