Description

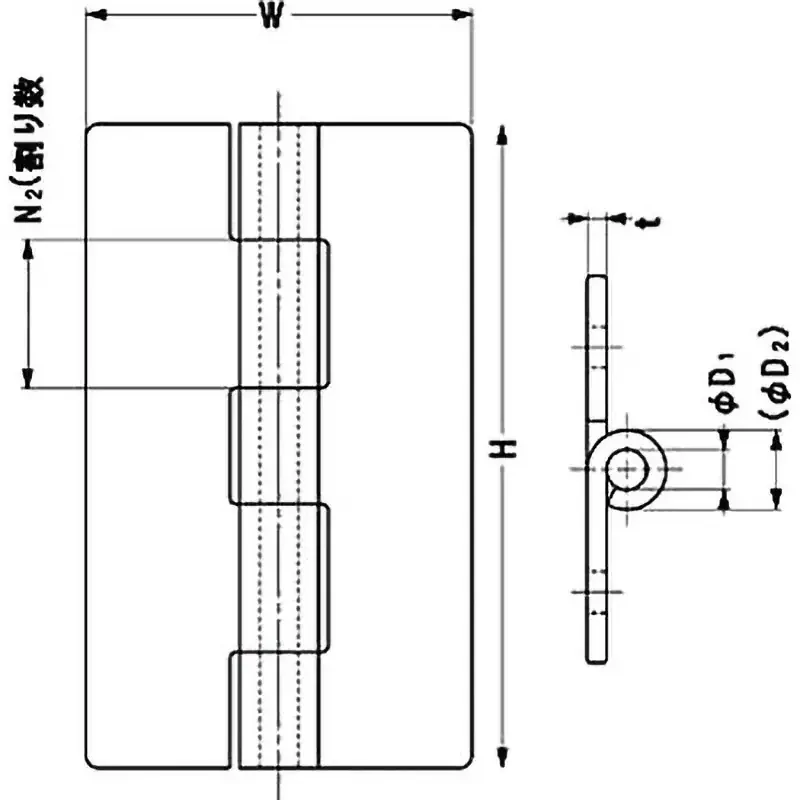

Dimension D1 (mm): 4
Dimension D2 (mm): 8.3
Dimension H (mm): 65
Dimension N1 (mm): 6
Dimension N2 (mm): 5
Dimension W (mm): 50
Dimension t (mm): 2
Material: Stainless Steel (SUS304)
Material/Finish: Stainless Steel (SUS304)/Mirror Polished
Weight (g): 66
Type: Parallel Type
Category: Butt Hinge
Load Capacity (kg): 13 (for 2 plates)
No mounting holes
Finish: Mirror Polished
RoHS Directive (10 substances compliance): Compliant

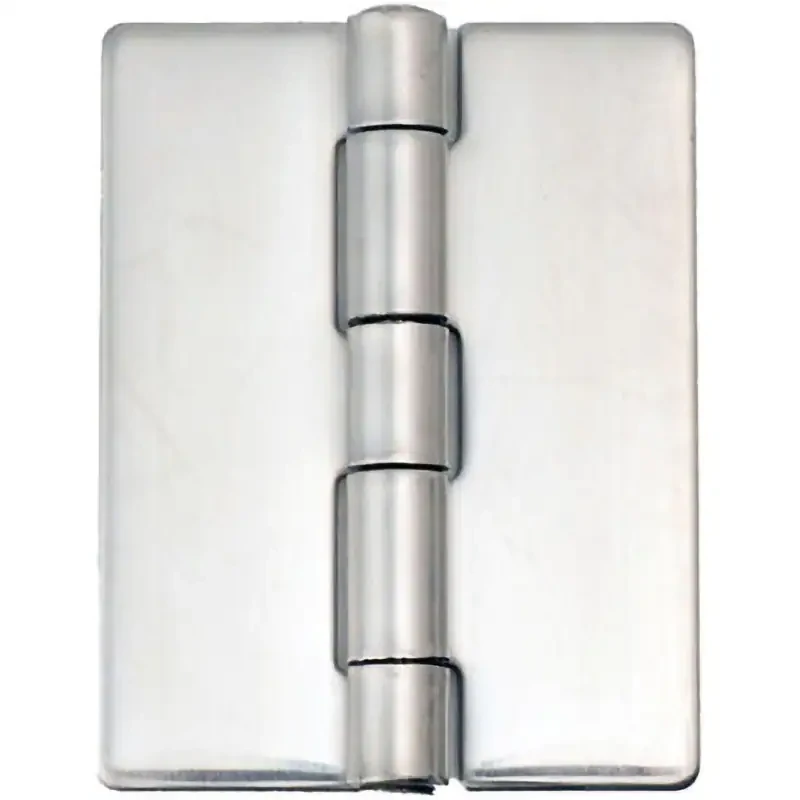

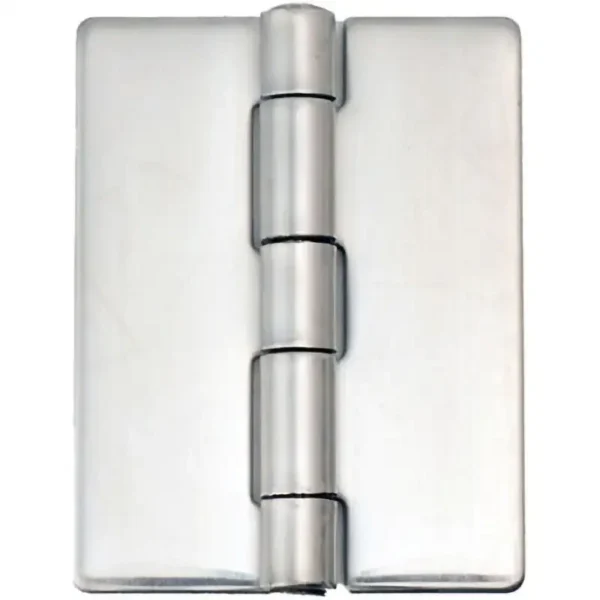

This is a flat type hinge made of all stainless steel with a polished finish.
Custom sizes and finishes are also available upon request.
