Description
Dimension D1 (mm): 3
Dimension D2 (mm): 6.3
Dimension H (mm): 50
Dimension N1 (mm): 4
Dimension N2 (mm): 3
Dimension W (mm): 35
Dimension t (mm): 1.5
Material: Stainless Steel (SUS304)
Material/Finish: Stainless Steel (SUS304)/Mirror Polished
Weight (g): 30
Type: Parallel
Category: Butt Hinge
Load Capacity (kg): 8 (for 2 doors)
No Mounting Holes
Finish: Mirror Polished
RoHS Directive (10 Substances Compliance): Compliant

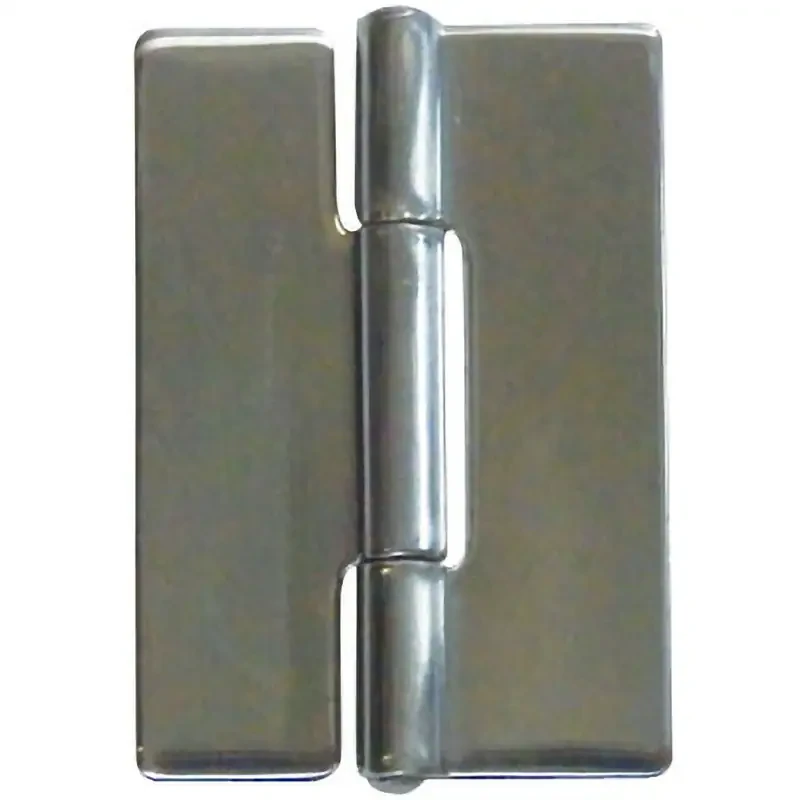

This is a flat type hinge made of all Stainless Steel with a polished finish.
Custom orders for different sizes and finishes are also available.
