Description
Quantity: 1 piece

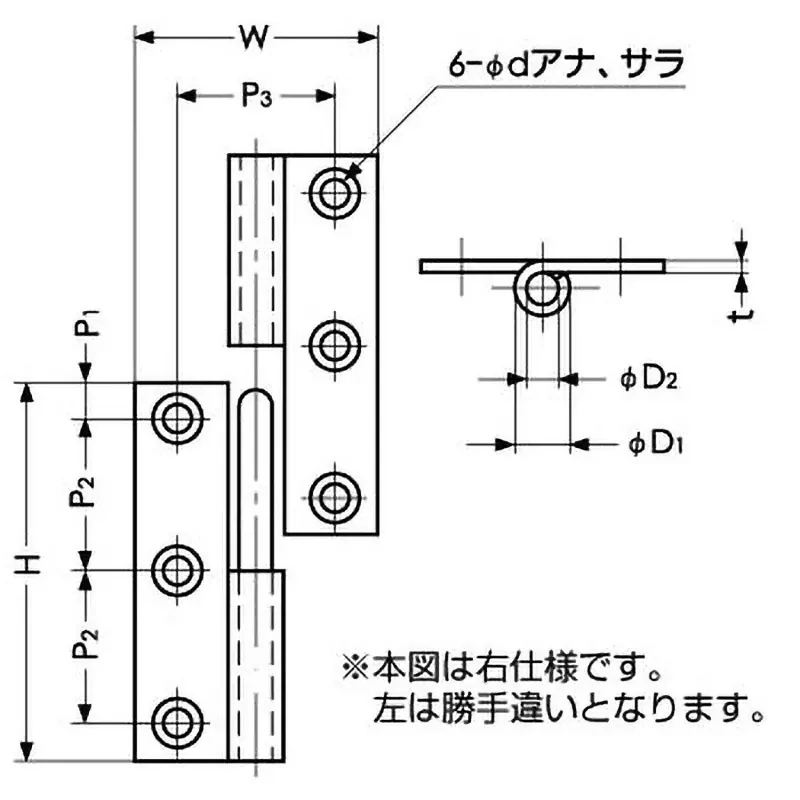

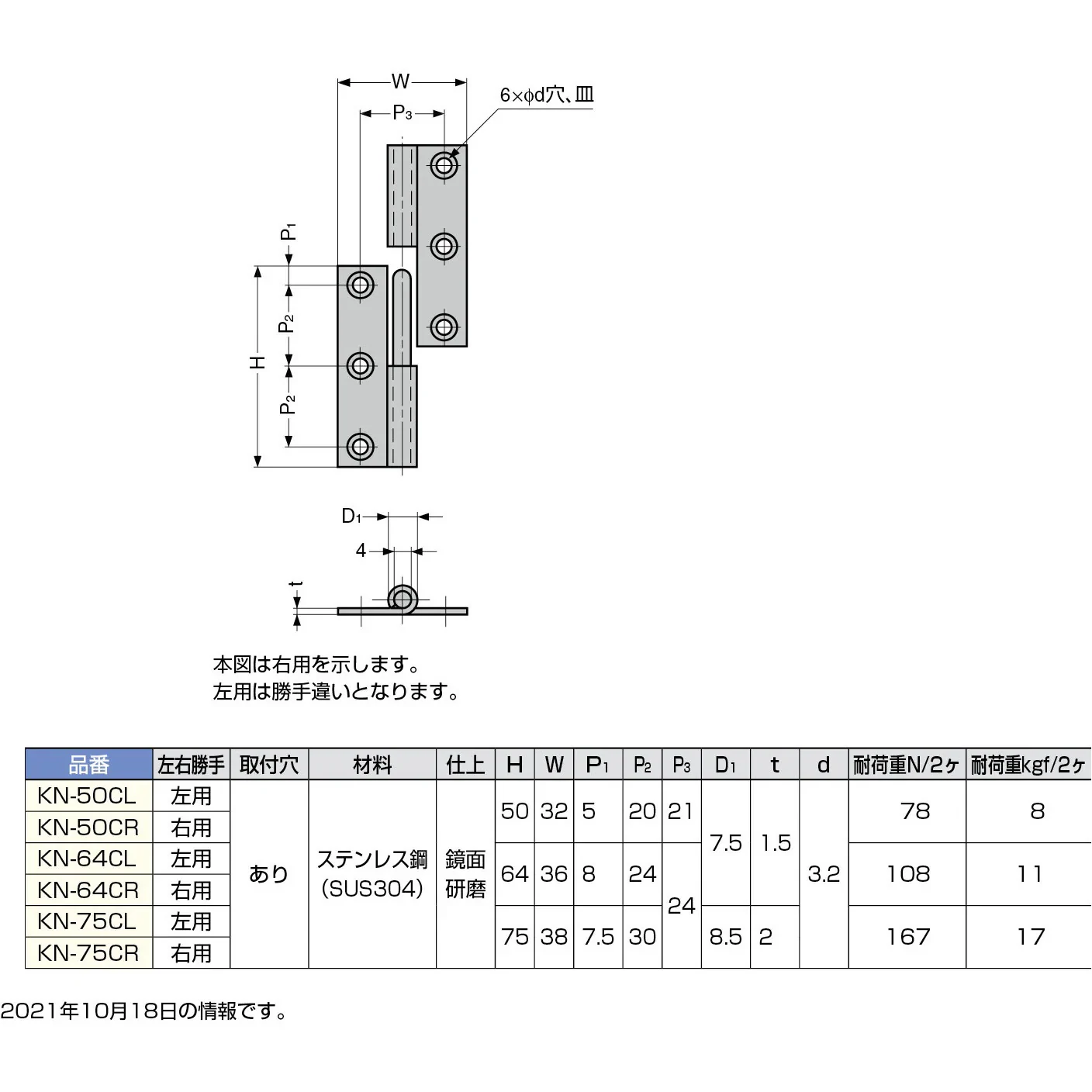

Dimensions H (mm): 64
Specification: Left-Handed
Part Number: KN-64CL
Dimensions D1 (mm): 7.5
Dimensions D2 (mm): 4
Dimensions H (mm): 64
Dimensions P1 (mm): 8
Dimensions P2 (mm): 24
Dimensions P3 (mm): 24
Dimensions W (mm): 36
Dimensions d (mm): 3.2
Dimensions t (mm): 1.5
Material: Stainless Steel (SUS304)
Specification: Left-Handed
Type: Lift-off Hinge
Mounting Holes: Yes
Finish: Polished
Number of Mounting Holes: 6
RoHS Directive (10 Substances Compliance): Compliant

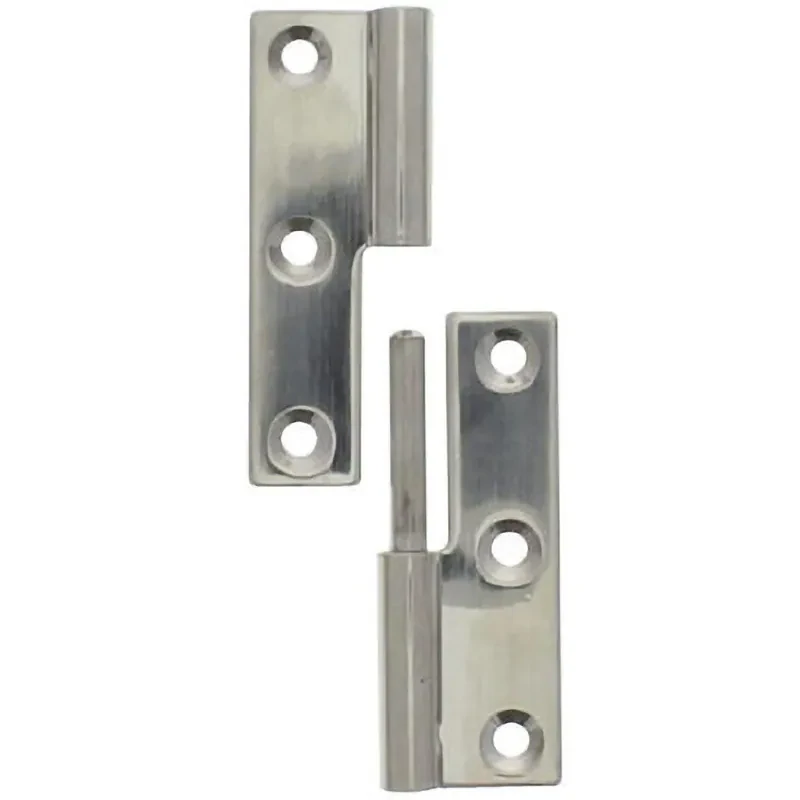

This is a standard stainless steel lift-off hinge.
