Description

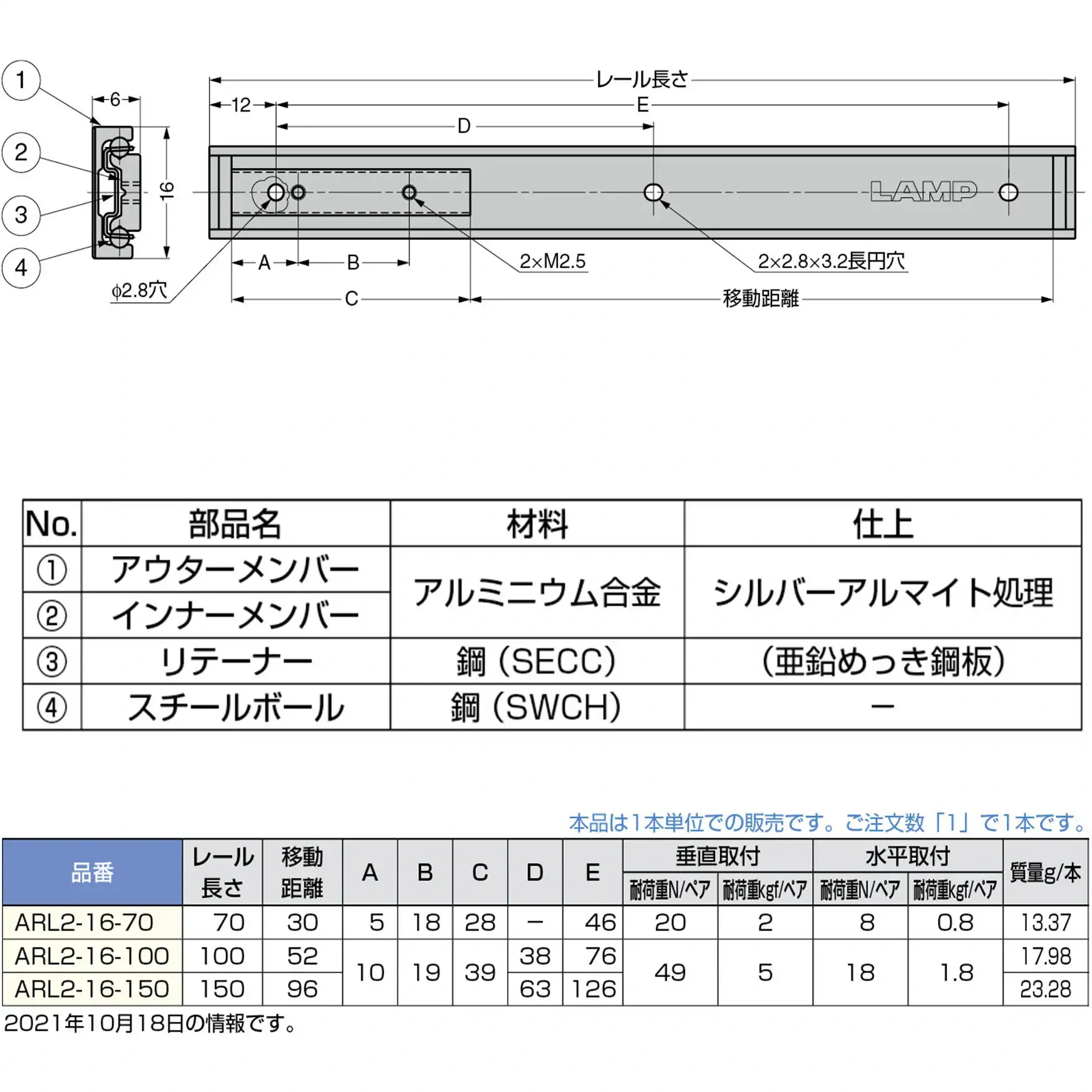

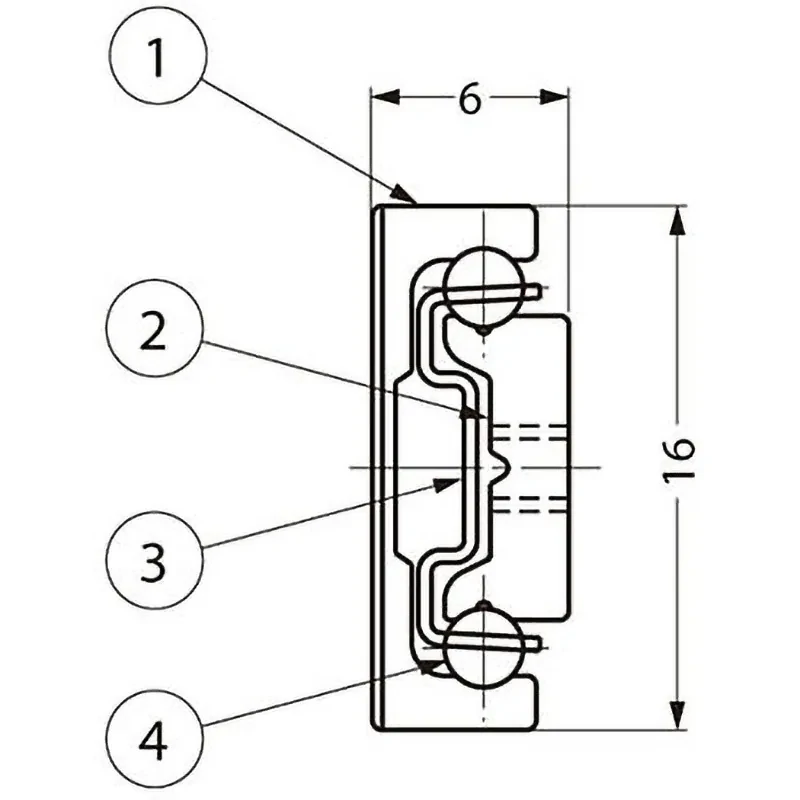

Material/Finish:(Outer Rail Inner Rail) Aluminum Alloy/Silver Anodized Treatment, (Retainer) Steel/(Zinc Plated Steel Sheet), (Steel Ball) Steel/-
Travel Distance (mm): 52
Rail Length (mm): 100

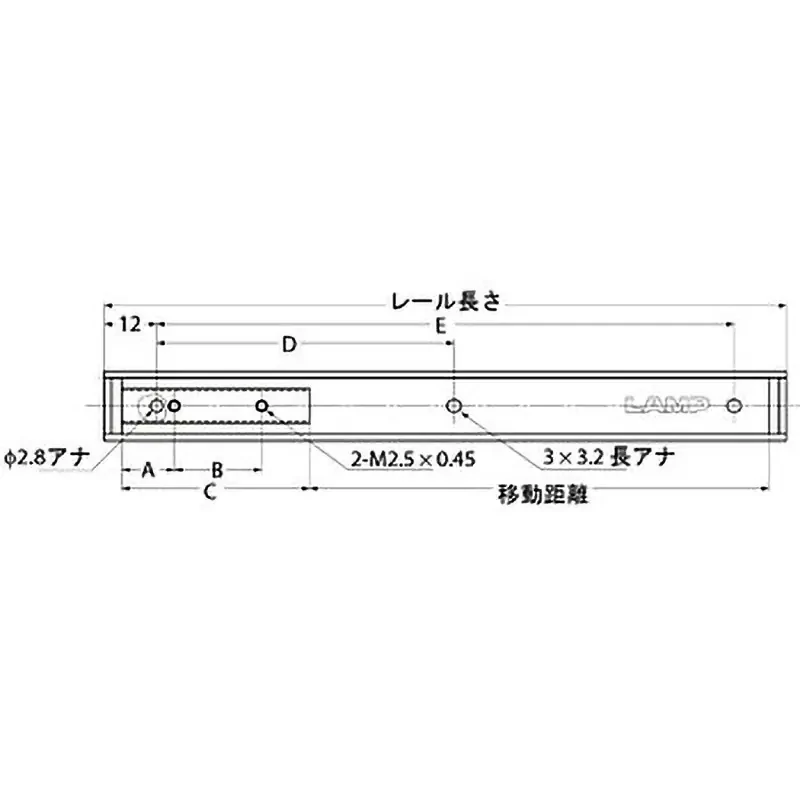

Dimension A (mm): 10
Dimension B (mm): 19
Dimension C (mm): 39
Dimension D (mm): 38
Dimension E (mm): 76
Mass (g): 17.98
Stroke (mm): 52

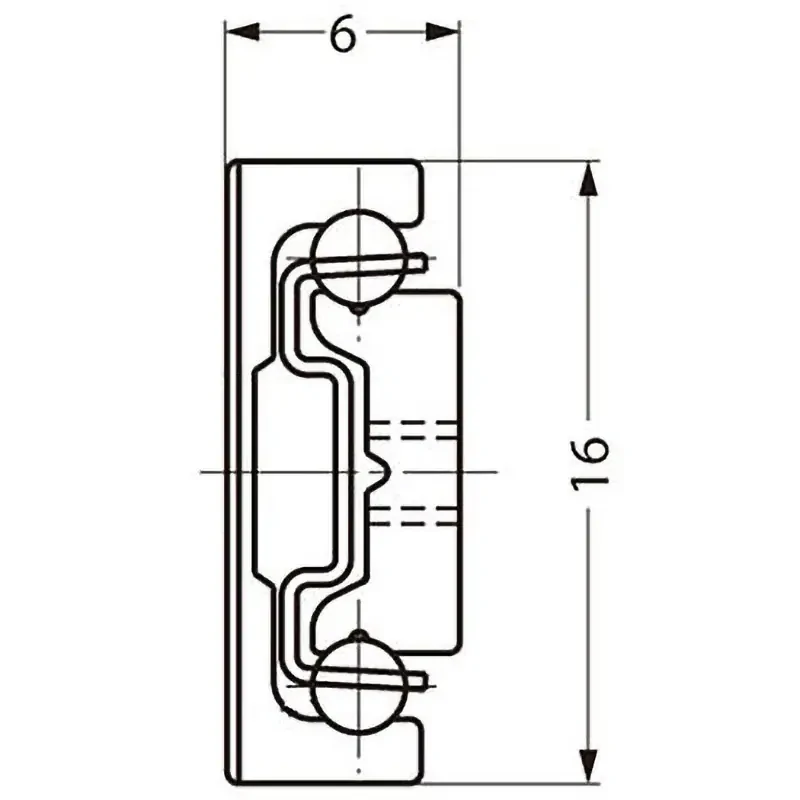

Height (mm): 16
Type: Linear
Load Capacity (N/pair): 49
Rated Load (N): (Vertical) 49/pair, (Horizontal) 18/pair
Width W (mm): 6
Material (Rail): Aluminum Alloy
RoHS Directive (10 Substances Compliant): Compliant
Surface Treatment (Rail): Silver Anodized Treatment

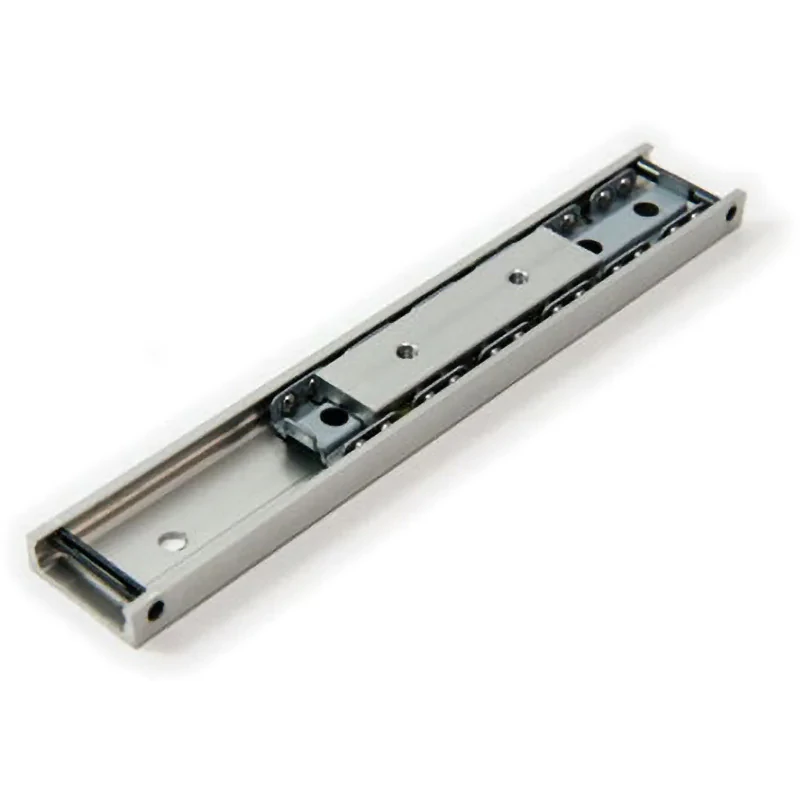

This is a super-compact rail with a height dimension of 16 mm.
Since the outer member and inner member are made of extruded aluminum, it is lightweight.
