Description

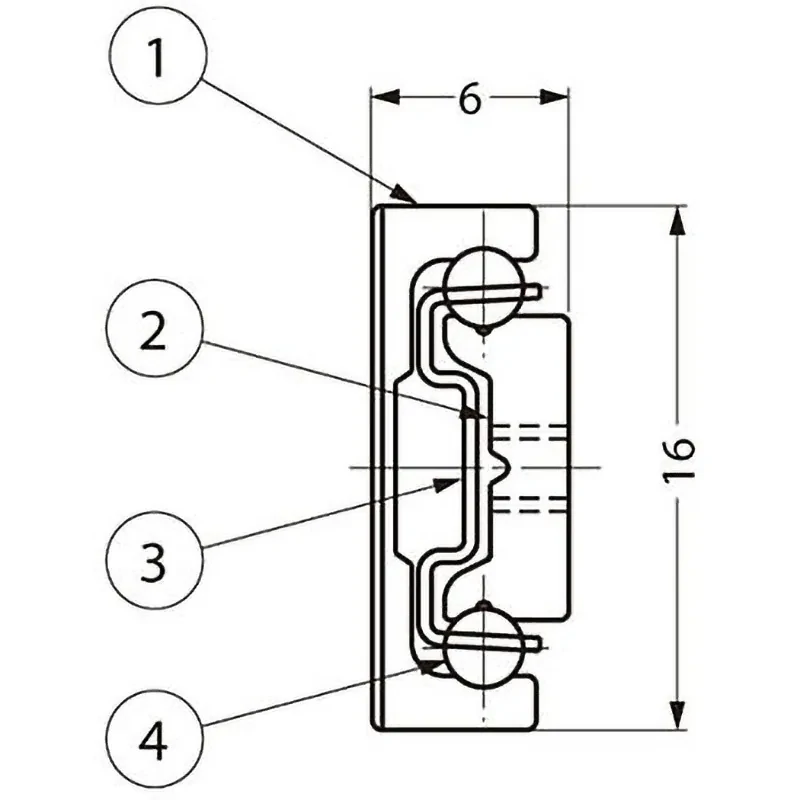

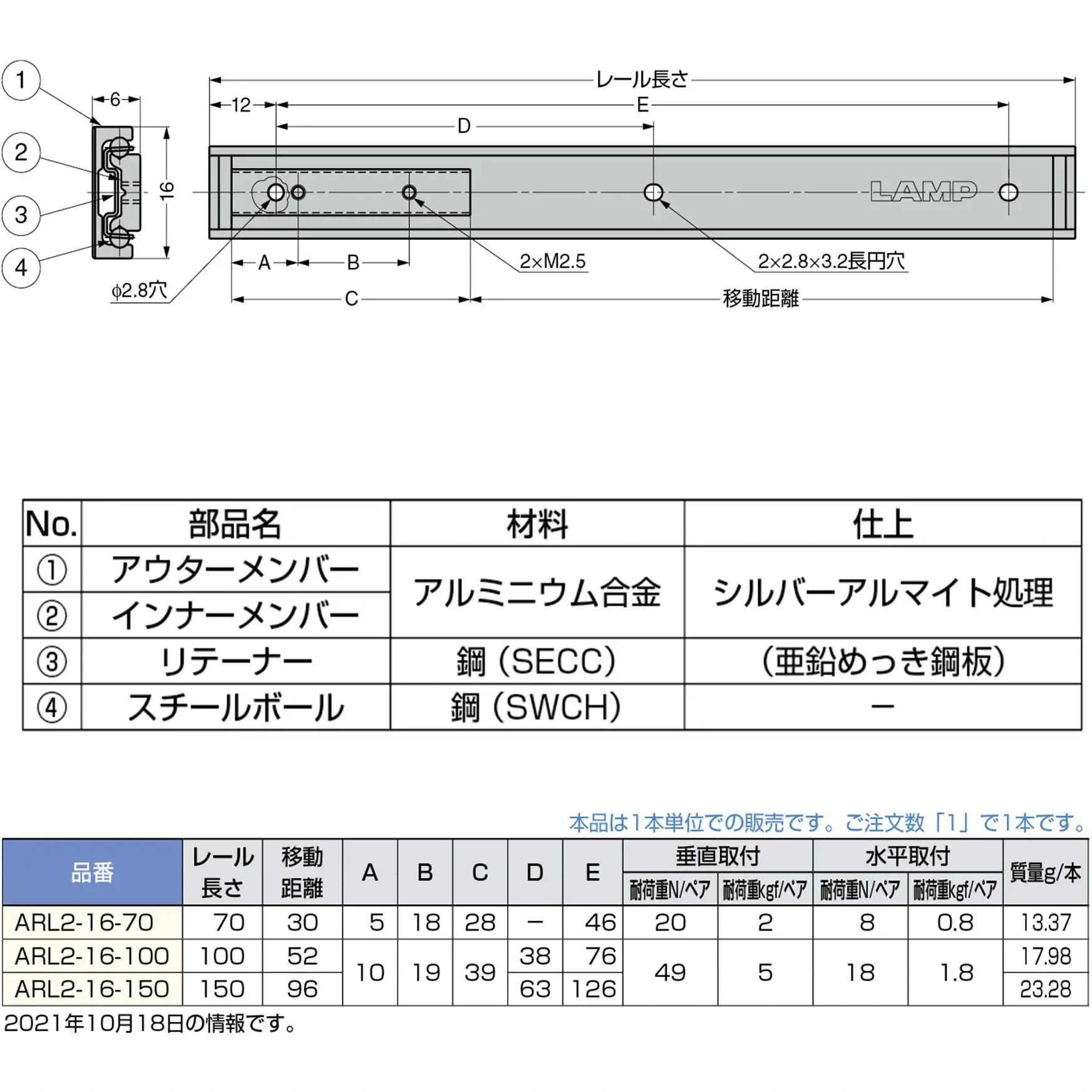

Material/Finish:(Outer Rail Inner Rail) Aluminum Alloy/Silver Anodized Finish, (Retainer) Steel/(Zinc Plated Steel Sheet), (Steel Ball) Steel
Travel Distance (mm): 30
Rail Length (mm): 70

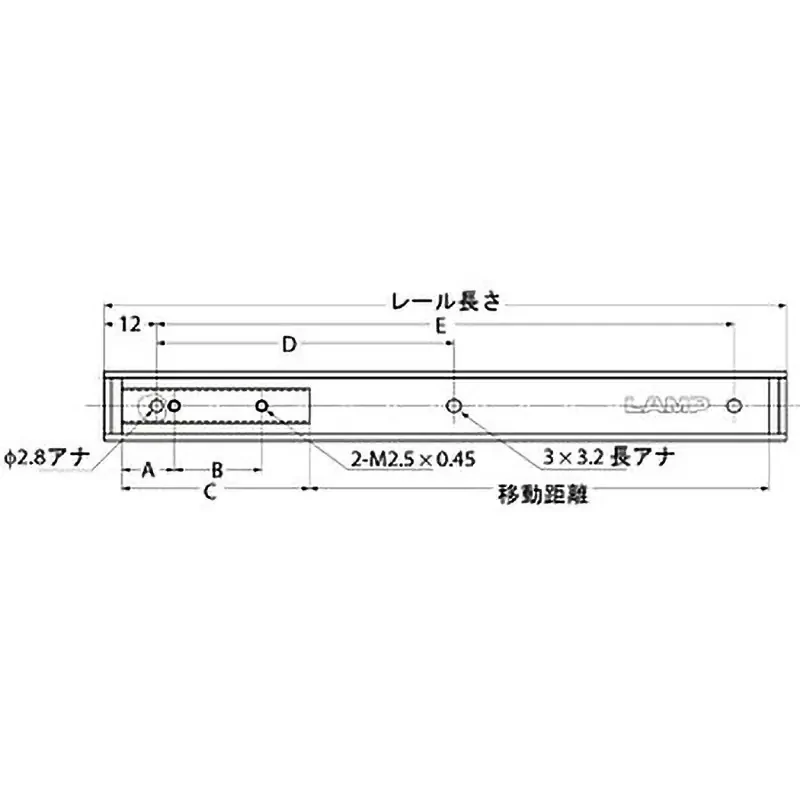

Dimension A (mm): 5
Dimension B (mm): 18
Dimension C (mm): 28
Dimension D (mm): –
Dimension E (mm): 46
Mass (g): 13.37
Stroke (mm): 30

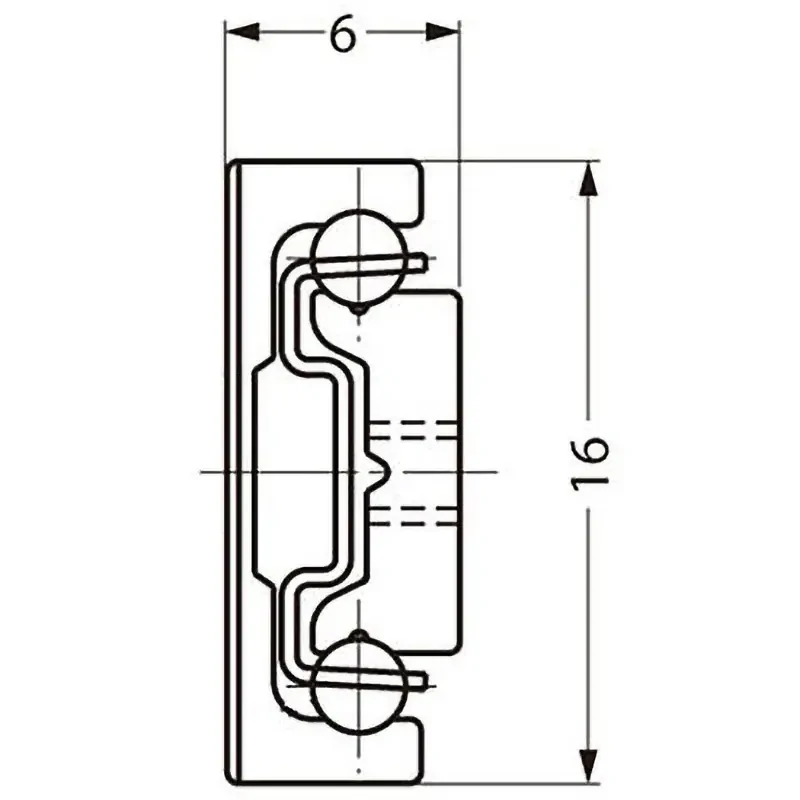

Height (mm): 16
Type: Linear Shape
Load Capacity (N/pair): 20
Rated Load (N): (Vertical) 20/pair, (Horizontal) 8/pair
Width W (mm): 6
Material (Rail): Aluminum Alloy
Surface Treatment (Rail): Silver Anodized Finish

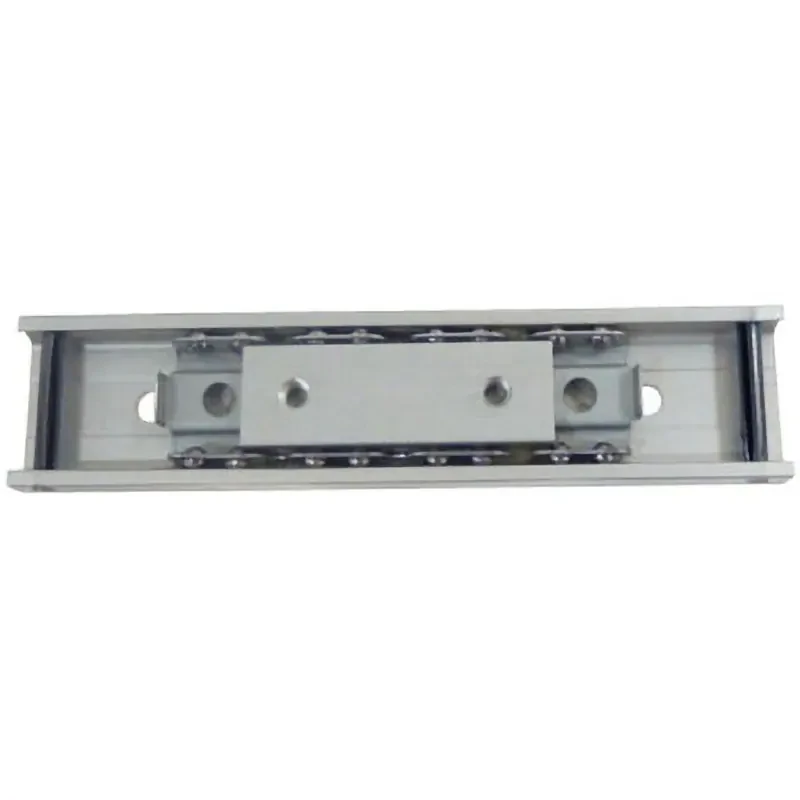

This is a super-compact rail with a height dimension of 16 mm.
Since the outer member and inner member are made of extruded aluminum, it is lightweight.
