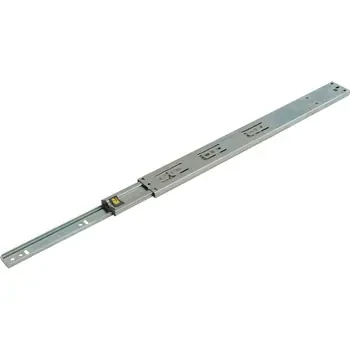

Description
Purpose: Medical equipment, store fixtures, system kitchens, etc.
Material: Rail/cold-rolled steel plate (SPCC), retainer/inner side: hot-dip galvanized steel plate, outer side: polypropylene (PP), damper part/polyacetal (POM)
Weight (g): 640
Allowable load (N/pair): 400
Surface finish rail: zinc-plated chromate treatment (MFZn-C)
Takigen code: 31917
The self-closing mechanism provides a pulling force from a position 50mm before the drawer is fully stored, automatically closing it.
An air damper is employed, making the drawer light and smooth. Additionally, there is no concern about oil leakage.
Products with a rail length of 400mm or more can extend the drawer beyond the rail length.
Simply pressing a button allows for easy removal of the inner rail.
