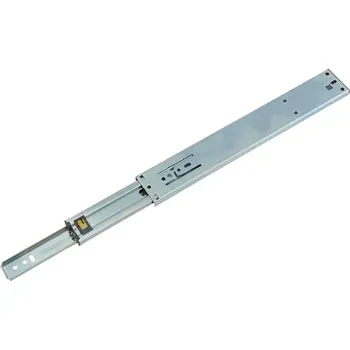

Description
Purpose: Medical equipment, store fixtures, system kitchens, etc.
Material: Rail/cold-rolled steel plate (SPCC), Retainer/inner side: hot-dip galvanized steel plate, outer side: polypropylene (PP), damper part/polyacetal (POM)
Weight (g): 408
Allowable load (N/pair): 220
Surface finish rail: zinc plated chromate treatment (MFZn-C)
Takigen code 31914
The self-closing mechanism applies a pulling force from 50mm before the drawer is fully stored, automatically drawing it in.
An air damper is used, allowing the drawer to open and close lightly and smoothly. There is also no worry about oil leakage.
Products with a rail length of 400mm or more can extend beyond the rail length when the drawer is pulled out.
The inner rail can be easily removed by simply pressing a button.
