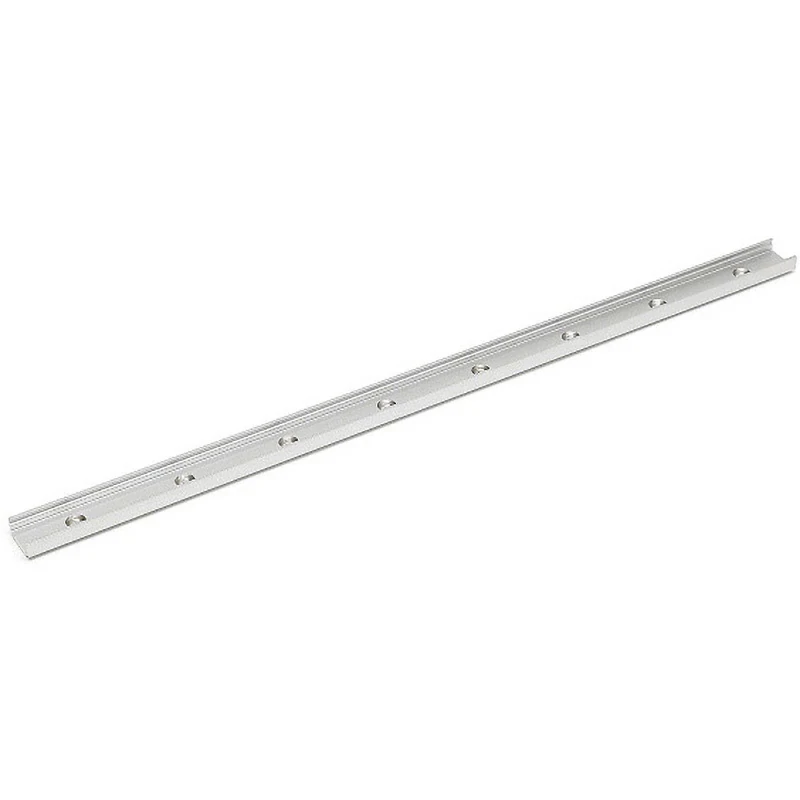

LAMP (Sugatsune) Multi-Roller Linear Guide Rail >MLG20-400

¥1,678

999 in stock

SKU: r22446457521a Category:

Description

Contents: 1 piece
Rail Length L (mm): 400
Part Number: MLG20-400
Applications: Medical devices, food processing machines, analytical instruments, amusement equipment
Material: Aluminum alloy
Height (mm): 20.2
Weight (g): 72
Finish: Silver anodized treatment
Width W (mm): 10.5
As-One Part Number: 64-8611-05
Main Material: Stainless steel
RoHS Directive (compliant with 10 substances): Compliant
Permissible Radial Load (N): 40
Rail Length L (mm): 400
Permissible Axial Load (N): 4
The use of in-house designed multi-rollers in the carriage allows for smooth movement even under loads from various directions.
A test was conducted at 200 mm/s, with 100 mm traveled back and forth 300,000 times (total distance of 60 km). For details, please contact us.
Since there is no ball creep phenomenon, it can be used in conjunction with motor drives.
A rail length of 100 mm has been added.
A short-type carriage has been added. It has a shorter total length and can extend the travel distance by 13 mm.
An 8-wheel type carriage has been added. It improves the rated load while maintaining the travel distance.
