Description
Inscribed Circle Diameter Fw (mm): 9;
Outer diameter D (mm): 16;
Width C(mm): 12;
Purpose: For heavy – duty applications;
Material: (Main body) High carbon chromium bearing steel;
Mass (g): 8.7;
Type: Standard type (with cage);
Allowable rotational speed (/min [r.p.m]): 45000;
Basic static load rating Co (N): 4880;
Suitable for combination;
JIS grade: 0;
Basic dynamic load rating C (N): 5140;
Shield shape: Standard type;
Load direction: Radial;
Outer ring type: Flat;

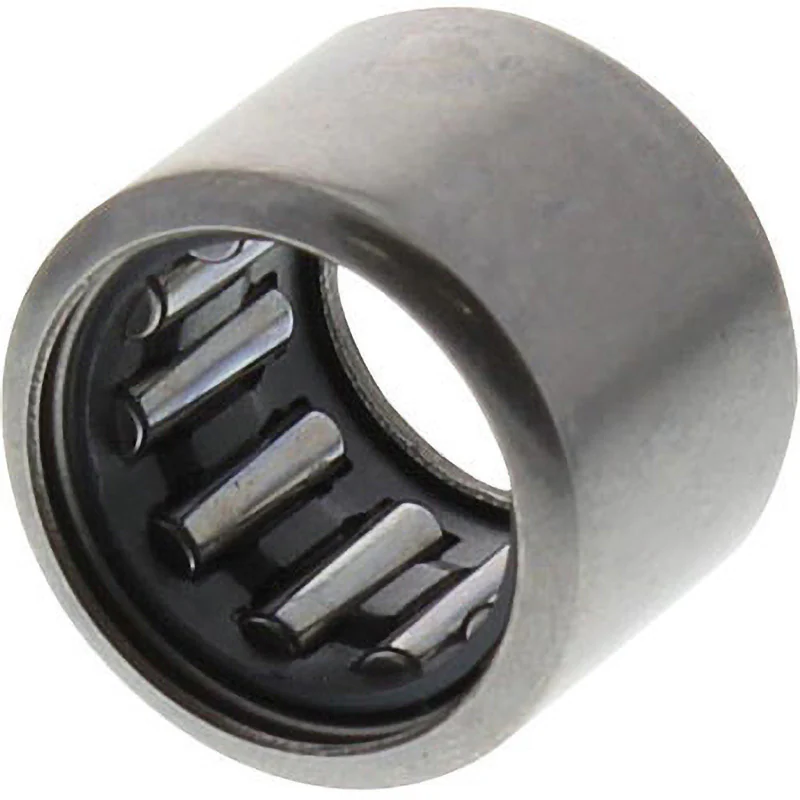

Raceway ring Shape: Needle roller bearing;
Number of raceway ring rows: Single row;
Rolling element Material: High carbon chromium bearing steel
