Description
Quantity: 1 piece
Part Number: BP-150-2
Material (Main Body): Polyacetal (POM UL94-HB)
Application: Canopy, Server Rack, Office Equipment, Front Cover of Furniture, etc. (Horizontal Use)
Color: Black
Weight (g): 20

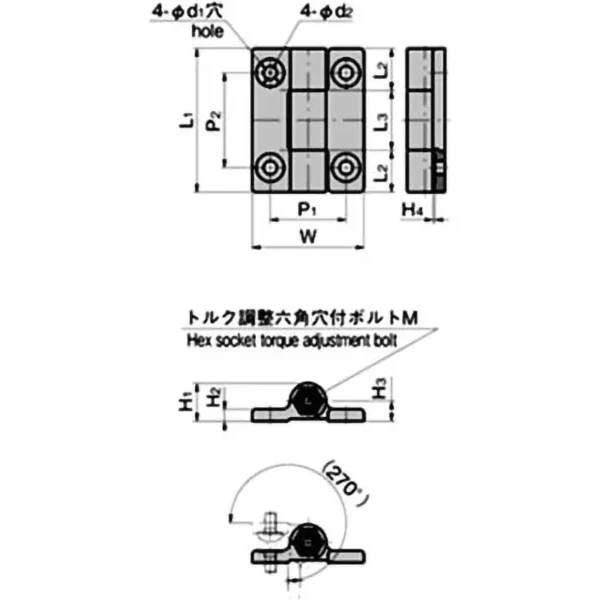

Dimension L1 (mm): 50
Material (Shaft): Polycarbonate (PC UL94V-2)
Material (Screw Section): Stainless Steel (SUS)
Dimension L2 (mm): 14.5
Dimension W (mm): 37
Dimension L3 (mm): 21
Dimension H1 (mm): 13.5
Dimension d1 (mm): 4.5
Dimension d2 (mm): 9
Dimension H2 (mm): 5
Dimension P1 (mm): 25.5
Dimension P2 (mm): 31.5
Dimension H3 (mm): 7
Dimension H4 (mm): 1.5
Material (Nut): Stainless Steel (SUS)
Rated Torque (N*m): (2 pieces) 0 to 1
Surface Finish: Textured Finish
Dimension M4
Takigen Code: 13271
Holds the door at any angle.
The torque can be adjusted by turning the adjustment bolt.
Flame-retardant materials are used. (Main Body POM UL94HB, Shaft PC UL94V-2)
