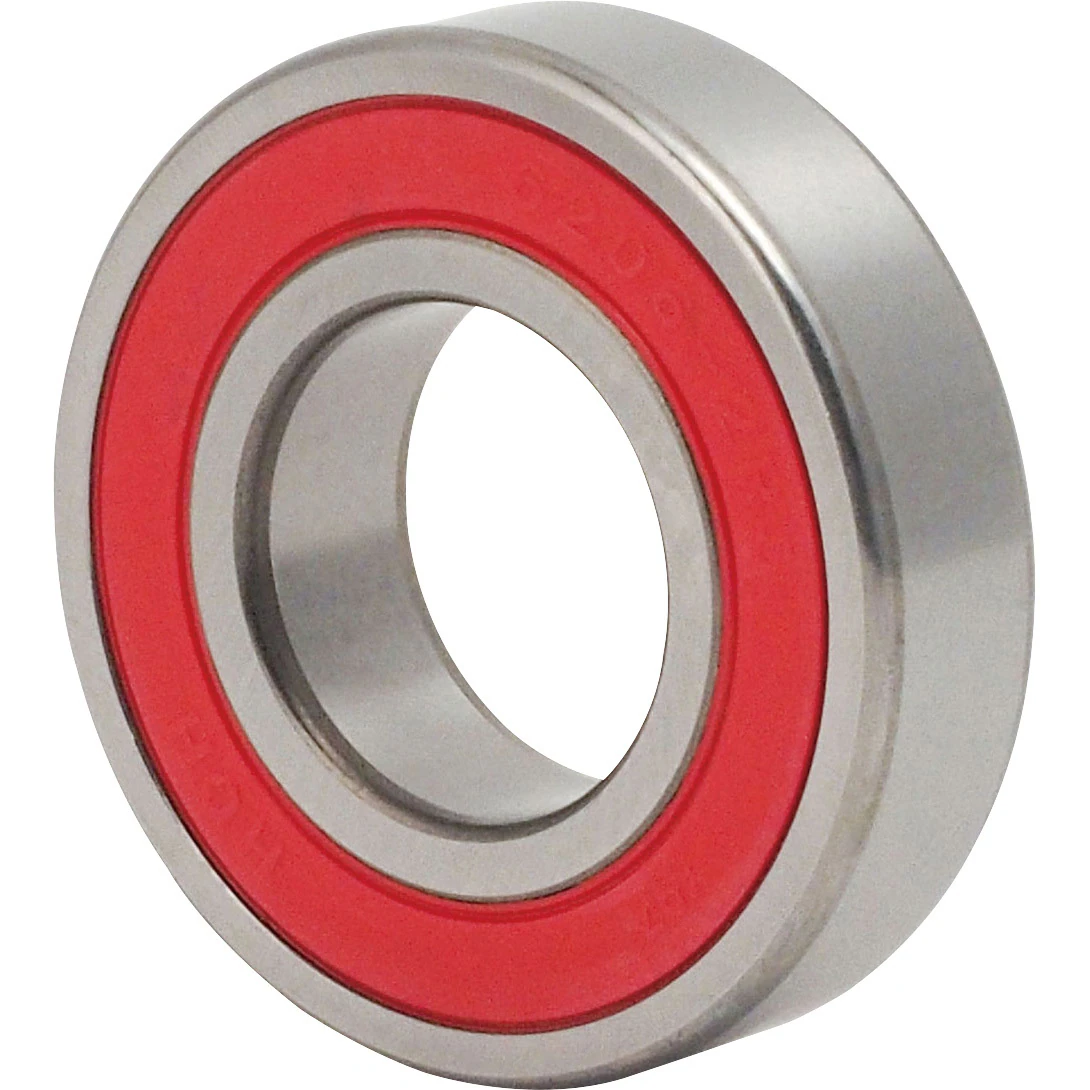

Description
Width B(mm): 16;
Outer diameter D (mm): 62;
Inner diameter d (mm): 30;
Chamfer dimension r(mm): 1;
Shield shape: Double-sided contact rubber seal type;
Raceway ring shape: Deep groove ball bearing;
Outer ring type: Flat;
Number of raceway ring rows: Single row;
Material (main body): High carbon chromium bearing steel;
Allowable rotational speed (/min [r.p.m]), grease lubrication: 7300;
Basic dynamic load rating Cr (N): 19500;
Basic static load rating Cor (N): 11300;
JIS grade: 0;
Load direction: Radial;
Rolling element material: High carbon chromium bearing steel;
Bearing series: 6200
