Description
Dimension A(mm): 16;
Dimension A0(mm): 22;
Dimension A1(mm): 8;
Dimension A2(mm): 8(plus or minus 0.5);
Dimension b (mm): 21;
Dimension h (mm): 90;
Dimension J(mm): 71(plus or minus 0.3);
Dimension l (mm): 55;
Dimension N(mm): 10;
Dimension S(mm): 7;
Bore diameter of the shaft hole d (mm): 20;

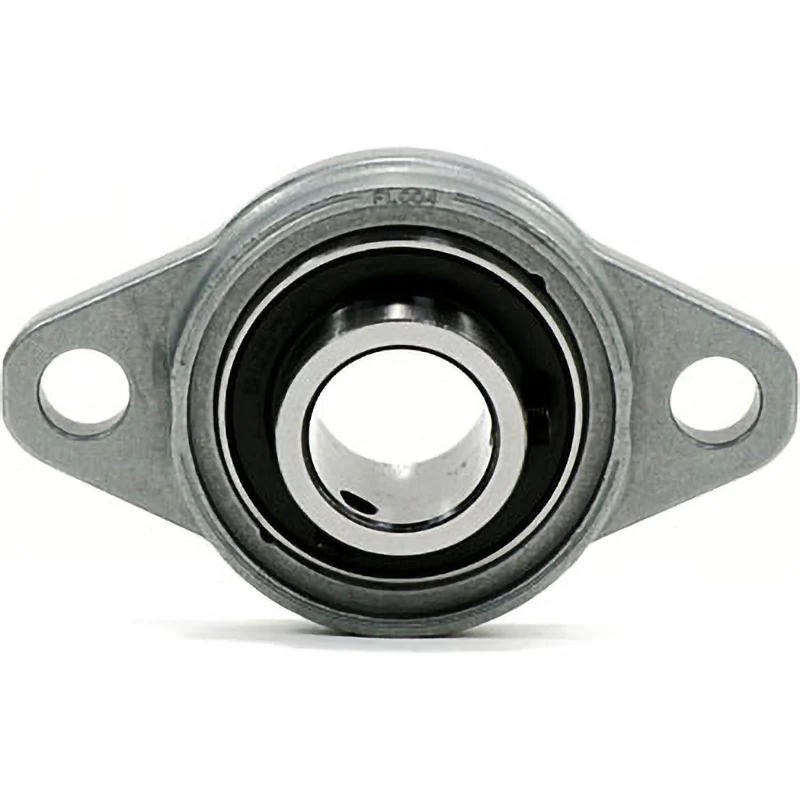

Shape: Diamond Flange Type;
Suitable for FL004;
Material: High carbon chromium bearing steel;
Shaft Hole Type: Cylindrical Bore Type (with Set Screw) ;
Bearing designation: SU004;
Nominal size of the mounting bolt: M8
Unit mass (kg): 0.18(For reference);
Basic dynamic load rating Cr (kN): 9.40;
Basic dynamic load rating Cor(kN): 5.05;
Coefficient: fo13.9;
Compliant with RoHS Directive (corresponding to 10 substances)
