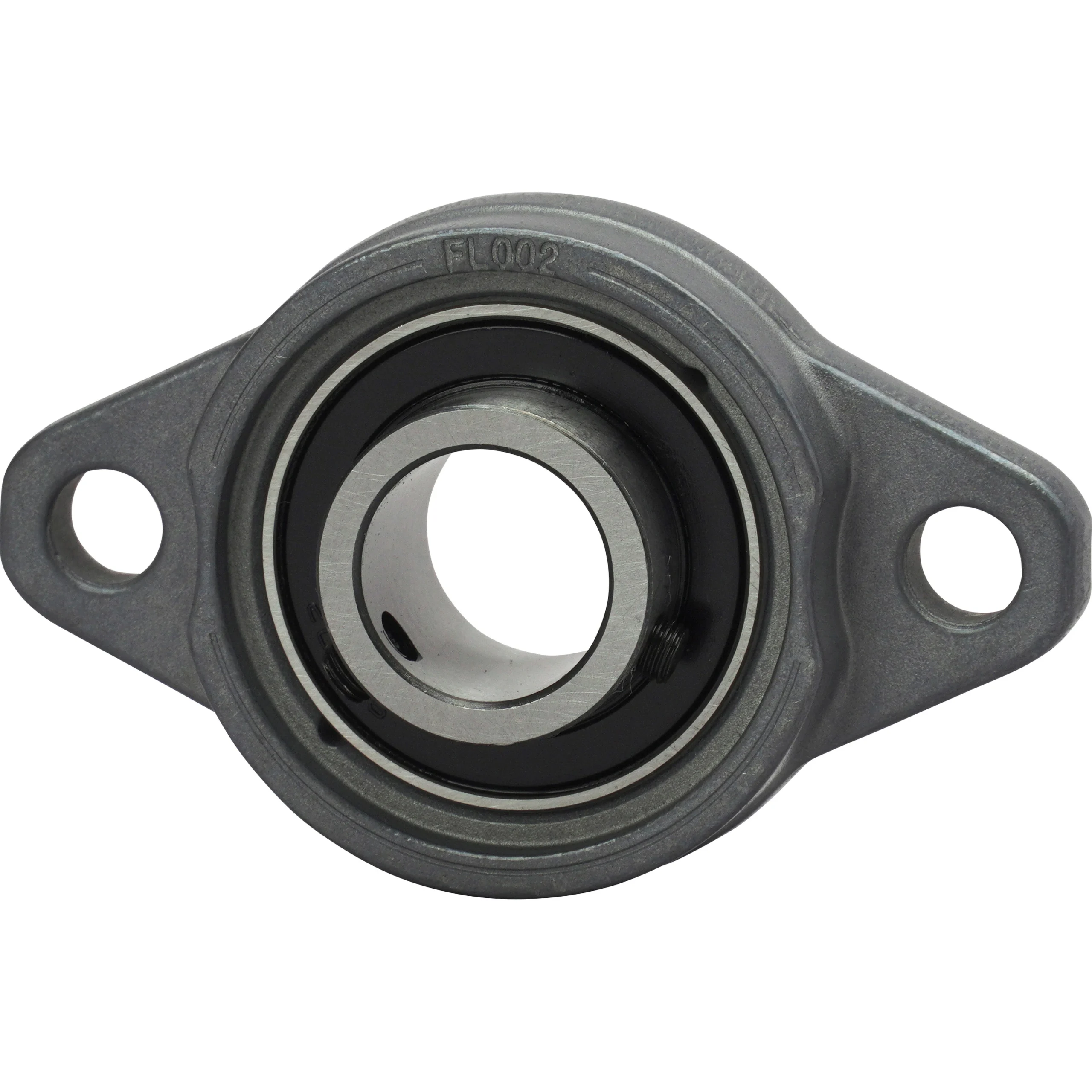

RS PRO UFL Small-sized and Lightweight Diamond Flange Type > UFL002

¥2,038

SKU: r22426261354c9 Category:

Description

Dimension A(mm): 13;
Dimension A0(mm): 17.5;
Dimension A1(mm): 6.5;
Dimension A2(mm): 6.5(plus or minus 0.5);
Dimension b (mm): 16.5;
Dimension h (mm): 67;
Dimension J(mm): 53(plus or minus 0.3);
Dimension l (mm): 42;
Dimension N(mm): 7;
Dimension S(mm): 5.5;
Bore diameter of the shaft hole d (mm): 15;
Shape: Diamond Flange Type;
Suitable for FL002;
Material: High carbon chromium bearing steel;
Shaft Hole Type: Cylindrical Bore Type (with Set Screw) ;
Bearing designation: SU002;
Nominal size of the mounting bolt: M6;
Unit mass (kg): 0.085(For reference);
Basic dynamic load rating Cr (kN): 5.60;
Basic dynamic load rating Cor(kN): 2.85;
Coefficient: fo13.9;
Compliant with RoHS Directive (corresponding to 10 substances)
