Description

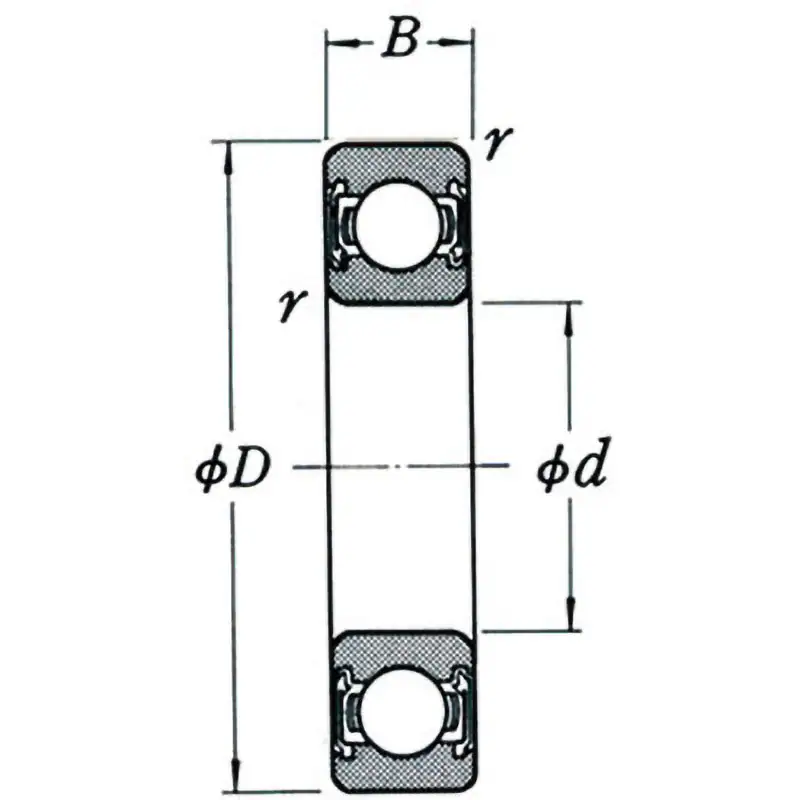

Width B (mm): 26;
Outer diameter D (mm): 160;
Dimension D1(mm): -;
Dimension D2(mm): -;
Dimension a(mm): -;
Dimension b (mm): -;
Inner diameter d (mm): 105;
Dimension f(mm): -;
Dimension r(mm): (minimum)2;
Dimension r0(mm): -;
Dimension rN(mm): -;
Mounting-related Dimension (Maximum Cx)(mm): -;
Mounting-related Dimension (Maximum Da)(mm): 151;
Mounting-related Dimension (Minimum Dx)(mm): -;
Mounting-related Dimension (Maximum da)(mm): 120;
Mounting-related Dimension (Minimum da)(mm): 114;
Mounting-related Dimension (Maximum ra)(mm): 2;
Shield shape: Double – sided non – contact seal type;
Raceway ring shape: Deep groove ball bearing;
Outer ring type: Flat;
Number of raceway ring rows: Single row;
Material: (Main body) High carbon chromium bearing steel;
Mass (g): 1580;
Coefficient: fo15.8;
Designation: 6021;
Allowable rotational speed (/min [r.p.m]) Grease lubrication: 4000;
JIS grade: 0;
Basic rated load Cor (N): 66000;
Basic rated load Cr (N): 72500;
Load direction: Radial;
Rolling element Material: High carbon chromium bearing steel;
Bearing series: 6000
