Description
Width B (mm): 18;
Outer diameter D (mm): 90;
Inner diameter d (mm): 55;
Chamfer dimension r (mm): 1.1(minimum);
Shield shape: Double – sided non – contact seal type;

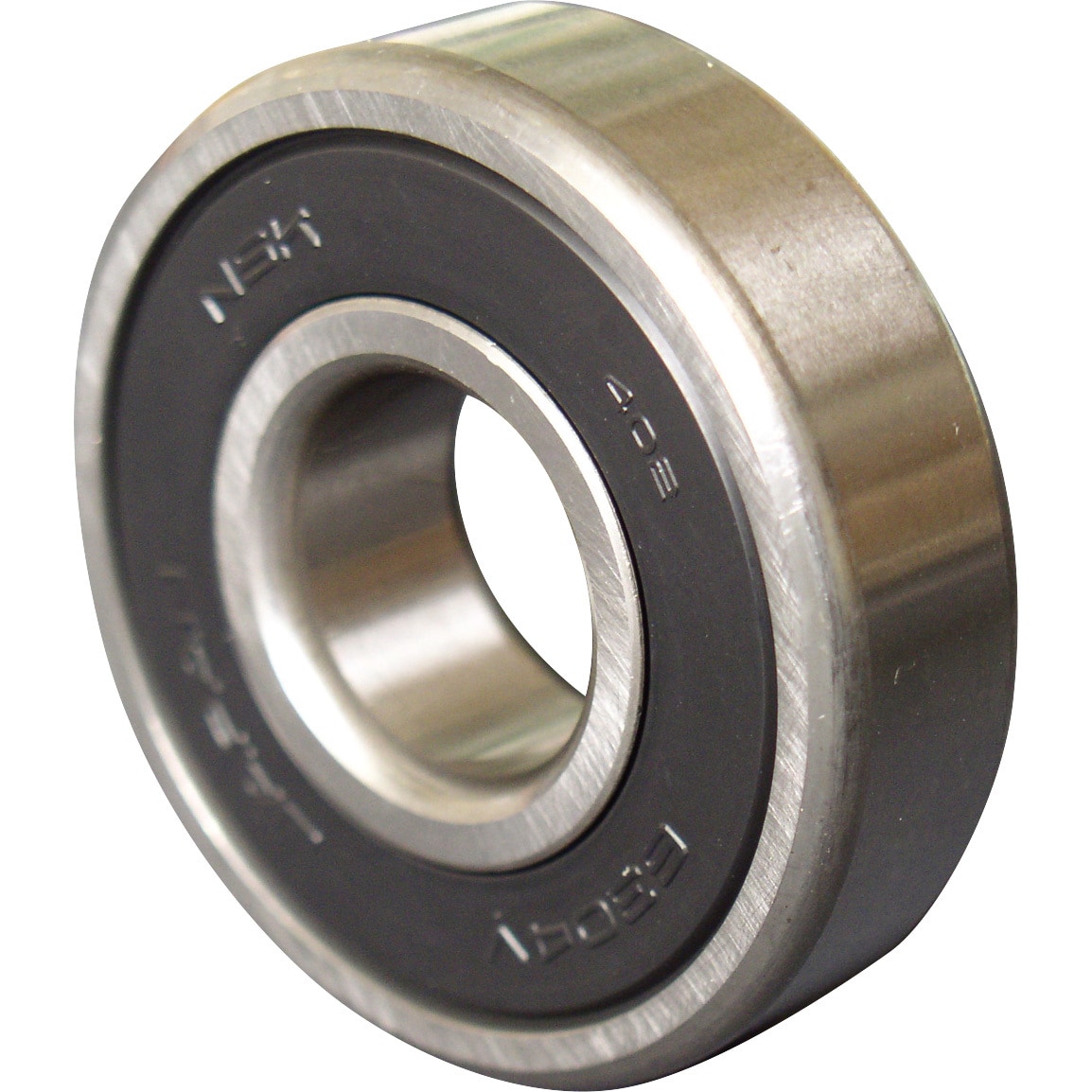

Raceway ring shape: Deep groove ball bearing;
Outer ring type: Flat;
Number of raceway ring rows: Single row;
Material: (Main body) High carbon chromium bearing steel;
Mass (g): 381;
Coefficient: 15.3;
Allowable rotational speed (/min [r.p.m]) Grease lubrication: 7500;
JIS grade: 0;
Basic rated load Cor (N): 21200;
Basic rated load Cr (N): 28300;
Load direction: Radial;
Rolling element Material: High carbon chromium bearing steel;
Bearing series: 6000
