Description

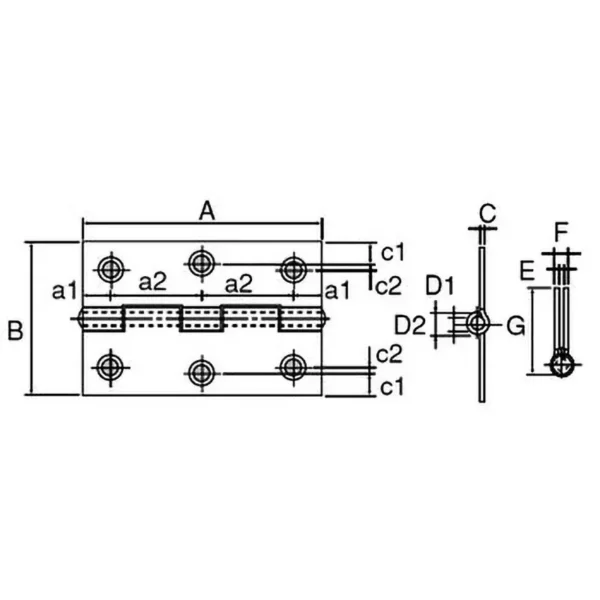

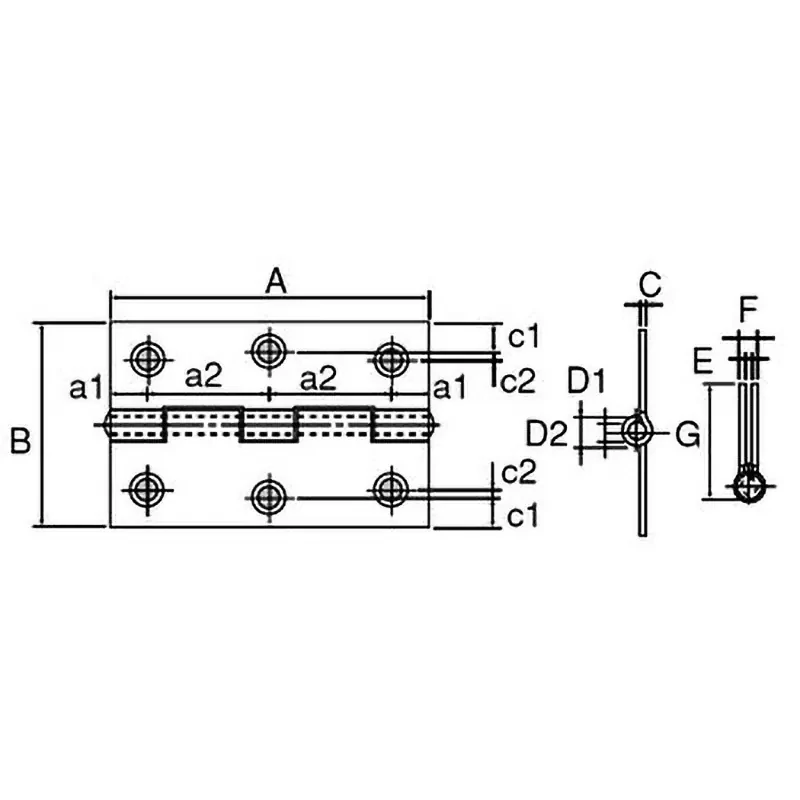

Dimension A (mm): 89
Dimension B (mm): 54
Dimension C (mm): 1.7
Dimension C1 (mm): 7.5
Dimension C2 (mm): 3.0
Dimension D1 (mm): 5.2
Dimension D2 (mm): 8.9
Dimension a1 (mm): 10.5
Dimension a2 (mm): 34.0
Material: Steel (SPCC)
Trusco Part Number: 233-6944
Weight (g): 940
Hole Diameter (mm): 5.4
Screw Length (mm): 25
Screw Diameter (mm): 3.8
Surface Treatment: Trivalent Chromium Plating Finish
Load Capacity (per 2 units) (kg): 16
Screw Holes: 6
