Description

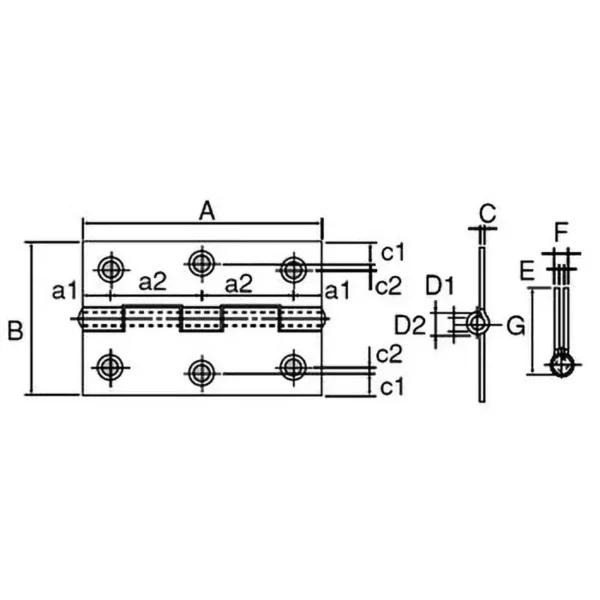

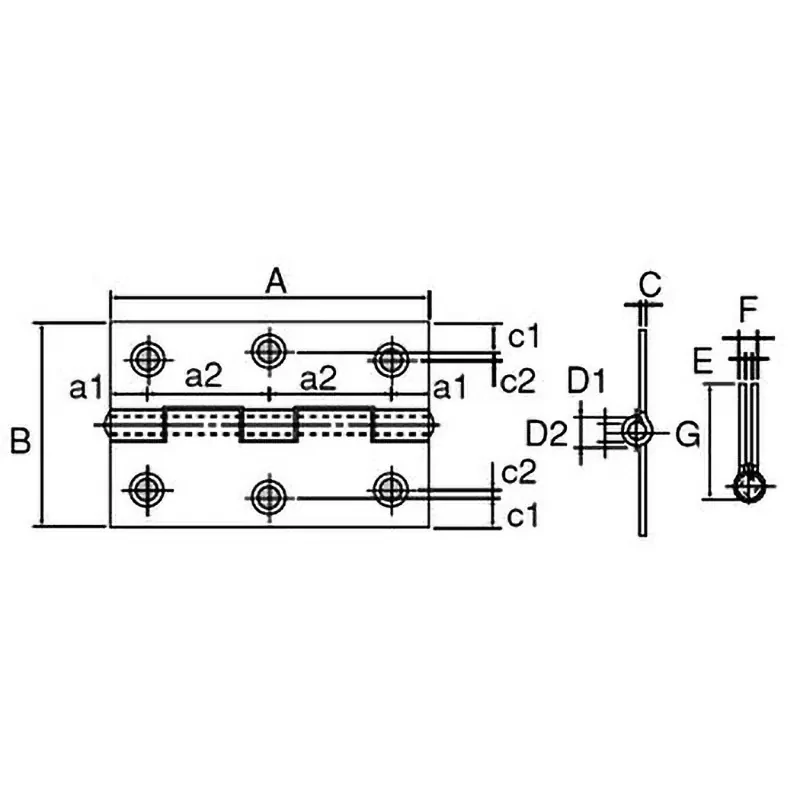

Dimension A (mm): 76
Dimension B (mm): 49
Dimension C (mm): 1.5
Dimension C1 (mm): 7.0
Dimension C2 (mm): 2.0
Dimension D1 (mm): 4.2
Dimension D2 (mm): 7.5
Dimension a1 (mm): 9.0
Dimension a2 (mm): 29.0
Material: Steel (SPCC)
Trusco Part Number: 233-6936
Weight (g): 600
Hole Diameter (mm): 5.2
Screw Length (mm): 22
Screw Diameter (mm): 3.5
Surface Treatment: Trivalent Chromium Plating Finish
Load Capacity (per 2 pieces) (kg): 12
Screw Hole: 6
