Description

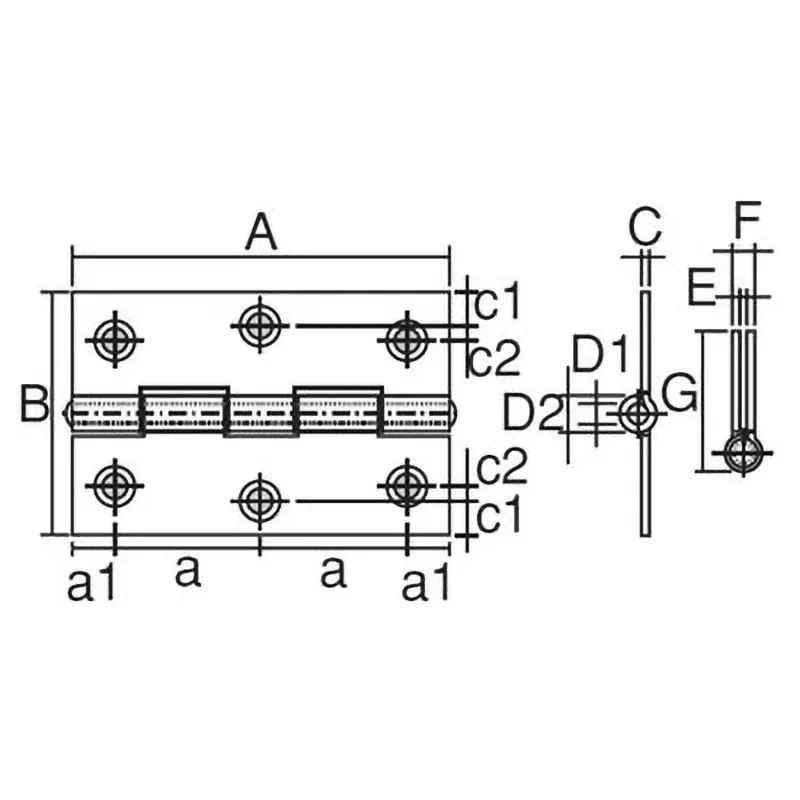

Dimension A (mm): 64
Dimension B (mm): 42
Dimension C (mm): 1.4
Dimension C1 (mm): 6.0
Dimension C2 (mm): 2.0
Dimension D1 (mm): 3.2
Dimension D2 (mm): 6.2
Dimension a1 (mm): 7.0
Dimension a2 (mm): 25.0
Material: Steel (SPCC)
Trusco Part Number: 233-6928
Weight (g): 370
Hole Diameter (mm): 5.0
Screw Length (mm): 20
Screw Diameter (mm): 3.1
Surface Treatment: Trivalent Chrome Plating Finish
Load Capacity (per pair) (kg): 8
Screw Holes: 6
