Description

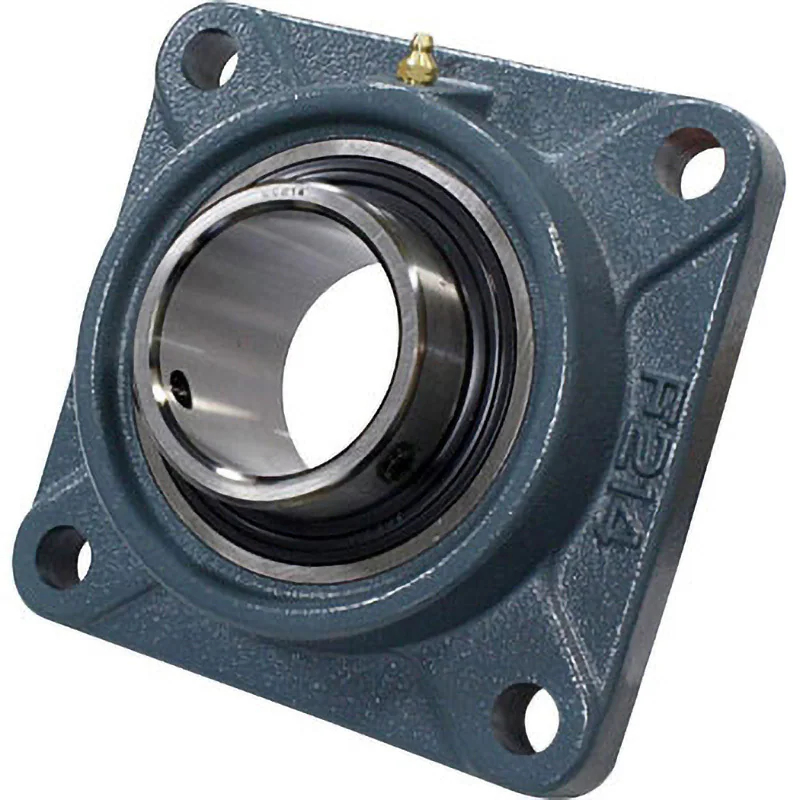

Shape: Square Flange Type Unit;
Shaft diameter (mm):70;
With grease nipple;
Load Type: With load;
Without cover;
Shaft Hole Type: Cylindrical Hole with Set Screw;
Dimension l (mm): 193;
Basic static load rating (kN): 44;
Basic dynamic load rating (kN): 62;
Nominal size of the mounting bolt: M16
Dimension A(mm): 54;
Dimension S(mm): 30.2;
Dimension b (mm): 74.6;
Dimension N(mm): 19;
Dimension J(mm): 152;
Dimension A1(mm): 24;
Dimension A2(mm): 31;
Dimension A0(mm): 75.4;
Dimension A4(mm): -;
Dimension A5(mm): 98;
Dimension A6(mm): -;
Dimension A7(mm): 16;
Compliant with RoHS Directive (corresponding to 10 substances)
