Description

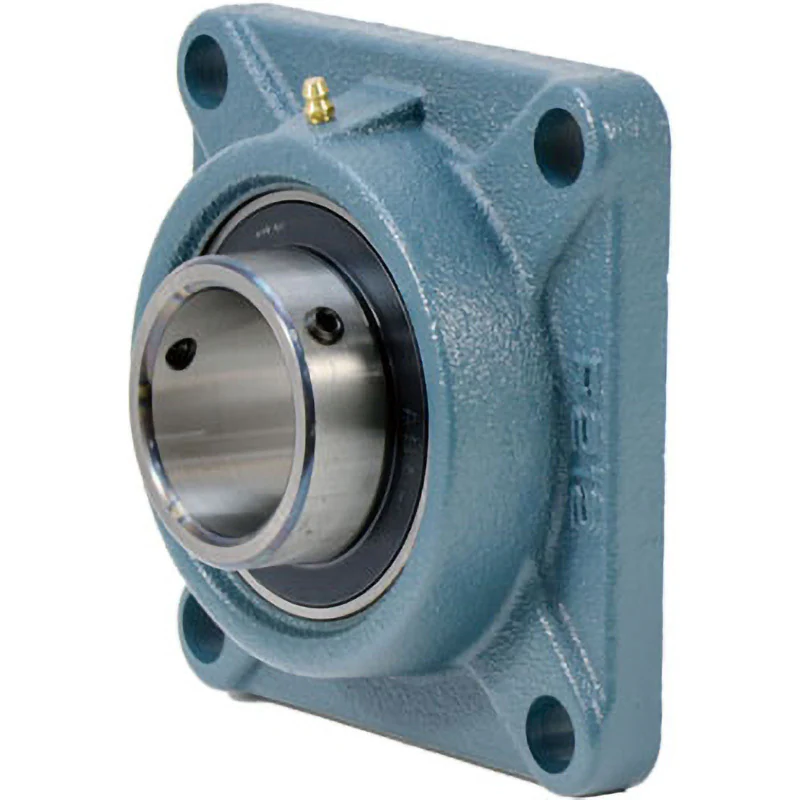

Shape: Square Flange Type Unit;
Shaft diameter (mm):60;
With grease nipple;
Load Type: With load;
Without cover;
Shaft Hole Type: Cylindrical Hole with Set Screw;
Dimension l (mm): 175;
Basic static load rating (kN): 36.1;
Basic dynamic load rating (kN): 52.5;
Nominal size of the mounting bolt: M16
Dimension A(mm): 48;
Dimension S(mm): 25.4;
Dimension b (mm): 65.1;
Dimension N(mm): 19;
Dimension J(mm): 143;
Dimension A1(mm): 20;
Dimension A2(mm): 29;
Dimension A0(mm): 68.7;
Dimension A4(mm): 80;
Dimension A5(mm): 86;
Dimension A6(mm): 10;
Dimension A7(mm): 11;
Compliant with RoHS Directive (corresponding to 10 substances)
