Description

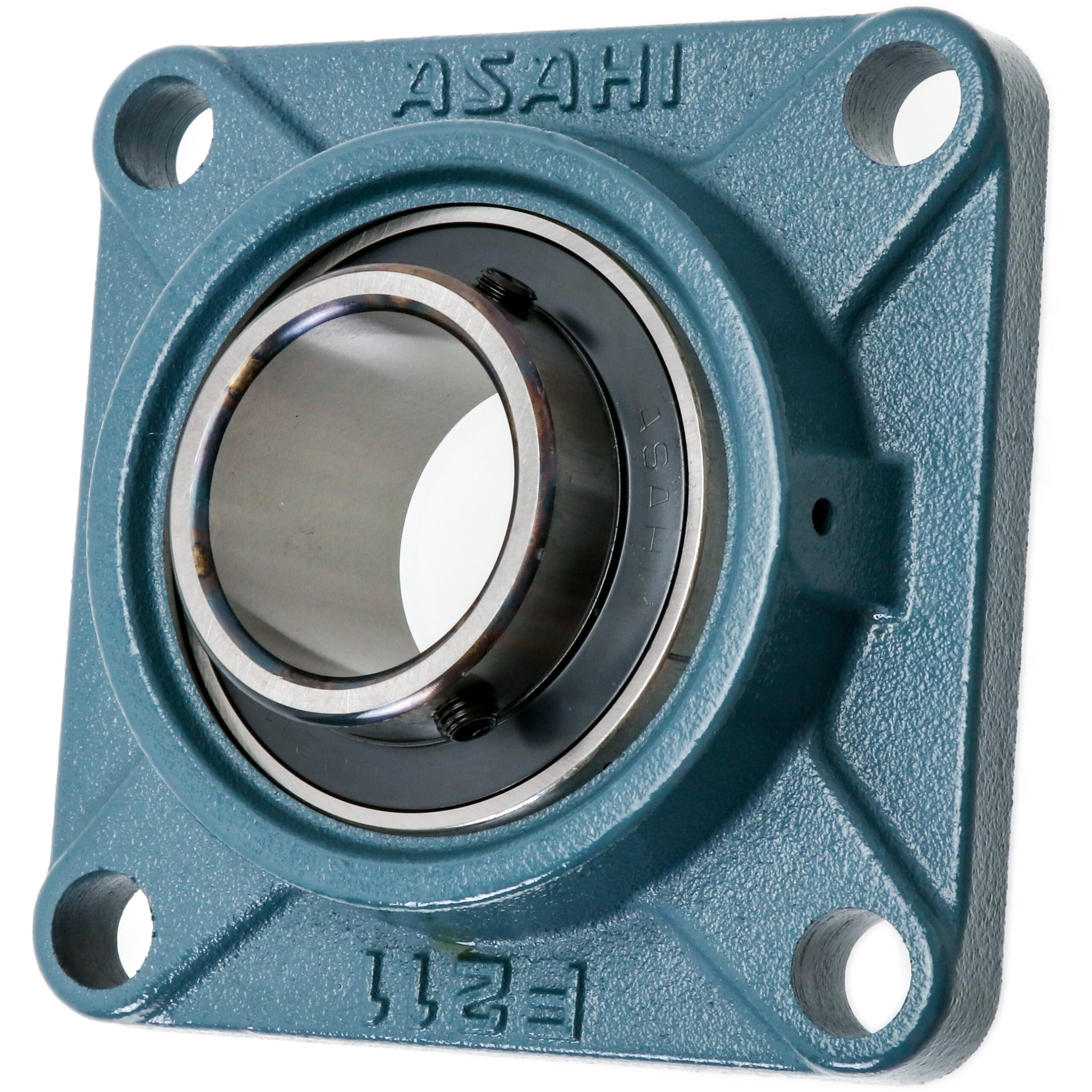

Shape: Square Flange Type Unit;
Shaft diameter (mm):?55;
With grease nipple;
Load Type: With load;
Without cover;
Shaft Hole Type: Cylindrical Hole with Set Screw;
Dimension l (mm): 162;
Basic static load rating (kN): 29.4;
Basic dynamic load rating (kN): 43;
Nominal size of the mounting bolt: M16
Dimension A(mm): 43;
Dimension S(mm): 22.2;
Dimension b (mm): 55.6;
Dimension N(mm): 19;
Dimension J(mm): 130;
Dimension A1(mm): 20;
Dimension A2(mm): 25;
Dimension A0(mm): 58.4;
Dimension A4(mm): 69;
Dimension A5(mm): 75;
Dimension A6(mm): 9;
Dimension A7(mm): 10;
Compliant with RoHS Directive (corresponding to 10 substances)
