Description

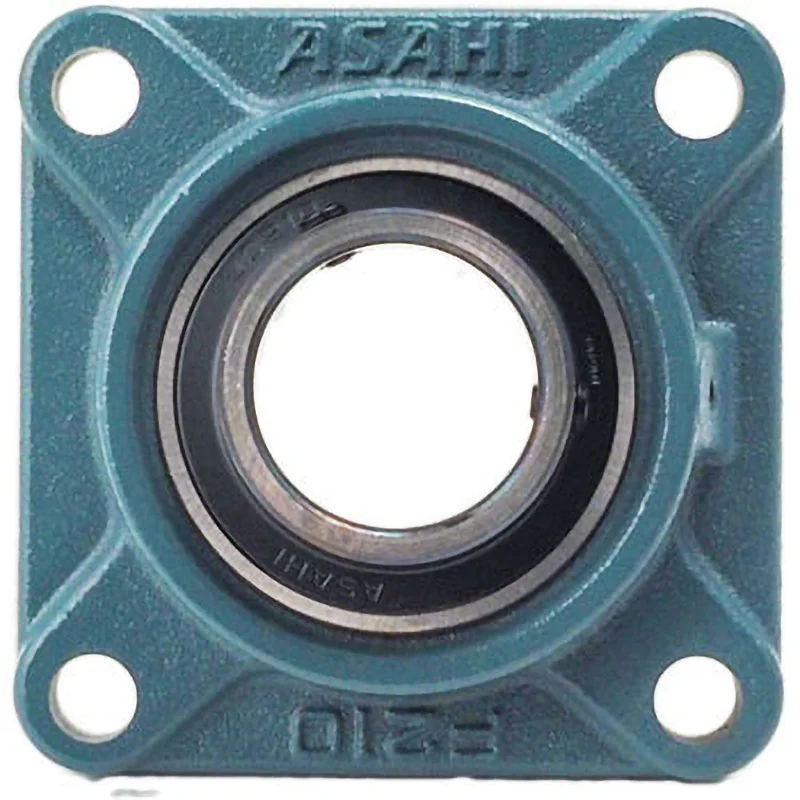

Shape: Square Flange Type Unit;
Shaft diameter (mm):50;
With grease nipple;
Load Type: With load;
Without cover;
Shaft Hole Type: Cylindrical Hole with Set Screw;
Mass (kg): 2.36;
Dimension l (mm): 143;
Basic static load rating (kN): 23.2;
Basic dynamic load rating (kN): 35.5;
Nominal size of the mounting bolt: M14;
Dimension A(mm): 40;
Dimension S(mm): 19;
Dimension b (mm): 51.6;
Dimension N(mm): 16;
Dimension J(mm): 111;
Dimension A1(mm): 18;
Dimension A2(mm): 22;
Dimension A0(mm): 54.6;
Bearing Designation: UC210;
Standard Bearing housing designation: F210;
Compliant with RoHS Directive (corresponding to 10 substances)
