Description

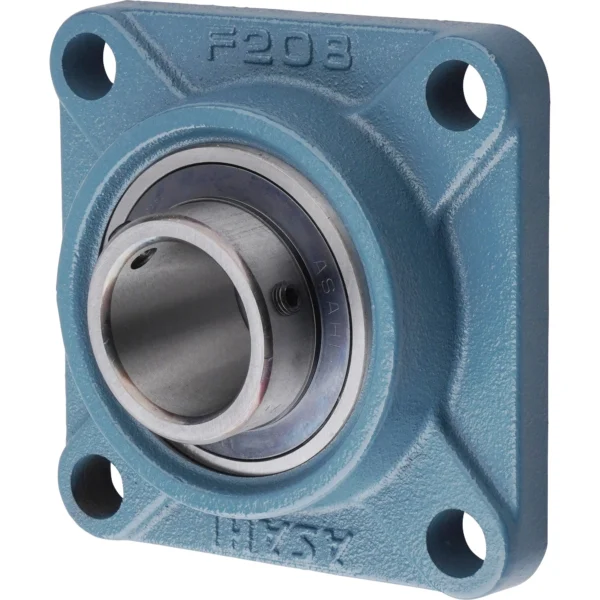

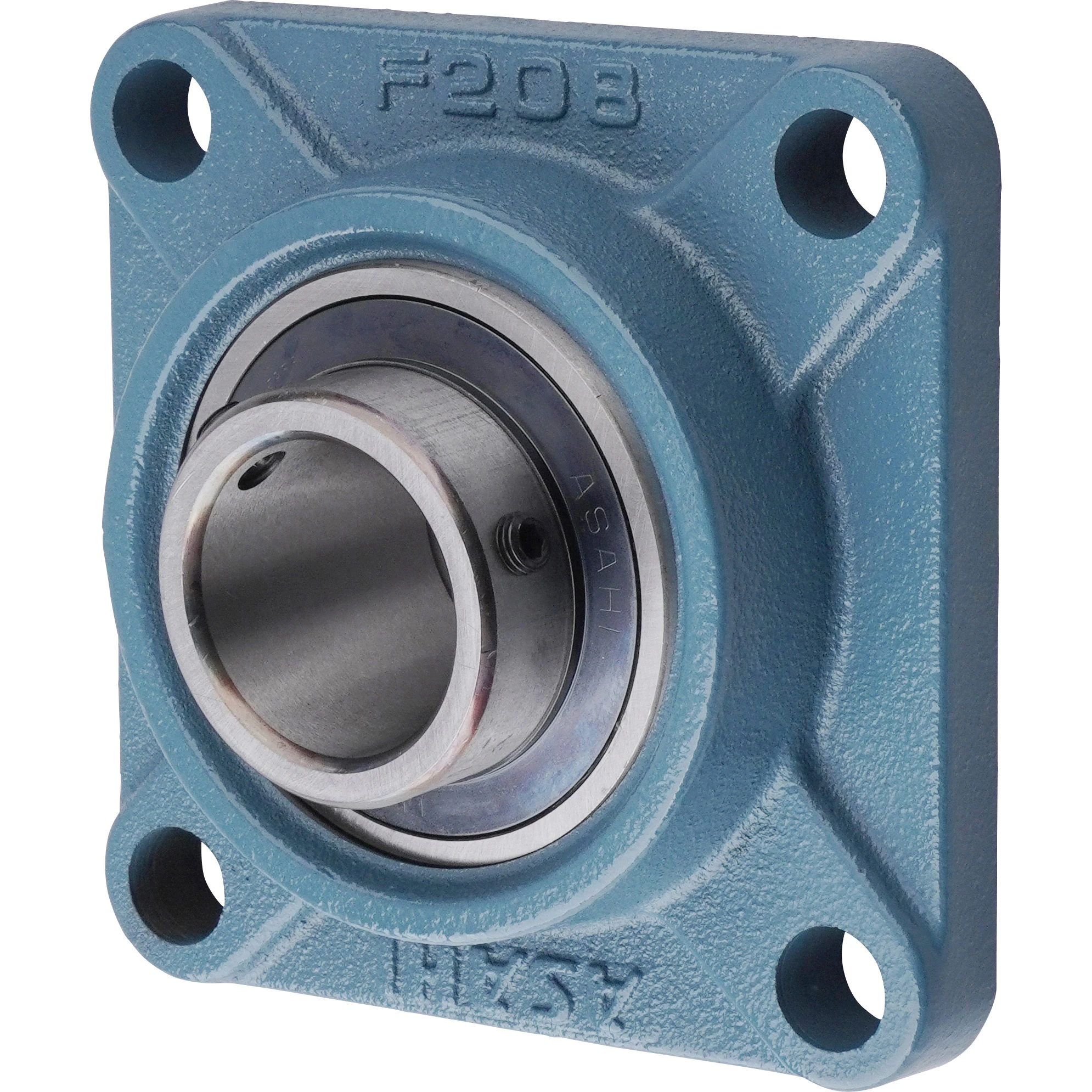

Shape: Square Flange Type Unit;
Shaft diameter (mm):40;
With grease nipple;
Load Type: With load;
Without cover;
Shaft Hole Type: Cylindrical Hole with Set Screw;
Mass (kg): 1.77;
Dimension l (mm): 130;
Basic static load rating (kN): 17.9;
Basic dynamic load rating (kN): 29.3;
Nominal size of the mounting bolt: M14;
Dimension A(mm): 36;
Dimension S(mm): 19;
Dimension b (mm): 49.2;
Dimension N(mm): 16;
Dimension J(mm): 102;
Dimension A1(mm): 16;
Dimension A2(mm): 21;
Dimension A0(mm): 51.2;
Bearing Designation: UC208;
Standard Bearing housing designation: F208;
Compliant with RoHS Directive (corresponding to 10 substances)
