Description

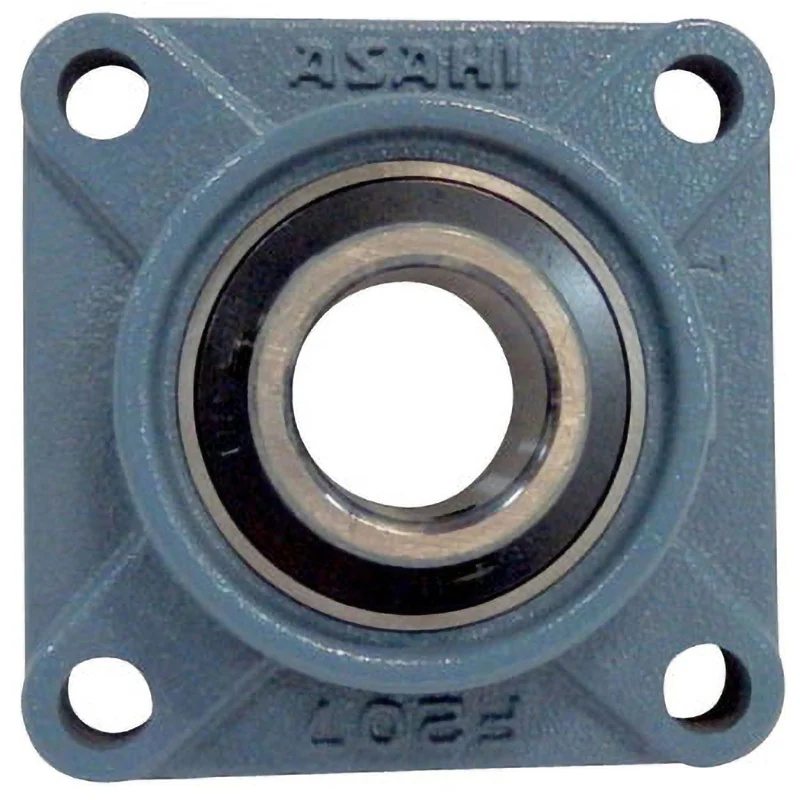

Shape: Square Flange Type Unit;
Shaft diameter (mm):35;
With grease nipple;
Load Type: With load;
Without cover;
Shaft Hole Type: Cylindrical Hole with Set Screw;
Mass (kg): 1.38;
Dimension l (mm): 117;
Basic static load rating (kN): 15.4;
Basic dynamic load rating (kN): 25.9;
Nominal size of the mounting bolt: M12
Dimension A(mm): 34;
Dimension S(mm): 17.5;
Dimension b (mm): 42.9;
Dimension N(mm): 14;
Dimension J(mm): 92;
Dimension A1(mm): 16;
Dimension A2(mm): 19;
Dimension A0(mm): 44.4;
Bearing Designation: UC207;
Standard Bearing housing designation: F207;
Compliant with RoHS Directive (corresponding to 10 substances)
