Description

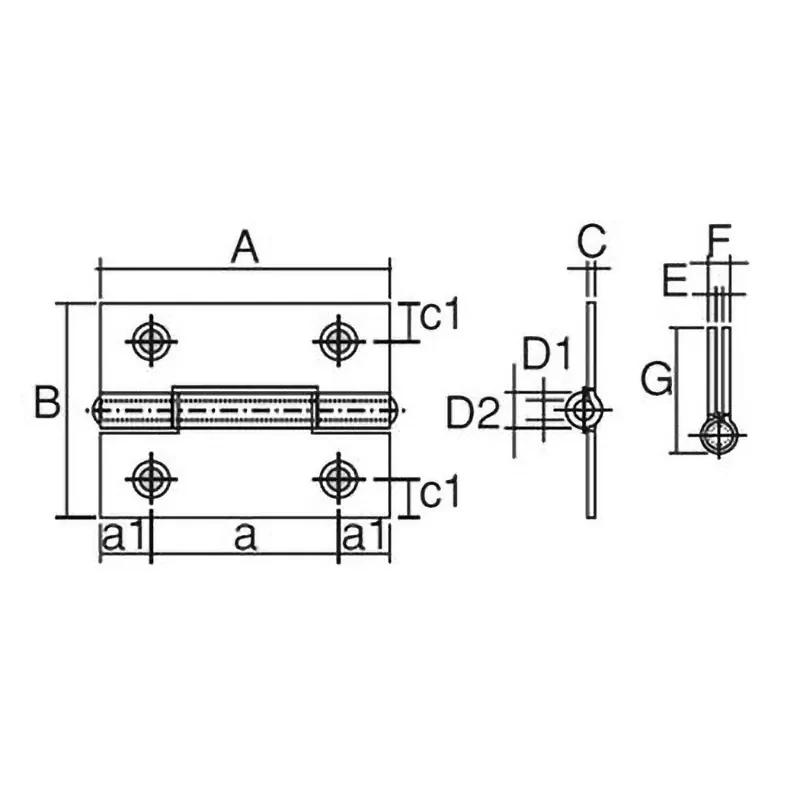

Dimension A (mm): 51
Dimension B (mm): 38
Dimension C (mm): 1.3
Dimension C1 (mm): 7.0
Dimension C2 (mm): –
Dimension D1 (mm): 3.2
Dimension D2 (mm): 6.0
Dimension a1 (mm): 7.5
Dimension a2 (mm): 36.0
Material: Steel (SPCC)
Trusco Part Number: 233-6910
Weight (g): 270
Hole Diameter (mm): 4.2
Screw Length (mm): 16
Screw Diameter (mm): 2.7
Surface Treatment: Trivalent Chromium Plating Finish
Load Capacity (per 2 pieces) (kg): 5
Screw Holes: 4
