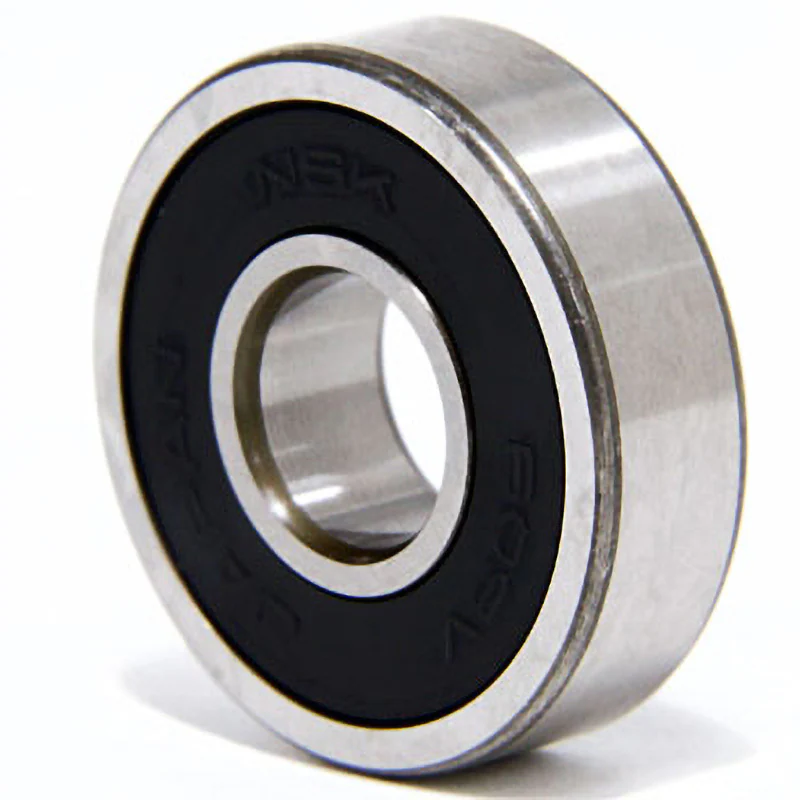

Description
Inner diameter d (mm): 9;
Outer diameter D (mm): 24;
Width B1 (mm): 7;
Material: (Main body) High carbon chromium bearing steel;
Chamfer Dimension r1 (mm): 0.3;
Allowable rotational speed (/min [r.p.m]) Grease lubrication: 32000;
JIS grade: 0;
Basic rated load Cor (N): 1430;
Basic rated load Cr (N): 3350;
Shield shape: Double – sided non – contact seal type;
Load direction: Radial;
Outer ring type: Flat;
Raceway ring shape: Deep groove ball bearing;
Number of raceway ring rows: Single row;
Rolling element Material: High carbon chromium bearing steel;
Bearing series: 600
