Description
Usage: For supporting the roll;
Material: Bearing: High carbon chromium stee,
Bearing housing: Grey cast iron;
Shaft diameter (mm):?50;

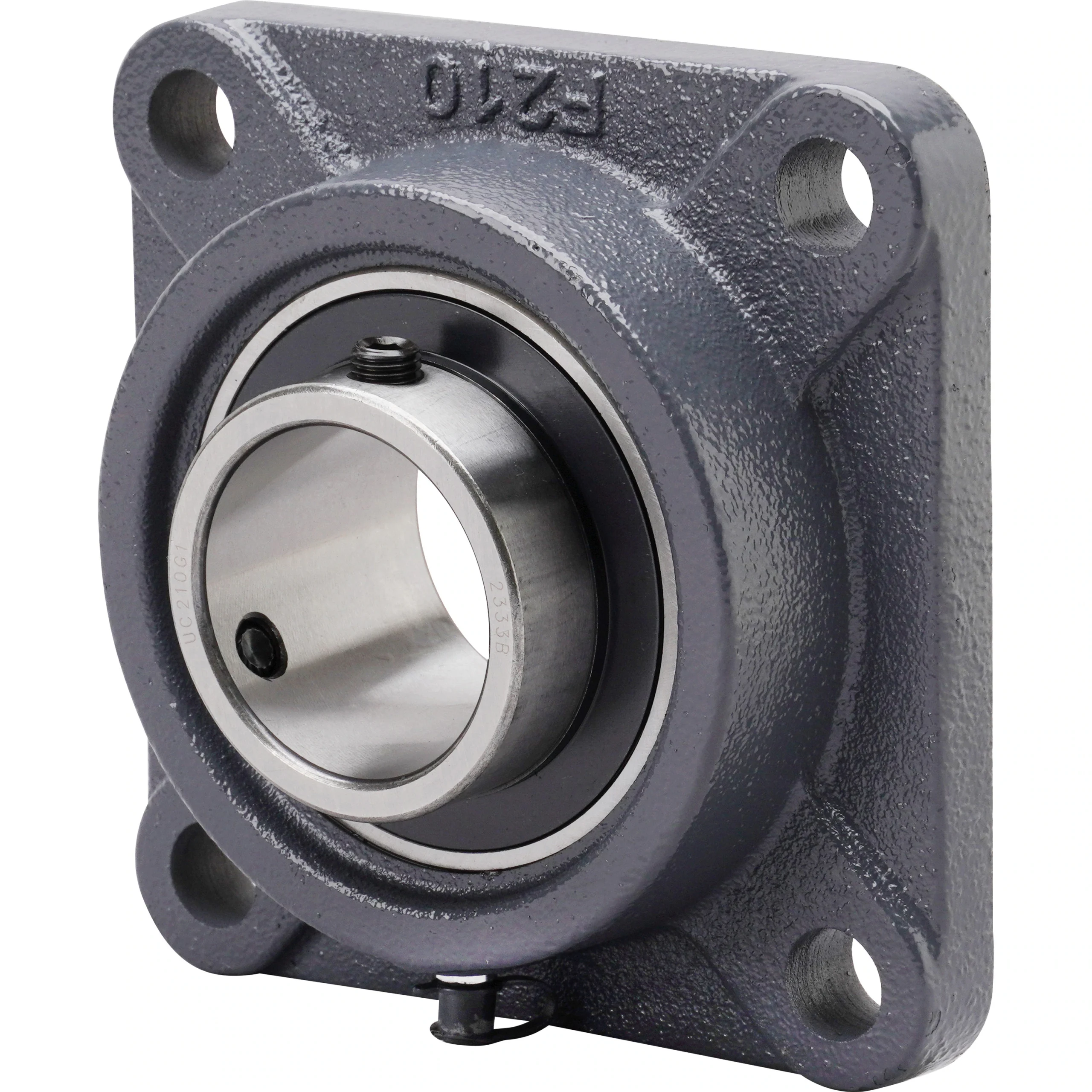

Shape: Square Flange Type;
Mass (kg): 2.45;
Dimension l (mm): 143;
Basic static load rating (kN): 23.1;
Basic dynamic load rating (kN): 35;
Nominal size of the mounting bolt: M14;
Dimension A(mm): 40;
Dimension S(mm): 19;
Dimension b (mm): 51.6;
Dimension N(mm): 16;
Dimension J(mm): 111;
Dimension A1(mm): 16;
Dimension A2(mm): 22;
Dimension A0(mm): 54.6
