Description
Usage: For supporting the roll;
Material: Bearing: High carbon chromium stee,
Bearing housing: Grey cast iron;
Shaft diameter (mm):?45;

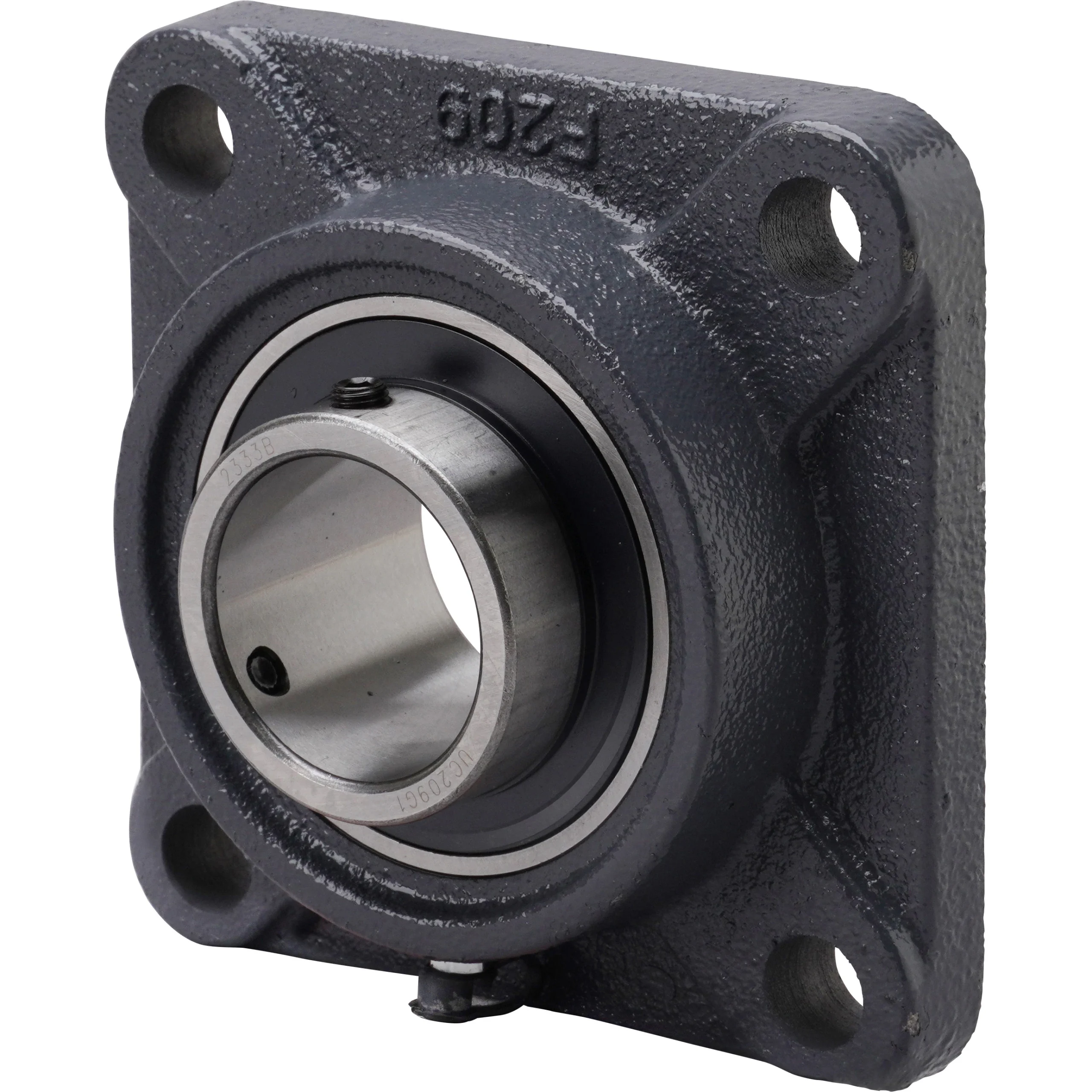

Shape: Square Flange Type;
Mass (kg): 2.15;
Dimension l (mm): 137;
Basic static load rating (kN): 20.4;
Basic dynamic load rating (kN): 32.7;
Nominal size of the mounting bolt: M14;
Dimension A(mm): 38;
Dimension S(mm): 19;
Dimension b (mm): 49.2;
Dimension N(mm): 16;
Dimension J(mm): 105;
Dimension A1(mm): 16;
Dimension A2(mm): 22;
Dimension A0(mm): 52.2
