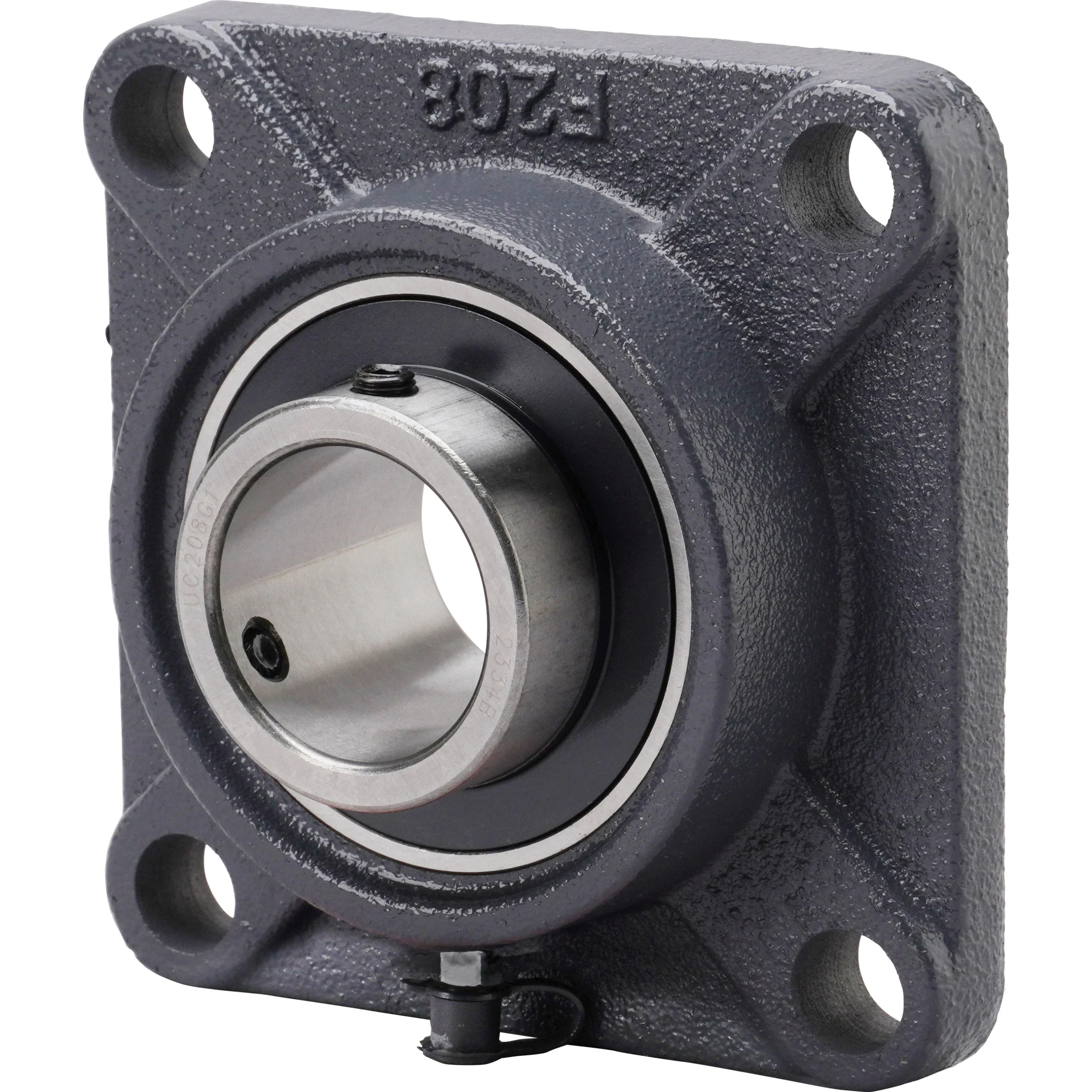

Description
Usage: For supporting the roll;
Material: Bearing: High carbon chromium stee,
Bearing housing: Grey cast iron;
Shaft diameter (mm):?40;
Shape: Square Flange Type;
Mass (kg): 1.87;
Dimension l (mm): 130;
Basic static load rating (kN): 19.8;
Basic dynamic load rating (kN): 32.6;
Nominal size of the mounting bolt: M14;
Dimension A(mm): 36;
Dimension S(mm): 19;
Dimension b (mm): 49.2;
Dimension N(mm): 16;
Dimension J(mm): 102;
Dimension A1(mm): 15;
Dimension A2(mm): 21;
Dimension A0(mm): 51.2
