Description
Usage: For supporting the roll;
Material: Bearing: High carbon chromium stee,
Bearing housing: Grey cast iron;
Shaft diameter (mm):?35;

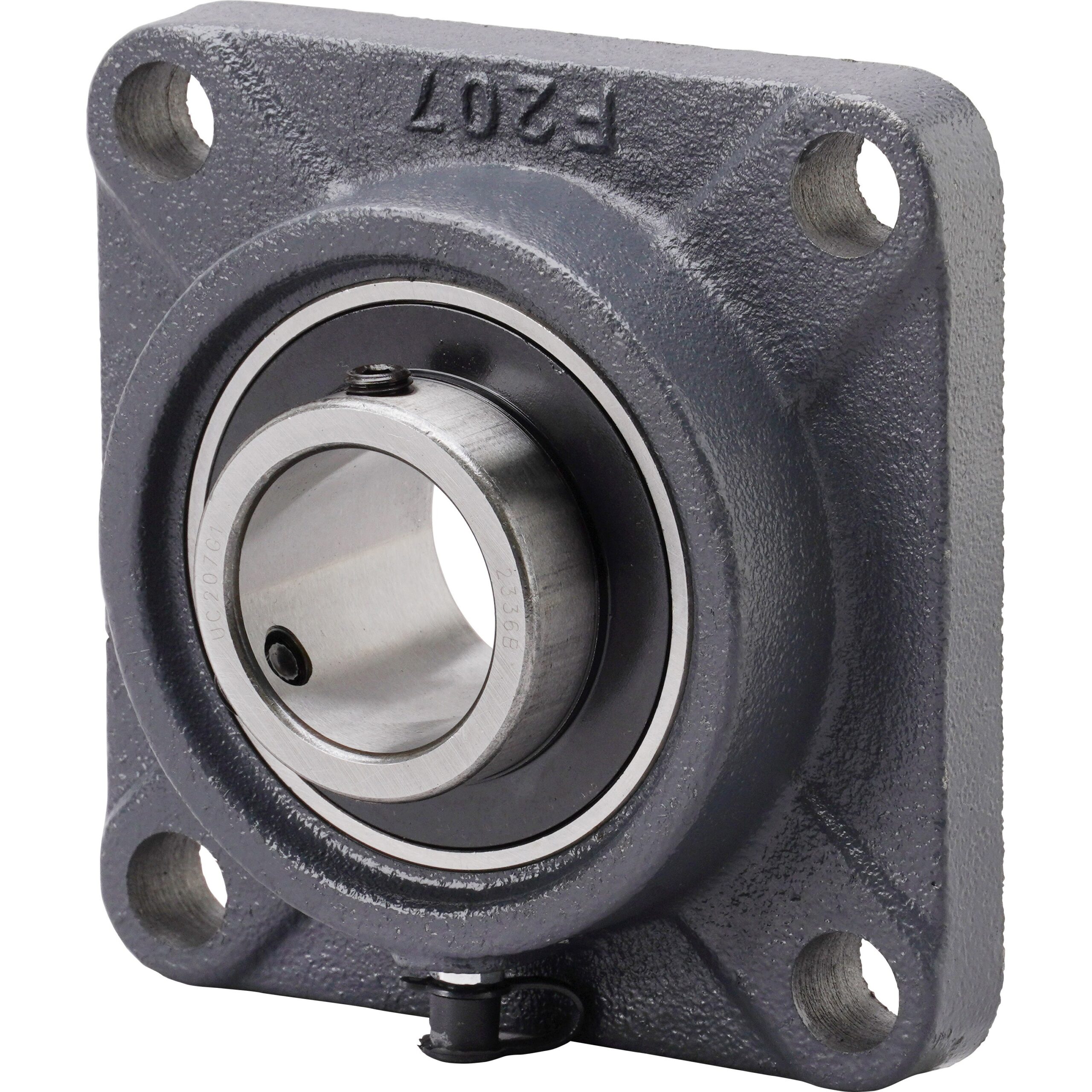

Shape: Square Flange Type;
Mass (kg): 1.42;
Dimension l (mm): 117;
Basic static load rating (kN): 15.2;
Basic dynamic load rating (kN): 25.6;
Nominal size of the mounting bolt: M12
Dimension A(mm): 34;
Dimension S(mm): 17.5;
Dimension b (mm): 42.9;
Dimension N(mm): 14;
Dimension J(mm): 92;
Dimension A1(mm): 15;
Dimension A2(mm): 19;
Dimension A0(mm): 44.4
