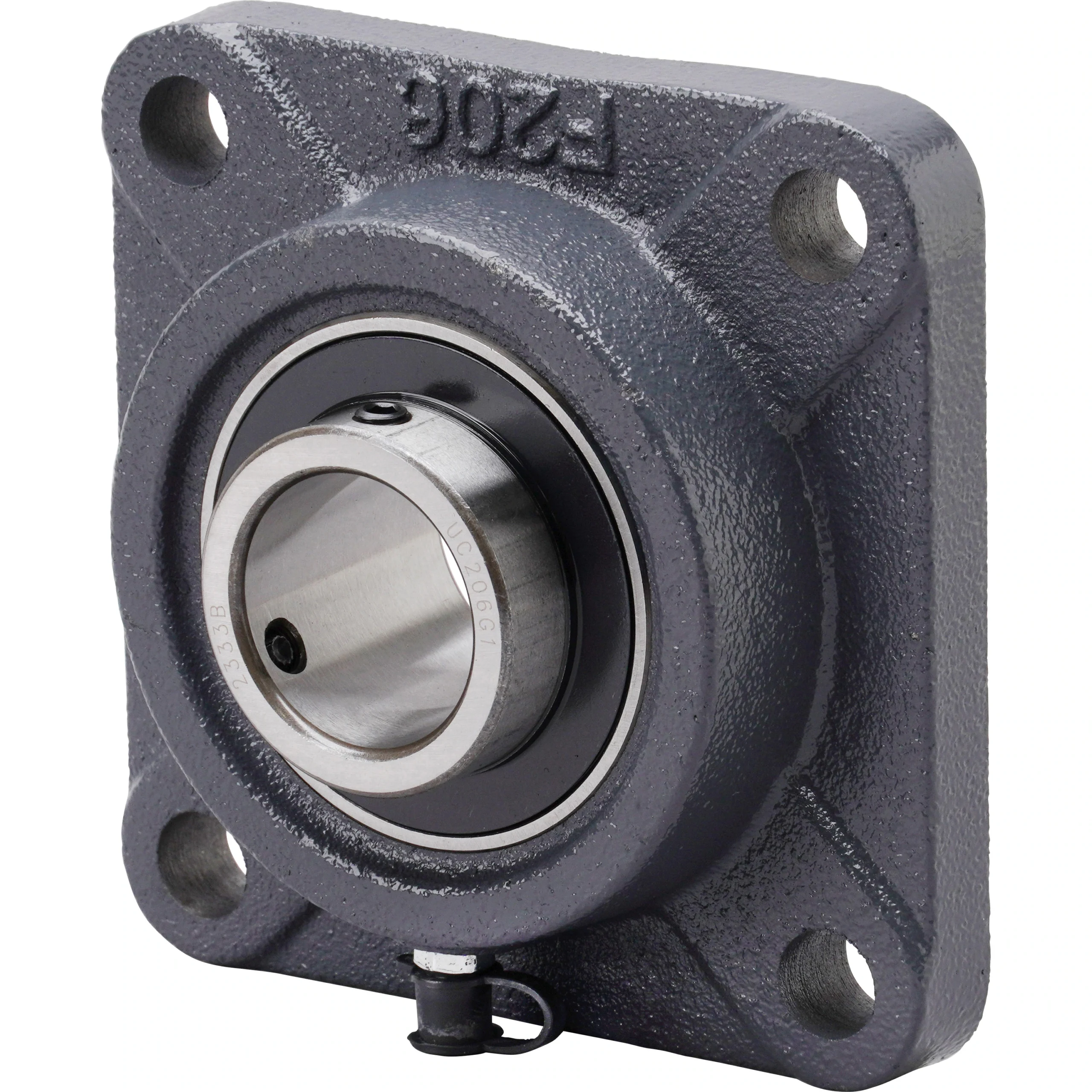

Description
Usage: For supporting the roll;
Material: Bearing: High carbon chromium stee,
Bearing housing: Grey cast iron;
Shaft diameter (mm):?30;
Shape: Square Flange Type;
Mass (kg): 1.13;
Dimension l (mm): 108;
Basic static load rating (kN): 11.2;
Basic dynamic load rating (kN): 19.4;
Nominal size of the mounting bolt: M10
Dimension A(mm): 31;
Dimension S(mm): 15.9;
Dimension b (mm): 38.1;
Dimension N(mm): 12;
Dimension J(mm): 83;
Dimension A1(mm): 13;
Dimension A2(mm): 18;
Dimension A0(mm): 40.2
