Description
Usage: For supporting the roll;
Material: Bearing: High carbon chromium stee,
Bearing housing: Grey cast iron;
Shaft diameter (mm):?25;

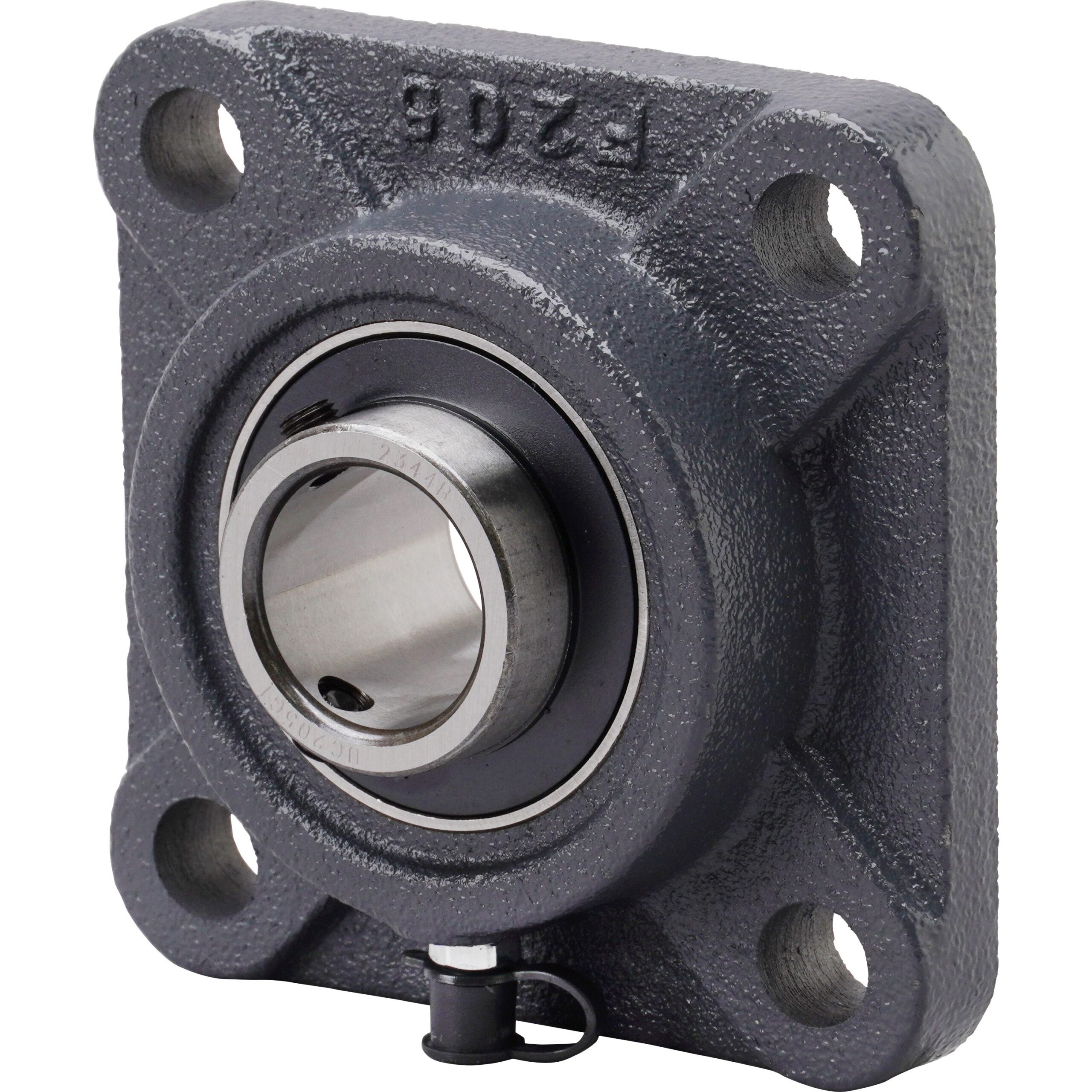

Shape: Square Flange Type;
Mass (kg): 0.82;
Dimension l (mm): 95;
Basic static load rating (kN): 7.8;
Basic dynamic load rating (kN): 14;
Nominal size of the mounting bolt: M10
Dimension A(mm): 27;
Dimension S(mm): 14.3;
Dimension b (mm): 34.1;
Dimension N(mm): 12;
Dimension J(mm): 70;
Dimension A1(mm): 13;
Dimension A2(mm): 16;
Dimension A0(mm): 35.8
