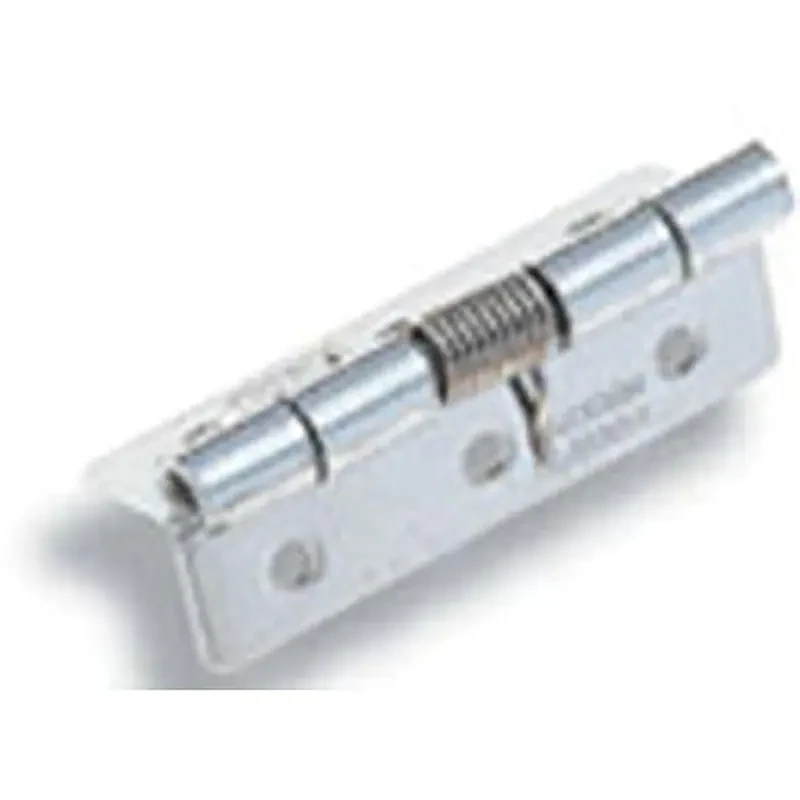

Description

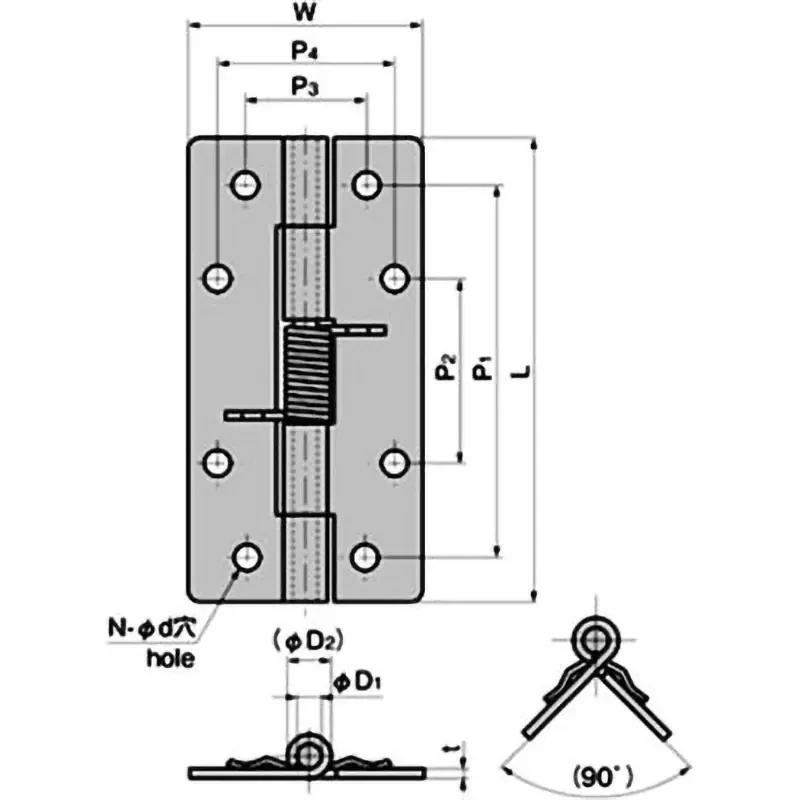

Dimension D1 (mm): 5
Dimension D2 (mm): 8.5
Dimension L (mm): 60
Dimension N (mm): 6
Dimension P1 (mm): 40
Dimension P2 (mm): –
Dimension P3 (mm): 26
Dimension P4 (mm): 26
Dimension W (mm): 40
Dimension d (mm): 4.3
Dimension t (mm): 1.5
Applications: Ships, Vehicles, Food Machinery
Material: Cold Rolled Stainless Steel Plate (SUS304)
Mass (g): 44
Surface Finish: Glossy Barrel Polishing
Takigen Code: 11284
Rated Torque (cN*m): 90 degrees: 36.7, 180 degrees: 21.6
Excellent corrosion resistance due to Stainless Steel.
Strong spring pressure type of B-1046.
