Description

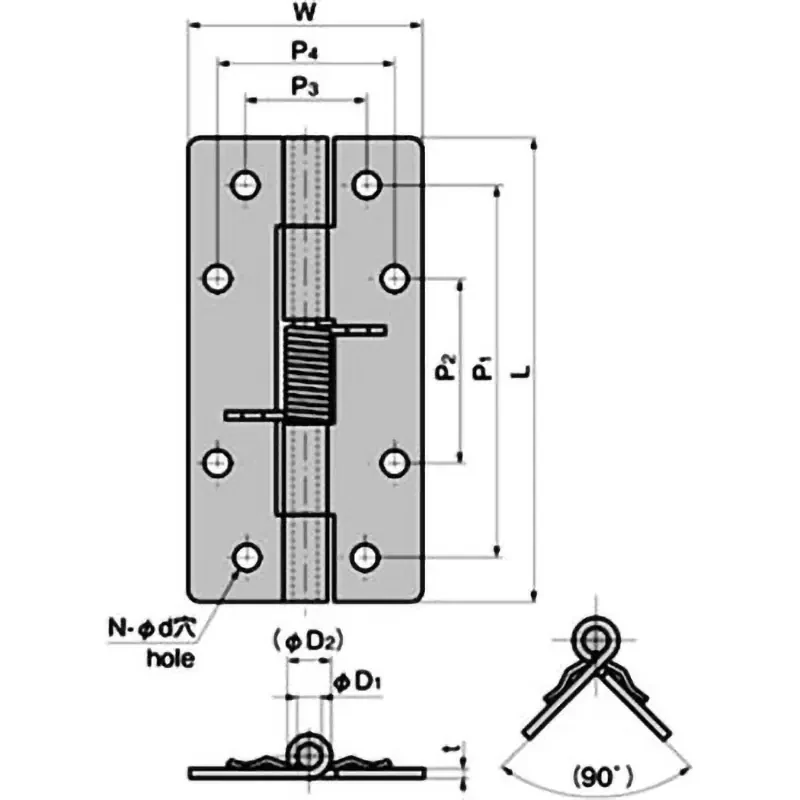

Dimension D1 (mm): 5
Dimension D2 (mm): 9.5
Dimension L (mm): 80
Dimension N (mm): 6
Dimension P1 (mm): 50
Dimension P2 (mm): –
Dimension P3 (mm): 26
Dimension P4 (mm): 38
Dimension W (mm): 50
Dimension d (mm): 5.3
Dimension t (mm): 2
Application: Marine Vehicles Food Machinery
Material: Cold Rolled Stainless Steel Plate (SUS304)
Weight (g): 86
Surface Finish: Gloss Barrel Polishing
Takigen Code: 11283
Rated Torque (cN*m): 90 degrees: 55.1, 180 degrees: 32.1
Excellent Corrosion Resistance with Stainless Steel.

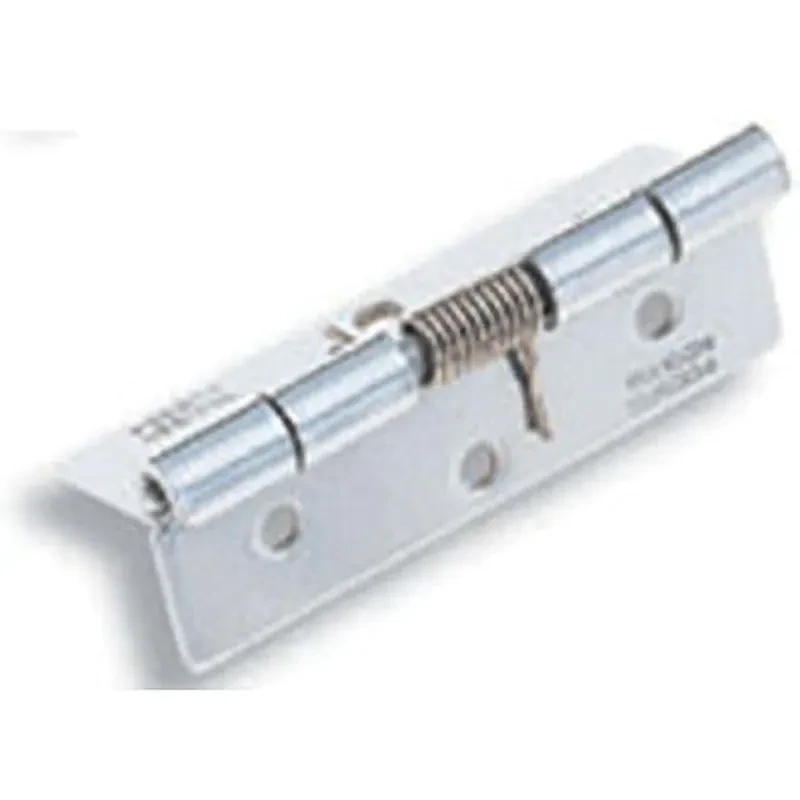

Powerful Spring Pressure Type B-1046.
